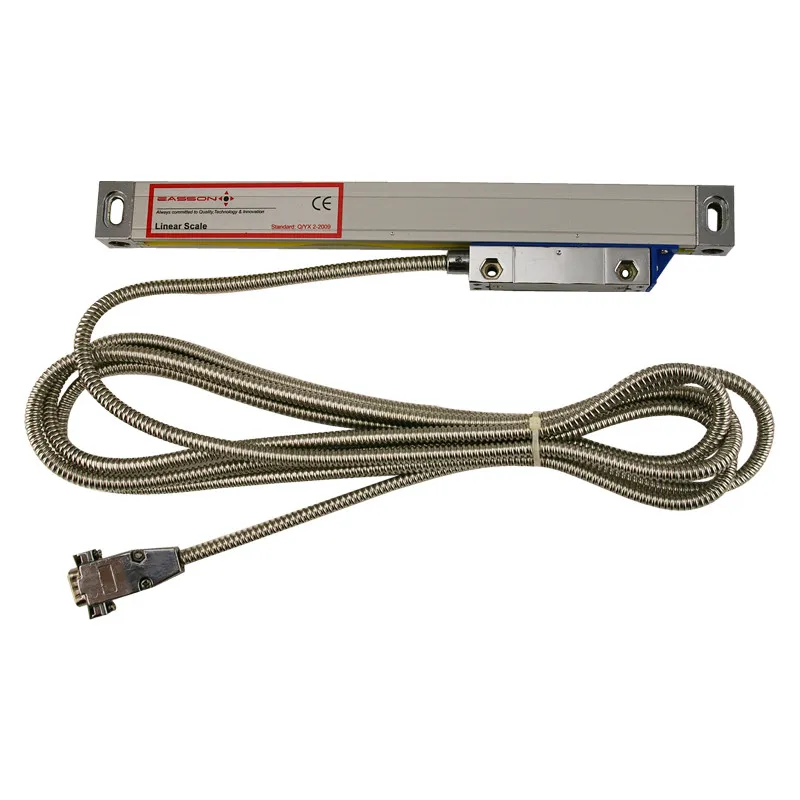

The Easson GS10 precision optical glass grated scale
Comprised of a rigid aluminium extrusion with slotted end blocks for simple adjustable mounting

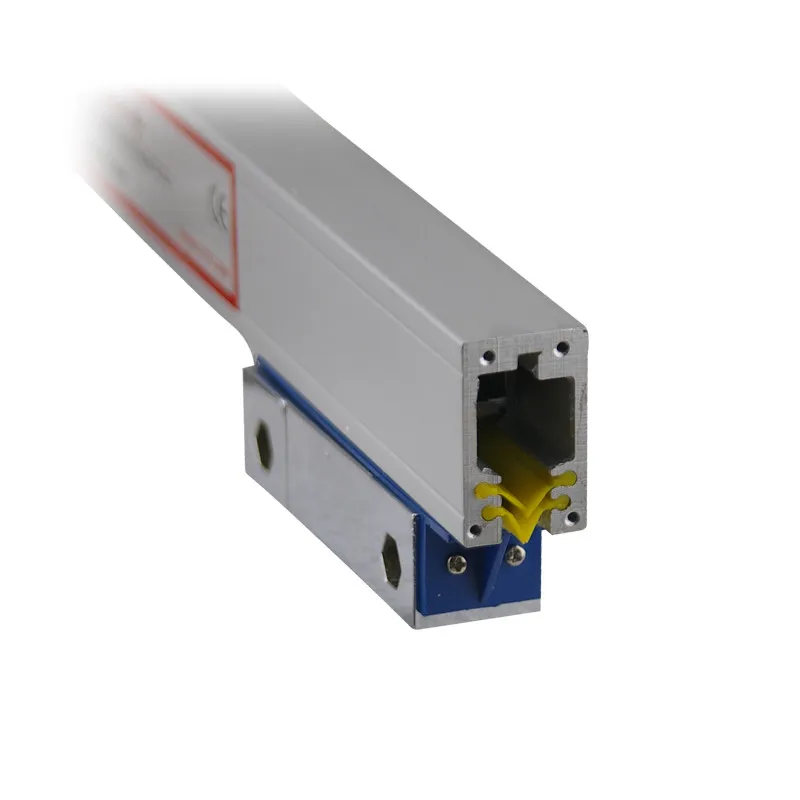

The encoder beam features a double layer lip seal to give extra protection from contamination

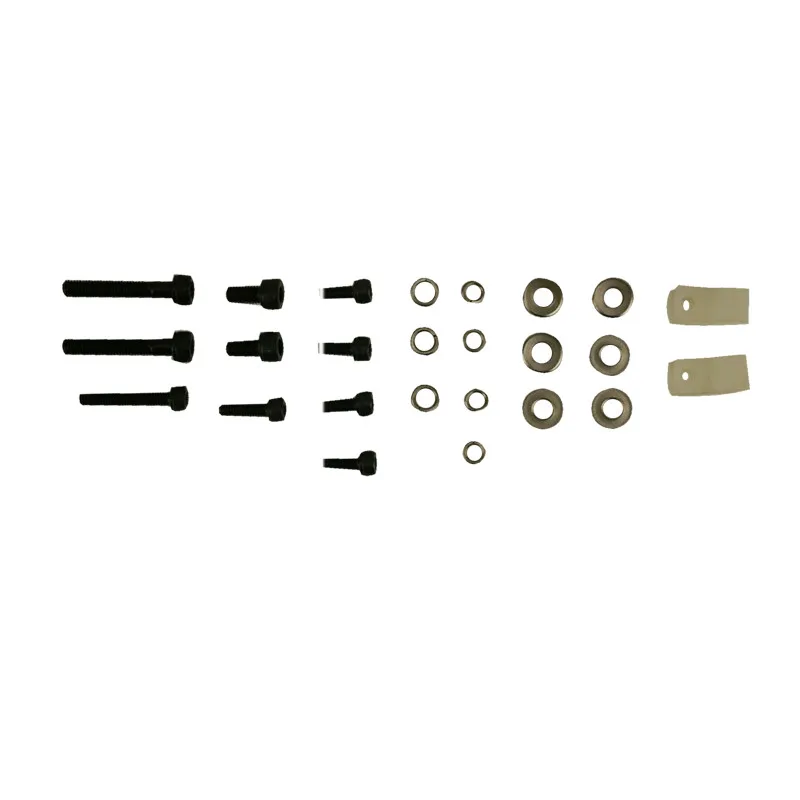

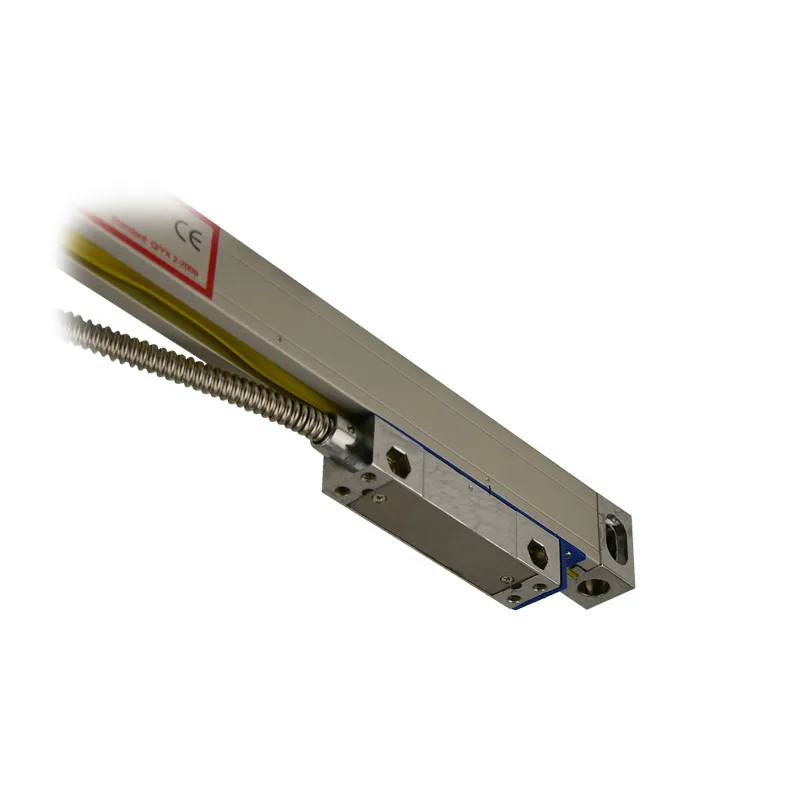

The reading head offers several mounting points for through hole or easy attachment to brackets and additional mounting hardware
Pre-fitted with armoured cable and connector
Additional interfaces are available to combine axis or convert the output to suit other manufacturer's equipment

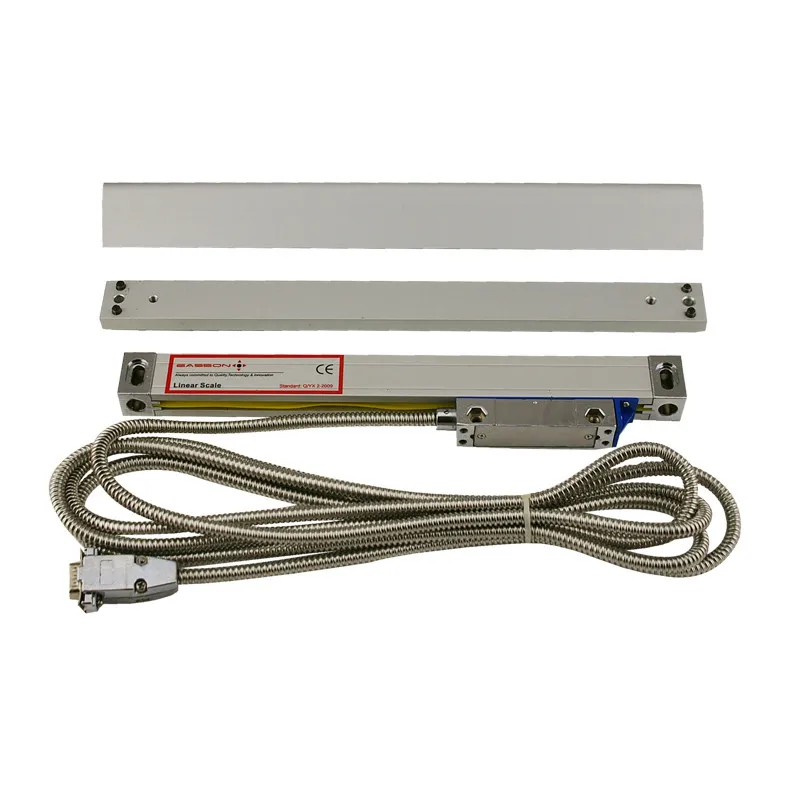

Supplied with a mounting spar, with jacking screws for mounting on a un-machined face or tapered surfaces
A separate over cover is also included to provide additional protection from coolant ingress and external impacts
For compatible display consoles please check the display console compatibility guide below
Please feel free to contact our technical staff for assistance
Machine-DRO History
- A division of Allendale Electronics, a family run British company founded in 2004. Our roots are firmly based in the UK, with a head office, engineering and inspection department at our works in Hoddesdon, Hertfordshire. We pride ourselves on being a measuring tool specialists offering tools, services, advice and expertise to our end customers and international distributor network
KEY SPECIFICATIONS
Reading Length - 400mm (15 3/4")
Resolution - 0.005mm
Encoder Type - Optical
Encoder Output - TTL (A, B and Z) Quadrature
Cable Type - Flexible Armoured
Cable Length - 3 Metres
Protection - IP53
