金信通FTTH 1GE 3FE WiFi（2.4G&5G）双频CATV光纤网络4端口华为最佳价格便宜Gpon Epon Xpon Gepon 5g光纤ONT中国供应商工厂ONT

Preview

基本信息产品详情证书

基本信息

型号（NO.）	KXT-XPE650
接收波长	1490纳米
使用	FTTX
尺寸	194×152×32 m
比率	上行链路速度 1.25 千兆每秒，下行链路速度 2.5 千兆每秒
接收灵敏度	小于 -27分贝毫瓦
输出光功率	-1分贝毫瓦至+4分贝毫瓦
电源供应	12伏特/1安培
网络	WiFi，4G
最大谱比	1比128
传输波长	1310纳米
保修时间	两年
包装	纸箱
运输包	纸箱
商标	康莱特
起源	中国广东
商品编码	8517622990
生产能力	每周1万件
包装尺寸	30.00cm * 30.00cm * 5.00cm
包装总重量	2.000kg 千克
包装大小	30.00厘米×30.00厘米×5.00厘米
包装总重量	2.000kg 千克

产品详情

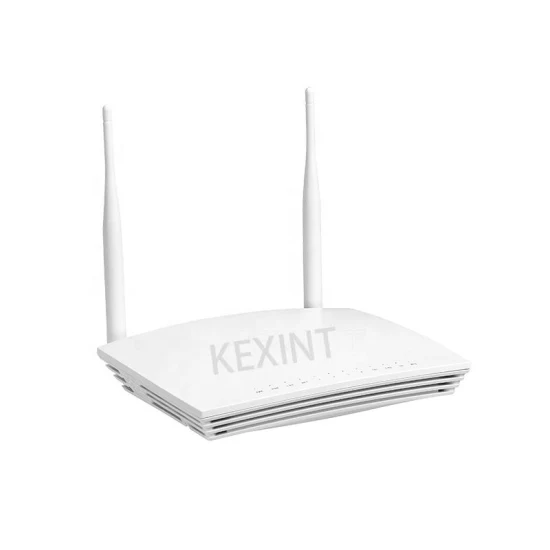

Product Description

Preview

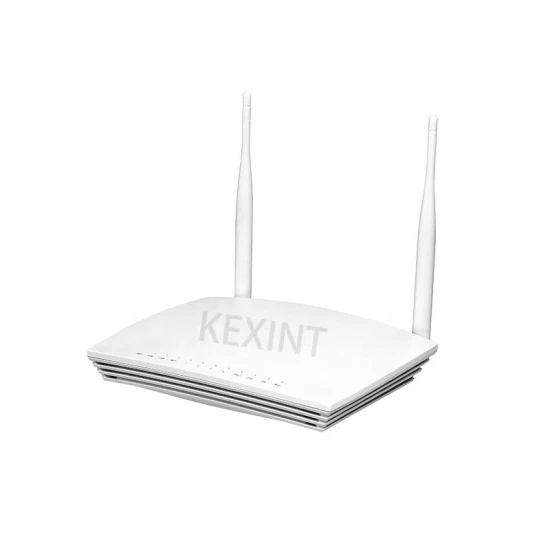

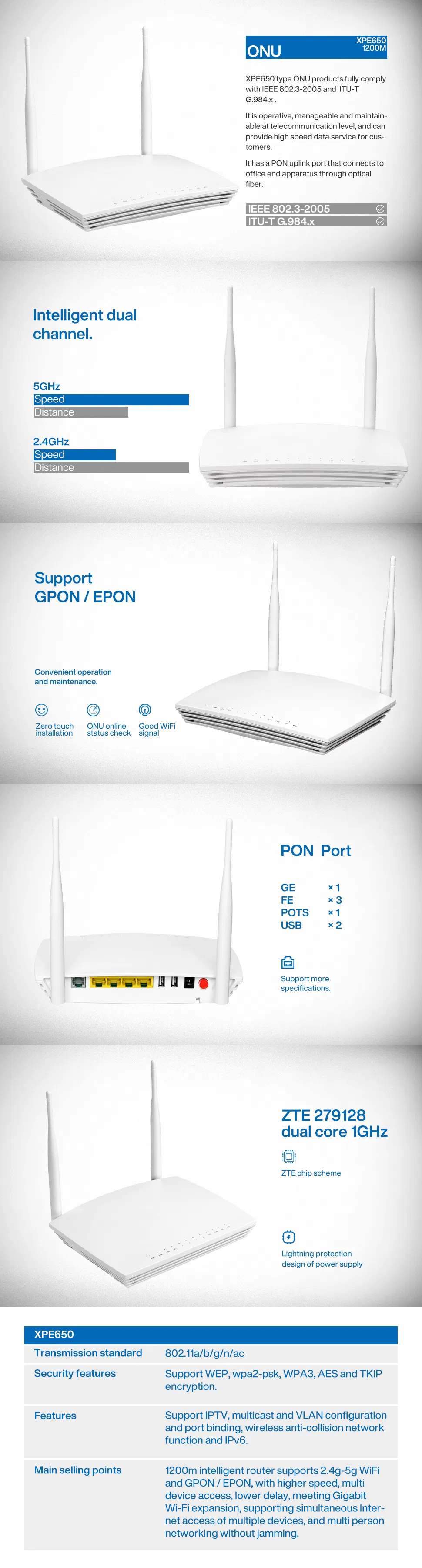

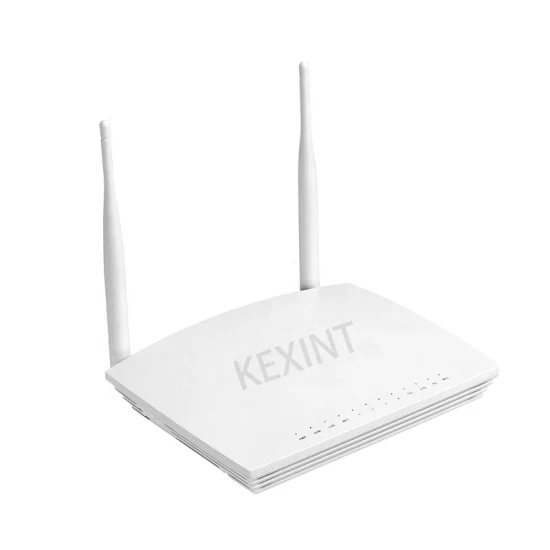

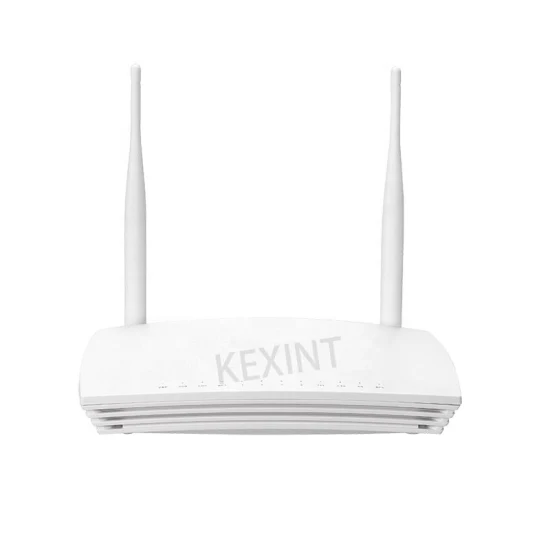

XPE650 type ONU products fully comply with IEEE 802.3-2005 and ITU-T G.984.x . It is operative, manageable and maintainable at telecommunication level, and can provide high speed data service for customers. It has a PON uplink port that connects to office end apparatus through optical fiber.
Data parameter
DDR
512M
FLASH
2GB
Optical fiber interface
1 SC / APC fiber port
Ethernet interface
1 x 10 / 100 / 1000m adaptive port (RJ45)
3 x 10 / 100M adaptive ports (RJ45)
Telephone interface
1 2-core telephone port
Wireless WiFi
2 external antennas
IEEE 802.11b/g/n compliant
2.4GHz wireless network
IEEE 802.11a/n/ac compliant
5GHz wireless network
USB port
2 USB 2.0 port
Product features:
Comply with ITU-T g.984 standard
Comply with H.248, MGCP and SIP protocol standards
Comply with 802.11 n / B / g protocol standard
It supports layer 2 switching of Ethernet services and line speed forwarding of uplink and downlink services
Support frame filtering and suppression
Support the standard 802.1Q VLAN function and VLAN conversion
4094 VLANs supported
Support dynamic bandwidth allocation
Support PPPoE, ipoe, bridge and other services
Support QoS, including service flow classification, priority marking, queuing and scheduling, traffic shaping and traffic control
Support IGMP proxy and IGMP snooping
Support Ethernet port speed limit, loop detection and layer-2 isolation
Support power failure alarm
Support remote reset and restart functions
Support the function of restoring factory parameters
Support data encryption
Support status detection and fault reporting
Support power lightning protection

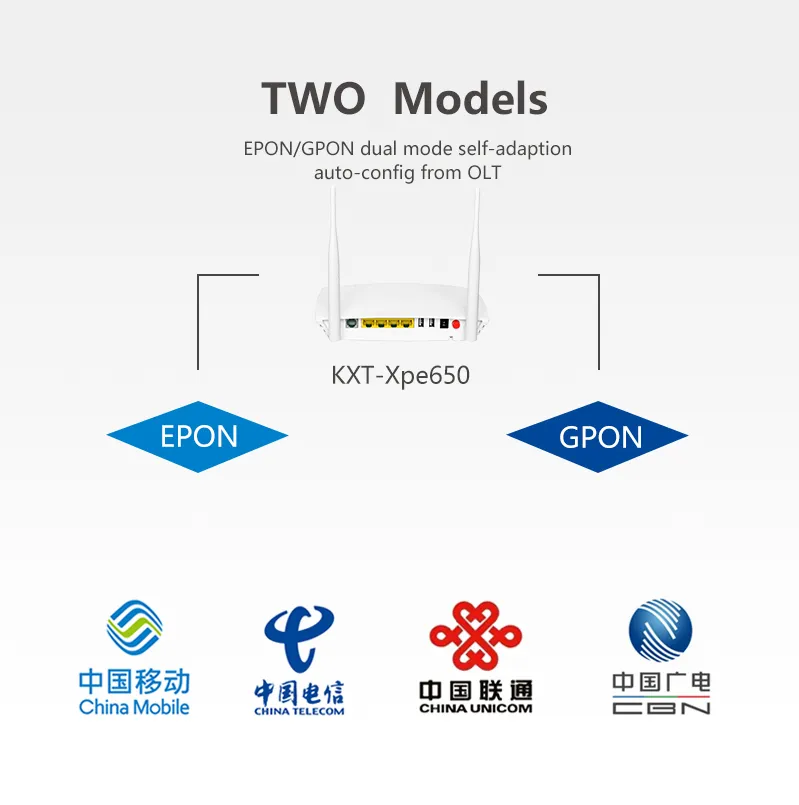

support GPON / EPON dual mode

Preview

Specification
item
value
Model Number
KXT- XPE650
Type
ONU
Network
wifi, 4g
Power Supply
12V / 1A
Receiving Sensitivity
< - 27dBm
Size
194 * 152 * 32 mm (L * w * h)
Output Optical Power
- 1 ~ + 4dbm
Receiving Wavelength
1490 NM
Maximum Spectral Ratio
1:128
Transmission Wavelength
1310 nm
Rate
uplink 1.25gbps, downlink 2.5Gbps
Package
Carton Box
Operating temperature
- 40 ° ~ +70
