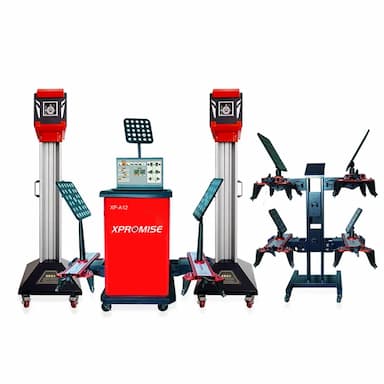

Truck Wheel Alignment/Automotive Equipment/Truck Wheel Alignment System
XP-A12

1. 3D cameras
alignment-Based on the car and not influenced by the platform2. Measurement system-equipped with double digital cameras
and four target
disk, supplying
revolutionary measurement
mode3. Target disk-There is
no electronic components and connection lines on the target disk, so the wheel alignment will not has
a component failure problem.4. Equipment Calibration - once calibration
before delivery, workable immediately
after installation, no need for
periodic calibration5. Measurement progress-no need to compensate
for steel ring ,
the precise eccentric compensation will be just once pulling
or
pushing the car back and forth6. Software system-Easy to operate, complete conventional
basic parameters
including two minutes ,significantly faster than conventional aligners7. Daily Maintenance-Easily maintenance
and
download freely
upgrade
for the model data
Software function:
Basic function: camber,
caster, Kingpin Inclination, toe angle, set back, Thrust Angle and so onExtended function: axis deviation, wheel deviation, monowheel, auto lift measurement function, steering wheel square, locating platform levelness detection.
Accessories

Product Measurement Principle

The machine vision system can automatically recognize the position of the targetdisc and target probe installed on the wheel under test, so as to calculate its geometricposition in space with a high degree of accuracy
Product Parameters

Visual positioning
Industrial camera
3D modeling
Wifi communication
Low power consumption
High speed
Stable signal
Rim compensation
Adjustment-free
Automatic compensation
Measurement mode
Whole vehicle positioning
Measurement benchmark
Product Features

1.Higher accuracy and more powerful functions. Its accuracy can be accurate to 0.1mm/0.01° its function can not only realize all the traditional parameters, but also can measure the frame parameters, and easily realize many functions that CCD and laser locator cannot complete
2. The operation is more convenient. The measurement is not affected by the level of the platform; it only needs to push the car or the supporting wheel mode to complete the measurement of all parameters; it can be moved and used at will
3. The failure rate is extremely low. The target board has no electronic components, no battery no data transmission, and only serves as a reflection of the image; the main frame is a metal frame, and the column is a cast body, which is resistant to corrosion and pressure; the computer is mostly brand high-end configuration, To adapt to large data processing, the performance is more stable
4. Dual mode measurement: you can select drive axle measurement or drive axle measurement mode

HD industrial camera (8 million)
The camera shooting software processes the images received from the camera and recognizes the target from the frame images. After that, the machine vision subsystem will calculate the three-dimensional coordinates of each space target. These three-dimensional coordinates will be used to calculate the positioning value of each wheel. Effective range: 10m
Target plate(Laser engraving)

Clamp
Adapter device to quickly find the center of the steel ring; Card loading range: 16-24 inches
Turntable
The supporting device removes the friction between the tire and the ground during the rotation.Bearing capacity: 10 tons

Factory Tour

Trade Info
1. Why should I choose our product?
There are several reasons you should strongly consider purchasing our product:
*Top raw materials from only the finest plants
*Only professional cost-effective equipment
*Low prices with high quality revenue producing products
*Increase productivity for your customers( Your customers gain more, they will enjoy buying from you.)
*The best customer service. Quick reply within 24 hours and more.*Great Warranty2. How safe are your product?
Our product
have been tested and CE certified for safety. They also meet the American and Australian Standard.3. Should I keep repair and replacement parts in stock?
Yes, most all commonly required repair and replacement parts should always keep in stock.4. Are your product
designed for commercial use?
All of our product can be used in commercial applications without any problems.5. Do you offer any custom designs?
Yes,we provide OEM/ODM services to top range partners. Produce a superior product for you by your designs.
