Surface/Underground Hydraulic Diamond Core Drilling/Portable Coring Drill/diamond core drill/PDC drill/geological core drill/exploration drill

F100/F200/F300
Man-portable Drill Rigs
OVERVIEW:
GRANDPLAN
offers a full range of man-portable drilling rigs - the Frontier series.
Frontier drills are modular design and made of high-strength aluminum fabrications, ensuring high standards of toughness
while greatly reducing the weight of rig. The max component weighs 160Kg-180Kg, which is convenient for worksite
mobilization by manpower.
The drill's compact structure makes sure that it can be assembled within a 3mx3m or 4mx4m platform and dismantled easily
in the field. With optimized engineering, the Frontier drills can be disassembled in 45 minutes and re-positioned in a half shift.
The Frontier drills adopt energy-saving and noise-reduction techniques. It is not only allowing the operator to feel
comfortable, but also reduces the interference on the surrounding environment. Frontier drills can be easily transported by
manpower and no roads will be needed.
As footprint trace is limited and restoration of the environment is relatively simple, the influence on the natural environment is very small.
When road-access is limited, the drills can be handled along the small trails by manpower. This gives the Frontier drills
outstanding advantages in a variety of complex terrain conditions.
FEATURES:

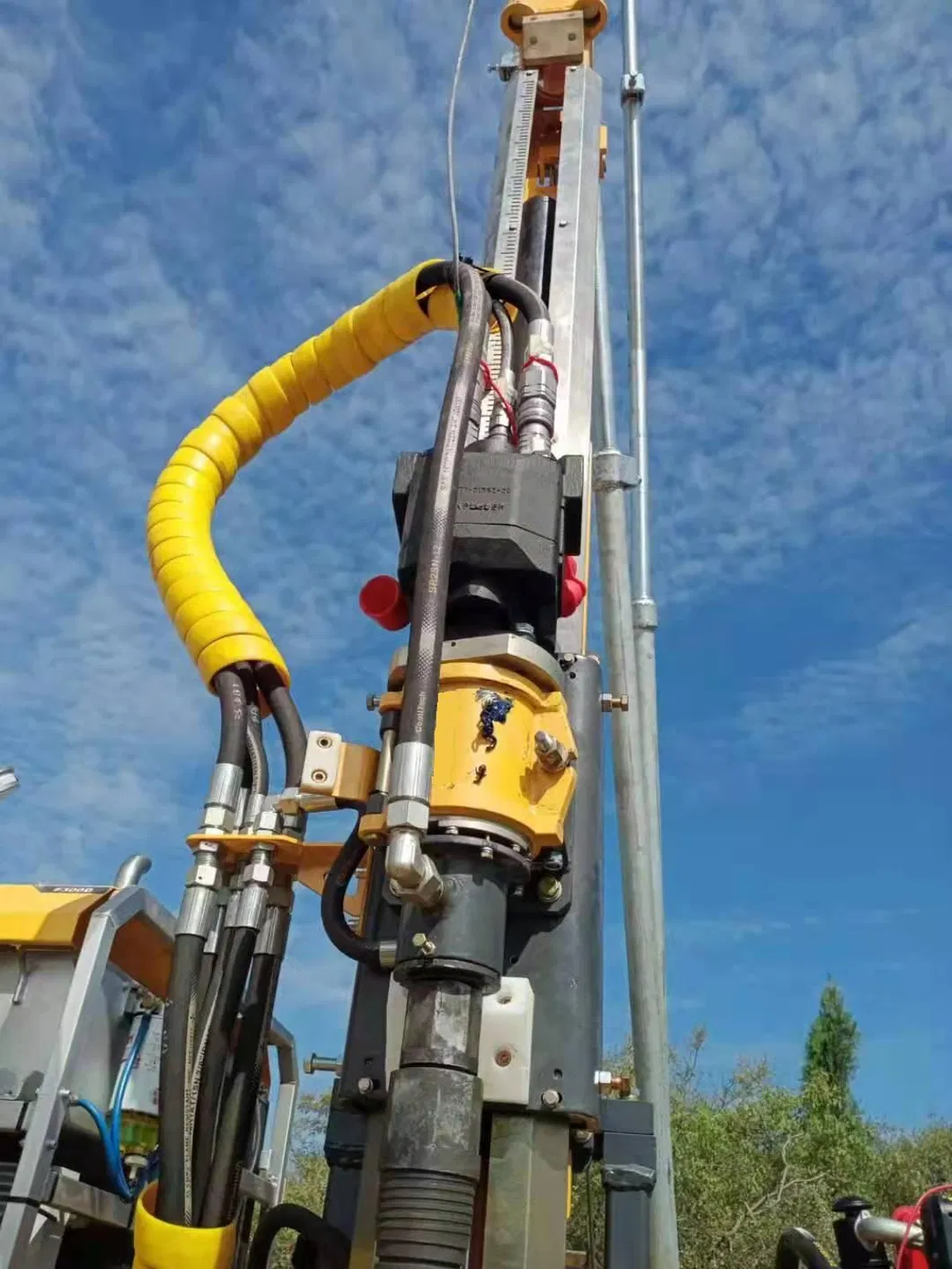

• The drill head is compact, top-drive and lightweight design. With the use
of high and low speed hydraulic motors, the head is suitable for variable
drilling conditions and reliable to deal with different torque need.
• The control panel compact design consisting of all the power and
hydraulic control systems and operation devices.
• With a unique design in the industry, the head carriage enjoys a feature
to realize real-time adjustment on the gap between the feed frame and
the wearing plates, anytime when need, allowing constant feeding
stability. Change of the small-sized wearing plates is extremely easy
from outside of the carriage with no need to touch the major parts of the
component.
• The new HD (heavy duty) Rod holder is dual-direction hydraulic drive,
fast clamping response, lightweight and flexible for operation.
• The new HD (heavy duty) Water swivel is compact design and coaxial jet
style, offering high wear resistant and smooth operation.
• With GRANDPLAN customized TW series of thin-wall drill rods, the Frontier
drills can give full performance to the advantages offering increased
drilling efficiency, larger core diameters, and higher recovery rate.
✓ Man-Portable
✓ High efficiency
✓ Environment Friendly
Technical Specification
