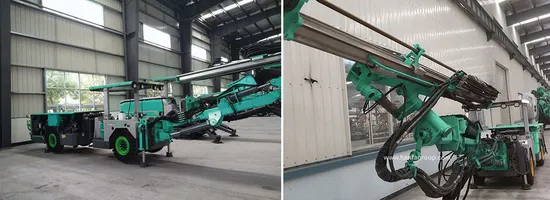

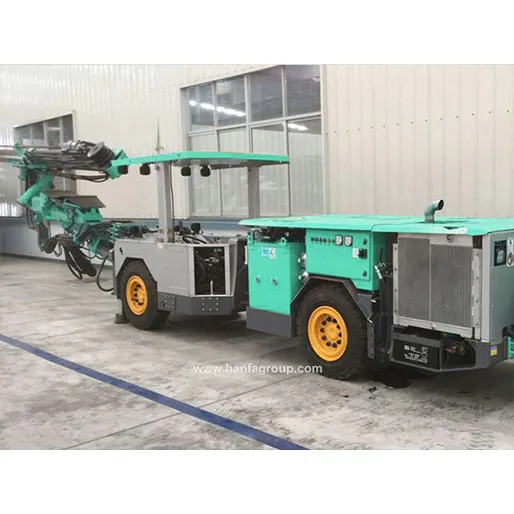

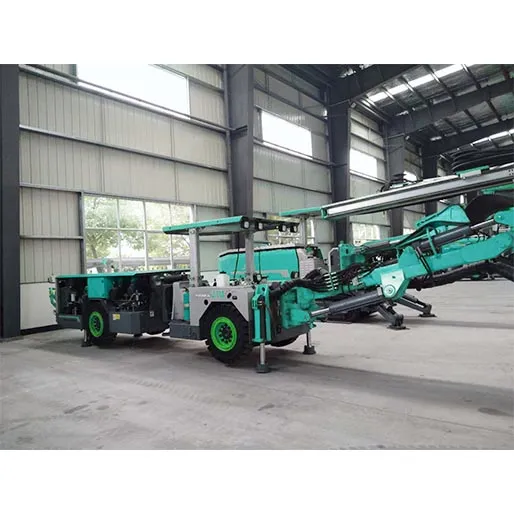

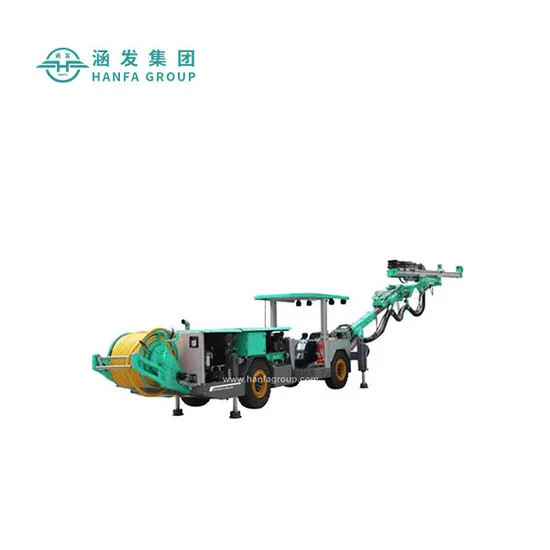

Hanfa HFJ18 drilling jumbo for narrow & low mining and tunneling. Directly controlled hydraulic system & 4-wheel driven articulated steering for rough road condition & fast approaching & withdrawing from working face. High efficiency drifter for shortening working time & lowering down energy consumption.HFG-18J, the best choice for narrow vein & tunnel conditions.
Max. working coverage:30m²
Technical Features1. Drifter
HF104M drifter with Dual buffering for longer service life of drill tools.2. Multiple coordinate boom
Double triangle floating support boom for accurate hydraulic parallel holding of the boom in all directions.3. Feed
(1) Heavy duty aluminum alloy feed beam with high bending and torsion resistance for long service life.(2) The beam surface covered by stainless steel wrapper and lined by synthetic wear resistant pads between moving parts for longer service life.4. Control system
(1) Automatic hydraulic drifter control system with auto collaring, percussion auto stop if lack of lubrication and water, auto controlled feeding by rotation pressure and auto controlled percussion by feed pressure, and auto anti-jamming.(2) Dual speed tramming, auto slowing down and torque output increase to prevent engine from stopping if overloaded while climbing.5. Chassis
(1) Strong articulated and heavy duty chassis with four-wheel drive.(2) Driven by 4-cylinder diesel engine.(3) Four hydraulic jacks for stable positioning.(4) Dual circuit pedal brake system with emergency stop control for safe braking when one side oil pipe or even both damaged.6. Other configuration

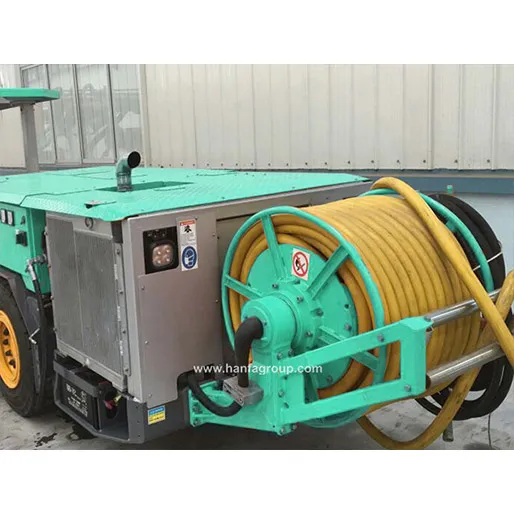

(1) FOPS and ROPS height adjustable safety canopy.(2) Cable reel
(3) Electric driven piston compressor
(4) Electric driven water booster bump
(5) Working lights
Modular design, be convenient for going down the well by machine dismantle
1. Dimensions
2. Turning Radius
3. Work Coverage
Product Parameters
Model Specifications
HFJ18
Hole range ( mm )
41 - 89
Hole depth ( mm )
3,440
Rod size ( mm )
( R32, R38, T38 ) 3,700
Drifter
Model
HF104M
Impacting power ( Kw )
20
Max. torque ( N.m )
752
Impacting frequency ( Hz )
60
Hydraulic system pressure ( bar )
200
Rotation speed ( rpm )
0 - 388
Weight ( Kg )
170
Air compressor
Type
Reciprocate piston compressor
Pressure ( bar )
8
F.A.D ( m3 / min )
0.36
Diesel engine
Model
Yuchai YC4DK100-T301 Stage IIIA
Power ( Kw )
73.6
RPM ( r / min )
2,400 rpm
Electric motor
Maker
Jiangtian
Power ( Kw )
55
RPM ( r / min )
1,475
Frequency ( Hz )
50
Voltage ( V )
380
Feed
Model
3,700
Total length ( mm )
5,400
Feed travel ( mm )
3,440
Extension length ( mm )
1,600
Max. feed force ( KN )
15
Tramming
Type
Hydraulic driven Four wheel driven
Tramming speed ( km / h )
11.5 / 5.6
Max. traction force ( KN )
42
Gradient ( ° )
20
Chassis floating angle (°)
±15
Tire
8.25R15
Tramming brake
Hydro-static brake & dual loops, 4-wheel brake
Emergency stop & parking brake
SAHR
Ground clearance ( mm )
300
Boom
Type
Multiple coordinates
Nos. of booms
1
Parallel mechanism
Complete
Boom extension length ( mm )
1,200
Boom left / right swing angle ( ° )
±35
Boom lifting angle ( ° )
-1.7
Feed tilt angle ( ° )
+ 3 / - 90º
Feed turning angle ( ° )
360 ( screw type )
Chassis
Type
Articulated
Articulated angel ( ° )
± 40
Hydraulic support legs
4
Cab
Rotating driver seat
Turning system
Hydro-static power steering system
leveling meter
yes
Horn
yes
Start warning
yes
Reverse warning
yes
Approach / departure angle ( ° )
17 / 15
Drifter lubrication warning
yes
Fuel tank capacity(L)
60
Hydraulic system
Form
Variable
System pressure( bar )
240
Hydraulic tank capacity( L )
180
Pump set unloading start
Automatic
Oil temp. indicator
Yes
Low oil level alarm display
Yes
Functions
Directly controlled drilling system, with auto collaring, feed pressure control impacting ( FPCI ), and auto anti-jamming functions
Electric system
Start up mode
Star - delta unloading start
Voltage(V)
380 / 660 / 1,000
Control voltage ( V )
24
Lighting lamp
8 x 70 W, 24 V
Cable reel capacity ( m )
70
Impacting timer
Yes
Digital voltammeter
Yes
Phase order indicator warning
Yes
Residual current device
Yes
Thermal overload protector of electric motor
Yes
Water system
Booster pump
Centrifugal
Power ( Kw )
1.5
F.A.D ( m3 / h )
2
Pressure ( bar )
12
Min. water inlet pressure ( bar )
2
Cooling system type
Water cooled
Machine weight ( kg )
≤ 11,000
Dimension ( L xW xH ) mm
11,890 x 1,450 x 1,400 / 2,100 mm
Tramming turning radius ( mm )
Inner R 2,800,Outer R 4,900
Working face dimensions W x H ( m )
6 x 5.7
Max. working area ( m2 )
31
Optional
Short / long feed beam
Exhaust purification device
Electric hydraulic oil filling pump
Cummins engine
RHS
