NPK Compound Fertilizer Pellet Mill Dry Granulation Granulator Roller Press Machine

Our company
offers a
wide
range of machine sizes for high pressure granulating, which covers nearly all requirements of the clients.If your production is low,you can choose small type machine, if you have high production, you can choose one or more sets of machines according to your requirements.DH series granulator machine is suitable for almost kinds of dry powder with moisture less than 1%.
Working principle
1. We use mixer mix the raw material.---Mixer
2. We use bucket elevator lift the material up to the silo.----Bucket elevator and Silo

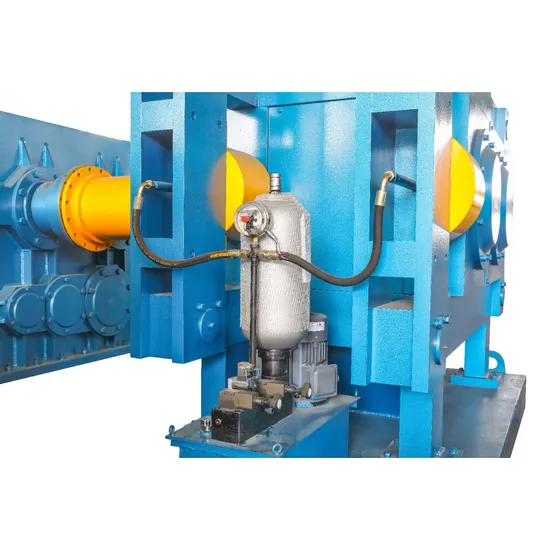

3. The DH650 granulator compress the raw material by double rollers, it mainly
depending on the mechanical pressure to compress the dry powder, so the hardness
of granular is very high.---------DH650 granulator (including three parts: dosage screw
feeder, forced feeder and flaking machine.)
4. Then we get the bar shape products, just as following:
So we need a crusher to crush the bar shape products into 2-4mm irregular granules.
----Crusher
(you can decide the size of granules, we will design the size of crusher
mesh.)
5. Finally, we will use rotary screen to sieve the final products, the unqualified products,
such as dust, big granular and very small granular will be recycled for the next time
granulation process. You will get the qualified 2-4mm irregular shape granules
successfully.--------Rotary Screen
6. Next we use the second time rotary screen, the purpose is we want to get better result
of irregular shape granules after second time screening, the appearance of irregular
shape granular will looks more beautiful. -------Second Time Rotary Screen (if you
don't need this, you can delete this process.)
7. The last step is automatic packaging machine. This machine will help you pack the
final granular into bags. ----Automatic Packaging Machine
Product Parameters
Technical Parameters
Applicable examples
Parts of Granulation Line
Parts of one whole set of granulating line
In addition to the pellet machine,we can also provide the whole supporting equipment of granulating process to help you finish the granulating much better.
Such as the mixer,feeding machine,the crush machine,the screening machine,drying/cooling machine,conveyor and so on.
Control cabinet
It is composed of the electrical components such as electric control box, frequency conversion controller, ammeter, voltage meter, light, button switches, voltage switch and so on. All the electrical equipment is controlled and operated concentratedly.

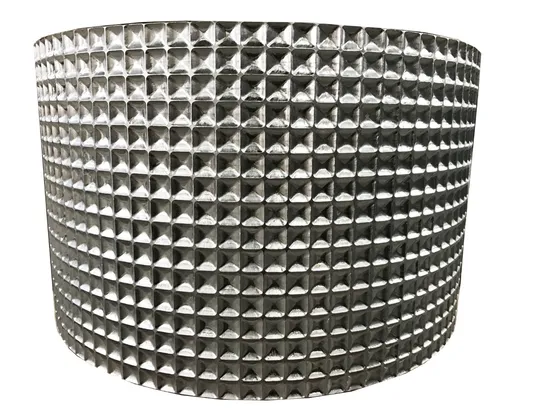

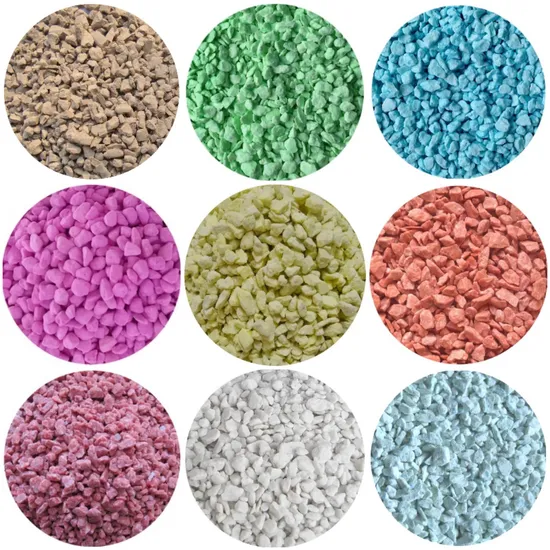

Examples of finished products and
various roller
Layout of Fuyi granulating processes
We can design different diagram for different clients, we need to design the layout according our clients provide us some basic information about the size of their factory, and how do they want to place the equipments. Our target is making the process more simple , more easy, more economic and more effective.

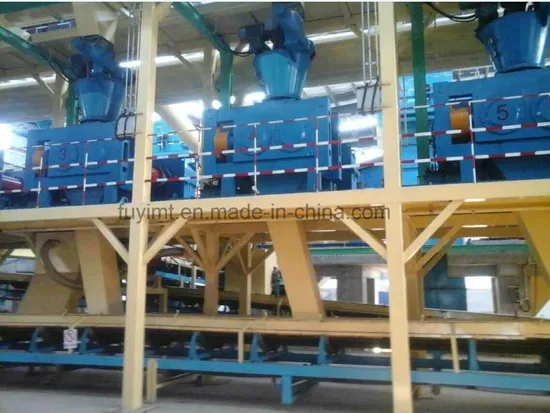

Customers Installation Site
We welcome customers to visit our factory!!!
Services
Fuyi has designed and manufactured roller presses and equipments for briquetting and compacting NPK fertilizer, powder, chemical, minerals, etc, since 2006. We take care of green field projects as well as of existing plants. Our services cover material tests, process layout, engineering, and supply of complete granulating plants or key equipments, guidance of installation and commissioning, training.
Also, the company manufactures and supplies equipment for drying equipments and dust collector machines.
Extensive experience and best quality production facilities guarantee a smooth workflow from start to finish.

Q:Do you provide the installation service after ordering your machines?
A:As for the single machine, we provide the users instruction.As for the production line,we provide the professional construction drawing,
and arrange
the engineer guide the user install the machines.Help the user train the skilled workers.
Q:Can you be sure the wearing parts supply in future?
A:We promise to provide the wearing parts to user in future.
Q:How about the warranty of our machines?
A:Our production line, and single machine's warranty is 1 year.
Q: Do you allow us to visit your factory for try some machines?
A:We warmly welcome the clients to come to our factory for trying each machine.
Q:Can we see some fertilizer plant with your machine?
A:We can take the customer to visite some fertilizer plants with our equipements.
