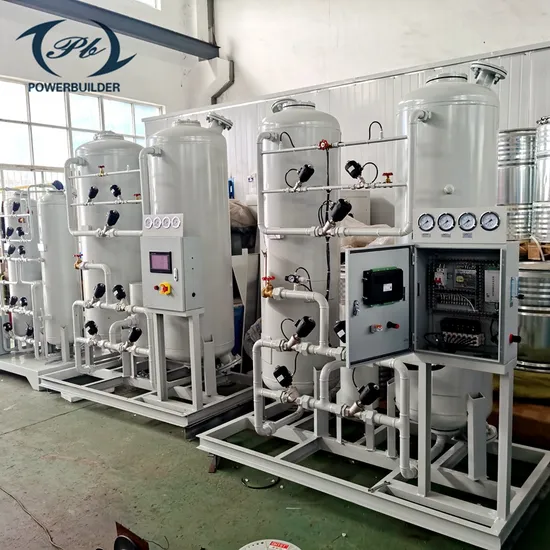

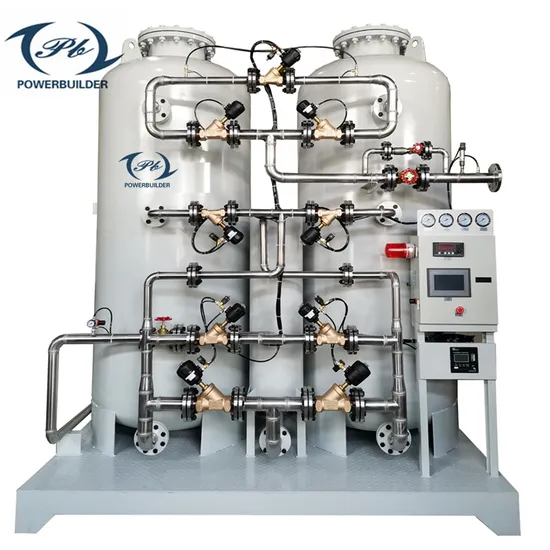

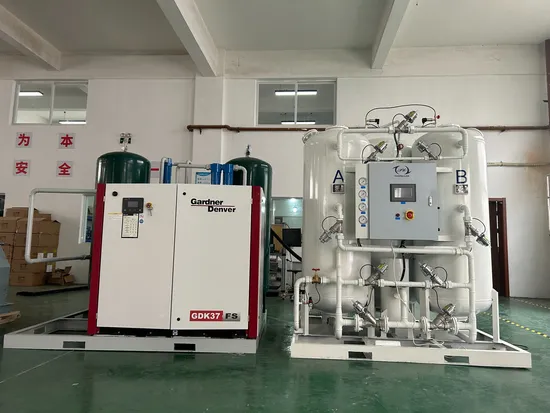

Easy Installation 5~150Nm3/h Medical Industrial Use Psa Oxygen Gas generator
3. PB PSA Oxygen Generator Model Select
4. Working Principles for PSA Oxygen Generator
Air contains 21% Oxygen, 78% Nitrogen, 0.9% Argon and 0.1% other trace gases. Oxygen plant separates this oxygen from Compressed Air through a unique process called Pressure Swing Adsorption. (PSA).The Pressure Swing Adsorption process for the generation of enriched oxygen gas from ambient air utilizes the ability of a synthetic Zeolite Molecular Sieve to absorb mainly nitrogen. While nitrogen concentrates in the pore system of the Zeolite, Oxygen Gas is produced as a product.Oxygen generation plant's use two vessels filled with Zeolite Molecular sieve as adsorbers. As Compressed Air passes up through one of the adsorbers, the molecular sieve selectively adsorbs the Nitrogen. This then allows the remaining Oxygen to pass on up through the adsorber and exit as a product gas. When the adsorber becomes saturated with Nitrogen the inlet airflow is switched to the second adsorber. The first adsorber is regenerated by desorbing nitrogen through depressurization and purging it with some of the product oxygen. The cycle is then repeated and the pressure is continually swinging between a higher level at adsorption (Production) and a lower level at desorption (Regeneration).-Standard Features -
Control system with SIEMENS touch operated panel
Automatic start/stop
Built in purity analyzer for continues monitoring
Reliable- built for uninterrupted operation
Designed for dynamic pressure loading
Robust design, piping from Stainless Steel

-Optional Features-
Molecular sieve moisture protection
GSM modem (remote start/stop, status SMS, alarm warning SMS)
Flow meter with totalize
Oxygen dew point sensor
Temperature sensor
Purity and pressure control
Audio/visual alarm
Modbus TCP/IP connection
Remote control system
Data-logging (saved on memory card)-Applications-• Aquaculture• Feed Gas for Ozone Generators
• Glass blowing
• Leaching
• NOx Reduction for Fuel Burners
• Oxygen Lancing
• Welding, Brazing
• Wellness­­­­­-
Quality Control Process
-PB use ERP management system, Which help plan and manage order information, from customer order to procurement, production, cost, inventory, distribution, transportation, finance. It universally helps to control and trace every process internally!-
Our Service-
1. Setting trace file for every sold product, quarterly survey for every sold product.2. Providing remote instruction and training for free.3. Providing on-site services and repairs for free during warranty period 4. Spare parts and on-site service would be charged with best price after warranty period.5. 7*24 hours online service for free, solution within 48 hours.6. If customer required, assigning experienced after-sales engineer for on-site service with 7 days. (Visa apply should be considered)-
After Sales Support -Warranty­­­­The Guarantee/Warranty Period shall be a
period of twelve months after on-site startup &
commissioning or eighteen months after shipment, whichever occurs first.If any trouble or defect, originating with the design, material, and workmanship or operating characteristics of any Goods, arises at any time during GUARANTEE/WARRANTY period, PB shall, at his own expense and as promptly as possible, make such alterations, repairs and replacements.On-Site Support
PB can do paid services of on-site startup, commissioning, installation supervision, training, by providing purchaser with the services of qualified
English-speaking
engineer at step
shall obtain all permits and l­­­­­icenses required to perform the services under this Agreement.FAQ:
1. Are you manufacturer or Trade Company?
We are the
manufacturer of
Medical Oxygen Plant and Oxygen Concentrator, founded in 2015, located in Shanghai Pudong district.2. How to get a prompt quotation of Medical Oxygen Plant for Cylinder Filling?
When you send the inquiry to us, please kindly send it with below information.­­­­­
1) O2 flow rate: _____Nm3/h
2) O2 purity: _____%
3) O2 discharge pressure: _____Bar
4) Voltages and Frequency : ______V/PH/Hz
5) Application(Altitudes, Humidity):
3. What's the order process ?
a. Inquiry---provide us all clear requirements.b. Quotation---official quotation form with all clear specifications.c. Contract confirmation---provide correct contract details.d. Payment terms--- Negotiable.e. Production---mass production
f. Shipping--- by sea, air or courier. Detailed picture of package will be provided.g. Installation and debugging.4. What is the term of payment?
T/T, L/C etc.

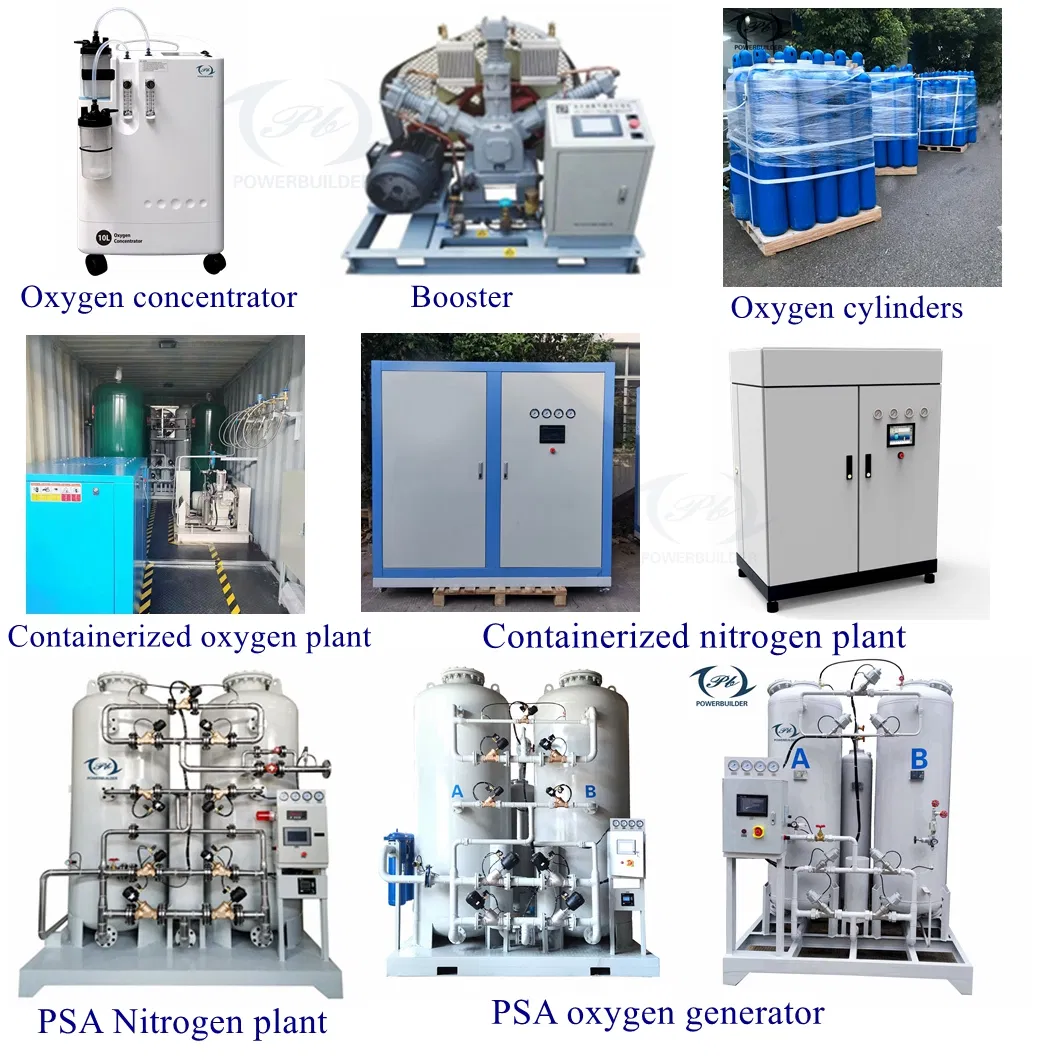

5. Other Related Products

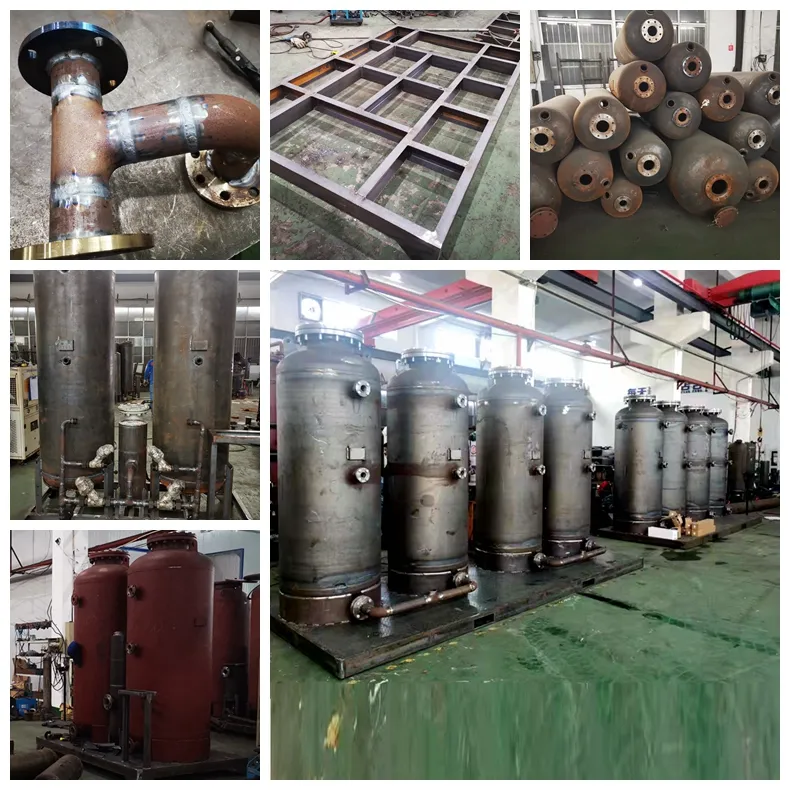

6. Factory Image

7. Packaging
Thank you for reading and looking forward further communication!
