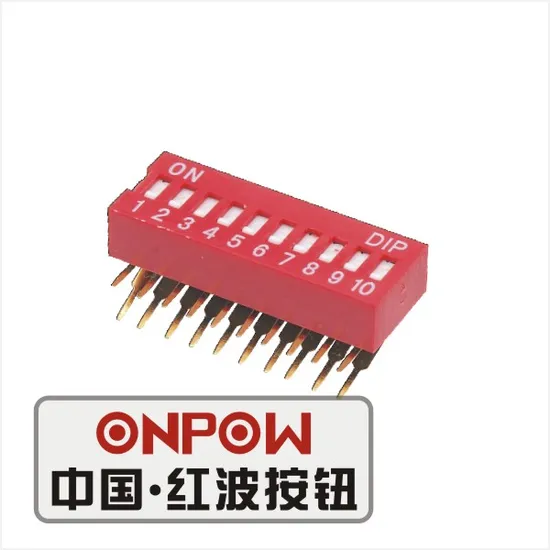

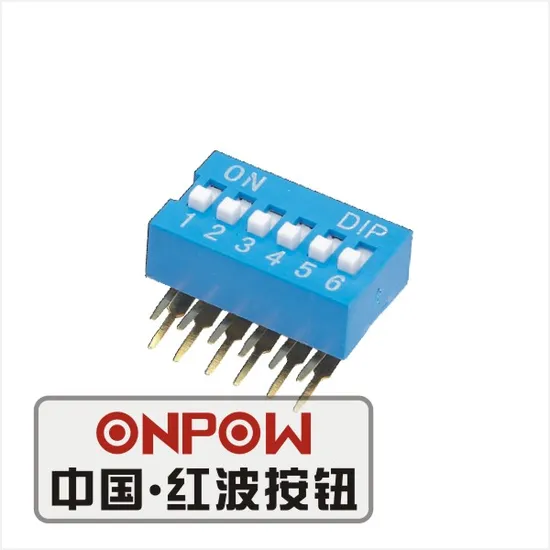

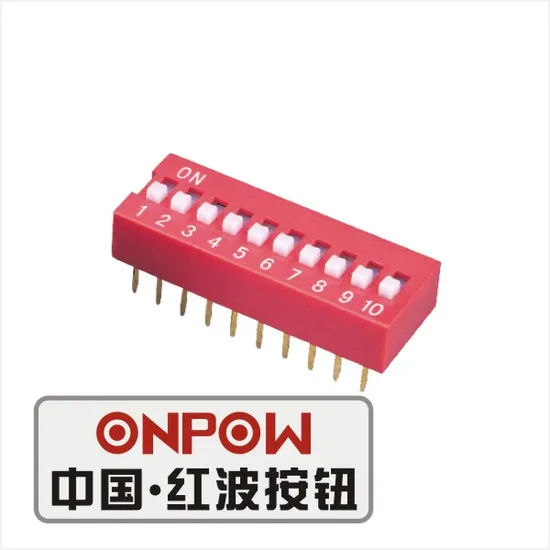

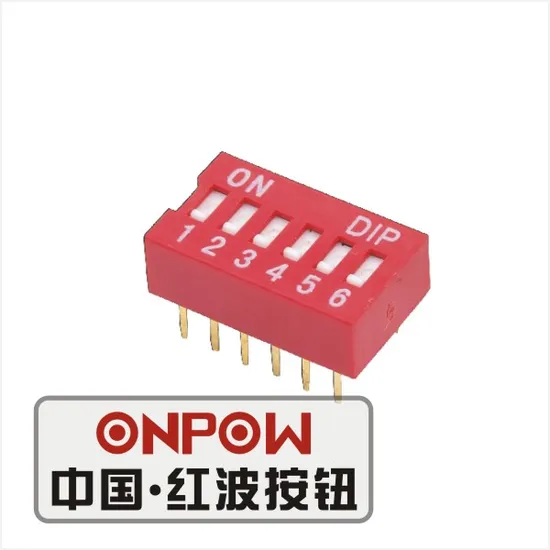

Dip
switch:
Using
excellent
heat
and
chemical
resistance
engineering
plastic.
Using
standard
gold-plated
contact
points
ensure
reliability
and
longer
Life
of
the
switch.
Have
the
advantage
of
self-cleaning
when
the
switch
in
ON-OFF
state.
Using
widely
in
manual
programproducts,
like
data
processing,
Communications,
remote
controls
and
burglar
alarmsystem.
Soldering
Information:
Soldering
iron
under
30Wand
under
350
degree
for
3
seconds
max
or
270degree
for
5
seconds
max.
Wave
crest
soldering:
240degree
within
20seconds
max,
.Keep
all
actuators
in
"off"
position
during
Soldering
and
cleaning
process.
Specifications
Contact
capacity
OFF:
25mA,
24VDC
ON:
100mA,
50VDC
Contact
resistance
Initial
50mΩ
24VDC
/100mA
After
life
test
100mΩ
Typical,
24VDC
/100mA
Insulation
resistance
≥
100MΩ
,
500VDC
Dielectr
IC
strength
500VDC
RMS
min.
Operating
force
DS/DA:
1000g
Max
DP:
400g
Max
Operation
Life
expectancy
Mechanical
3000
operations
Electrical
2000
operations
Temperature
range
operating/storage:
-25degree
~70degree

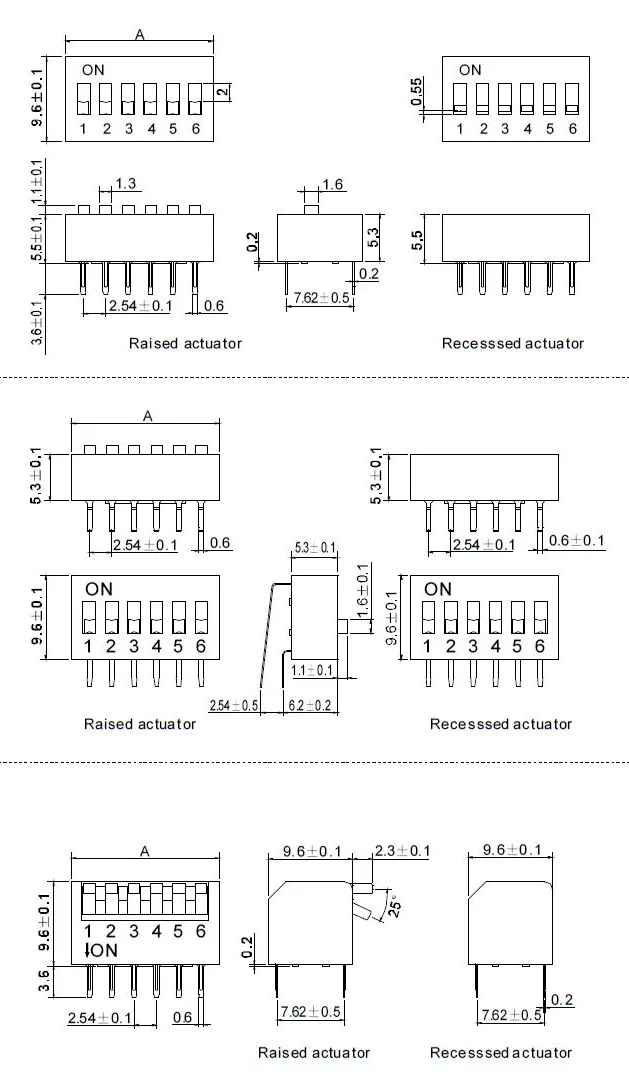

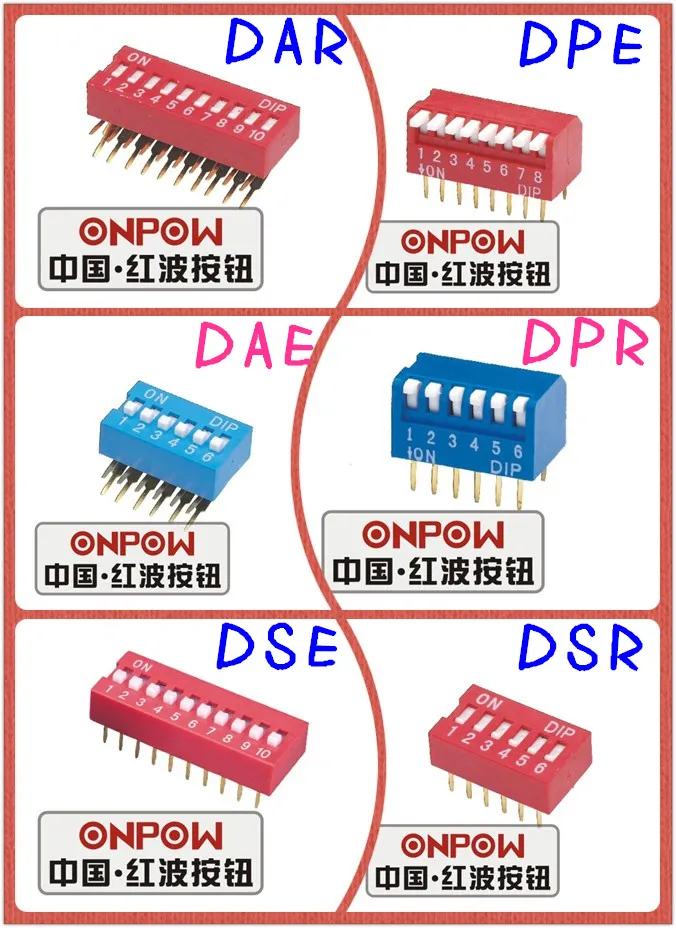

Implication of Type
NOTE:DP series only has positions of 2,4,6,8;the length of DA terminal only has one standard rating(3mm)

Pls
contact
us
for
BEST
PRICE!!
Also
we
can
meet
your
special
requirements:
1.Laser
engraving
for
different
symbol
or
Illuminated
symbol.
2.Different
metal
body
color
can
be
made,
like
Red,
Green,
Yellow,
Blue,
White,
Orange,
Golden.
3.Special
design
for
big
diameter
up
to
35mm
or
small
diameter
to
8mm.
4.We
accept
different
terms
of
payment,
like
PAYPAL,
ESCROW
and
so
on.
5.Other
special
requirement
pls
contact
Mr.Puma
(International
trade
manager)
Puma
chen
