基本信息产品详情证书
基本信息
型号编号 | SCR-6-72v 60A |
类型 | 铅酸蓄电池充电器 |
充电类型 | 电动充电器 |
原则 | 全桥全控制 |
Transformer是谷歌提出的一种基于自注意力机制的神经网络架构。 | 库珀变压器 |
容量 | 72V 60A |
颜色 | 灰色 |
重量 | 100公斤 |
包装尺寸 | 60*50*93cm |
可编程的 | 是的 |

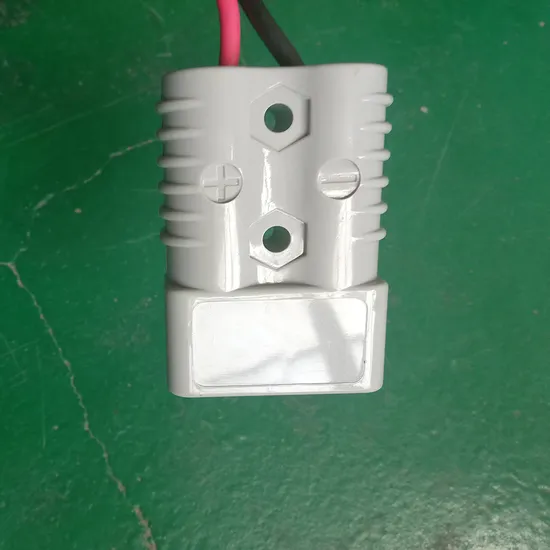

Plug | 安德森/雷玛 |
运输包 | 木箱 |
规格 | 50*40*80厘米 |
商标 | TORCH |
起源 | 中国 |
商品编码 | 八亿五千零四十四万零九百九十 |
生产能力 | 年产量5000件 |
产品详情
Product Description
Preview
1. Use of Products
charger can meet the charging needs of various types of lead-acid batteries and can be used for normal charging and maintenance charging of electric vehicles, such as forklift, electric flat cars, electric stackers and tourist cars.
2. Product Characteristics

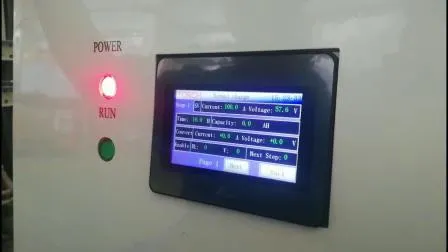

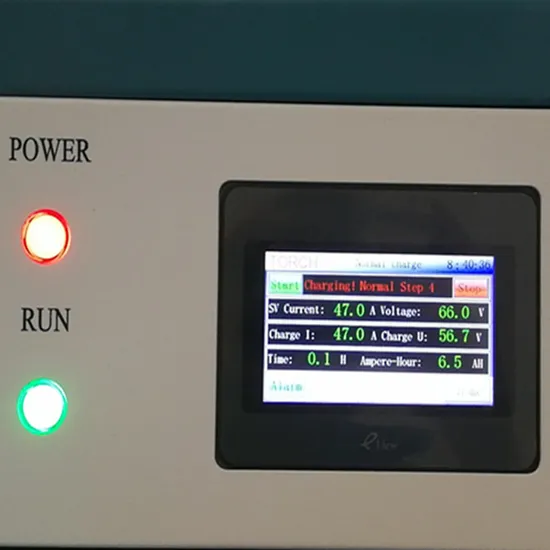

2.1 Touch screen displays charging current, voltage, charging time, charging ampere, charging steps .
2.2 Microprocessor can control the charging process intelligently.
2.3 Constant voltage charging and constant current charging can be realized, and charging process can be edited on touch screen.
2.4 The normal charging and equalized charging can be selected through touch screen. It is easy to operate.
2.5 The charging mode in summer/winter can be selected by touch screen to ensure charging effect at different ambient temperatures.
2.6 The normal charging and equalized charging process can be edited and modified by entering the editing operation password .
2.7 Charging faults can be automatically diagnosed and its corresponding alarm information will be displayed .
2.8 It has the function of adaptive phase sequence of AC power supply and self-recovery of AC power failure.
2.9 It has the functions of over-voltage, over-current, short-circuit protection, transformer temperature, radiator temperature, power supply phase-gap protection.
2.10 Fifty charging records can be recorded and inquired, including date, terminal voltage and accumulative charging capacity.
2.11 Initial charging can be realized by editing the Equalized Charging Process.
3. Input power supply
3.1 Power Supply
This series of chargers use three-phase power supply or single phase power supply.
Three-phase power supply is 110-600V AC, three fire lines and one ground wire. The grounding wire must be grounded reliably. Charger permits ±5% power supply voltage fluctuation. Within this range, the charging performance and charging time of the charger will not be influenced
3.2 Warning
3.2.1 Charger must be selected according to battery type and capacity (ampere hour Ah). This series of chargers are only suitable for the charging of traction batteries. The batteries can be charged only when they are equipped with electrolyte in a well ventilated environment. If the internal level of the battery drops, the electrolyte should be supplemented appropriately. The wrong choice may lead to excessive gas, boiling and even explosion. Do not charge parallel batteries or batteries that are not allowed to charge.
3.2.2 It is necessary to check whether the battery matches the charger and ensure that the battery is connected to the charger properly during the charging process.
3.2.3 Before using and connecting the charger, please read the instructions for installation and operation carefully, and strictly observe the allowable conditions of use.
3.2.4 Keep all air vent unblocked to prevent overheating; Keep away from various liquids to avoid short circuit.
3.2.5 Charger with high voltage will endanger life safety, only professional and technical personnel can open and repair the charger.
3.2.6 For safety reasons, it is forbidden to make any adjustments and changes to the charger.
4. Technical parameters
Working ambient temperature: - 15 ~45
Relative humidity of environment: <85% (when medium temperature is 20°C±5°C)
Protection Level: IP21
Cooling Mode: Natural Cooling/Forced Air Cooling
Charging Method: Constant Current Charging,
Constant Voltage Charging
Charging Function: Normal Charging, equalized Charging, Customized
Charging, Summer/Winter Charging Mode
Operational display panel: 4.3 Inch Touch screen, English
display.
charger can meet the charging needs of various types of lead-acid batteries and can be used for normal charging and maintenance charging of electric vehicles, such as forklift, electric flat cars, electric stackers and tourist cars.
2. Product Characteristics
2.1 Touch screen displays charging current, voltage, charging time, charging ampere, charging steps .
2.2 Microprocessor can control the charging process intelligently.
2.3 Constant voltage charging and constant current charging can be realized, and charging process can be edited on touch screen.
2.4 The normal charging and equalized charging can be selected through touch screen. It is easy to operate.
2.5 The charging mode in summer/winter can be selected by touch screen to ensure charging effect at different ambient temperatures.
2.6 The normal charging and equalized charging process can be edited and modified by entering the editing operation password .
2.7 Charging faults can be automatically diagnosed and its corresponding alarm information will be displayed .
2.8 It has the function of adaptive phase sequence of AC power supply and self-recovery of AC power failure.
2.9 It has the functions of over-voltage, over-current, short-circuit protection, transformer temperature, radiator temperature, power supply phase-gap protection.
2.10 Fifty charging records can be recorded and inquired, including date, terminal voltage and accumulative charging capacity.
2.11 Initial charging can be realized by editing the Equalized Charging Process.
3. Input power supply
3.1 Power Supply
This series of chargers use three-phase power supply or single phase power supply.
Three-phase power supply is 110-600V AC, three fire lines and one ground wire. The grounding wire must be grounded reliably. Charger permits ±5% power supply voltage fluctuation. Within this range, the charging performance and charging time of the charger will not be influenced
3.2 Warning
3.2.1 Charger must be selected according to battery type and capacity (ampere hour Ah). This series of chargers are only suitable for the charging of traction batteries. The batteries can be charged only when they are equipped with electrolyte in a well ventilated environment. If the internal level of the battery drops, the electrolyte should be supplemented appropriately. The wrong choice may lead to excessive gas, boiling and even explosion. Do not charge parallel batteries or batteries that are not allowed to charge.
3.2.2 It is necessary to check whether the battery matches the charger and ensure that the battery is connected to the charger properly during the charging process.
3.2.3 Before using and connecting the charger, please read the instructions for installation and operation carefully, and strictly observe the allowable conditions of use.
3.2.4 Keep all air vent unblocked to prevent overheating; Keep away from various liquids to avoid short circuit.
3.2.5 Charger with high voltage will endanger life safety, only professional and technical personnel can open and repair the charger.
3.2.6 For safety reasons, it is forbidden to make any adjustments and changes to the charger.
4. Technical parameters
Working ambient temperature: - 15 ~45
Relative humidity of environment: <85% (when medium temperature is 20°C±5°C)
Protection Level: IP21
Cooling Mode: Natural Cooling/Forced Air Cooling
Charging Method: Constant Current Charging,
Constant Voltage Charging
Charging Function: Normal Charging, equalized Charging, Customized
Charging, Summer/Winter Charging Mode
Operational display panel: 4.3 Inch Touch screen, English
display.
Preview

Preview

Preview

Preview

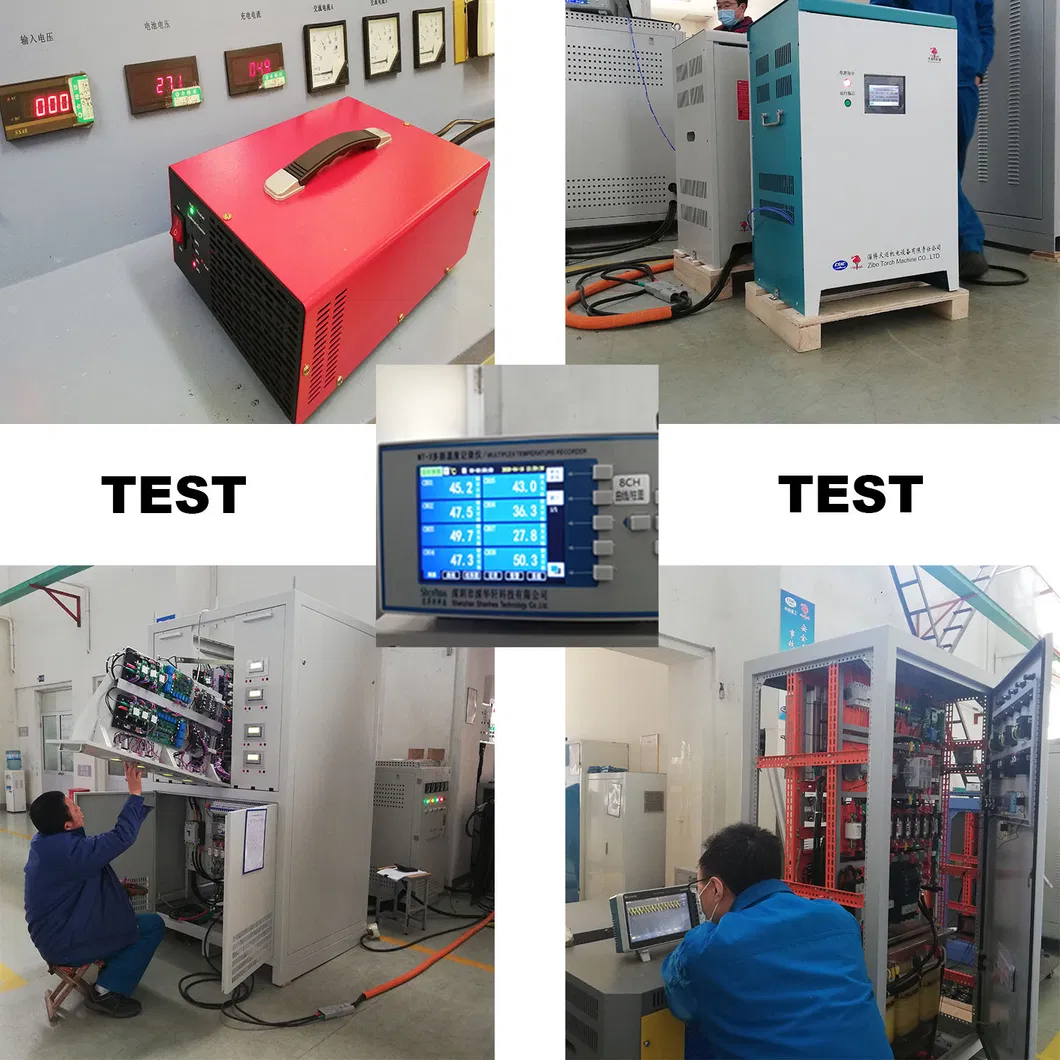

5.Test
Before Dispatch
Before Dispatch
Preview

Preview
6. Package and loading
7. Workshop Show
Parameters:
APPLICATION PHOTO
FAQ:
1. Are u manufacturer?
we are Subsidiary of Zibo Torch Energy ( which is a subsidiary of CSSC). Our group company manufacture
different kinds of goods.We can sell all the products which are produced by ourself and by our sister companies. Like the machines for battery making, laser machines, charging system,
batteries, material for battery making etc.
2. How long is the warranty?
1 year warranty, and after one year we can provide spare part as per your order.
3. How can we reach your factory?
our Factory locates in ZIBO city, you can take train and reaching ZIBO station , or you can take flight reaching JINAN or Qingdao Airport. We will arrange the pickup.
4. How long is the delivery time?
Usually it depends on your products and the QTY,, the delivery time varies from 3days to 90 days.
5. How to pay ?
You can pay to our company account directly with the PI provided by us. We accept TT and L/C.
6.What is the delivery terms?
We can arrange the delivery by sea, by air and by express carrier, Such as DHL, TNT, UPS, Fedex etc. FOB, CFR and CIF are all OK for us. And the nearest port is Qingdao port.
7. Workshop Show
Parameters:
APPLICATION PHOTO
FAQ:
1. Are u manufacturer?
we are Subsidiary of Zibo Torch Energy ( which is a subsidiary of CSSC). Our group company manufacture
different kinds of goods.We can sell all the products which are produced by ourself and by our sister companies. Like the machines for battery making, laser machines, charging system,
batteries, material for battery making etc.
2. How long is the warranty?
1 year warranty, and after one year we can provide spare part as per your order.
3. How can we reach your factory?
our Factory locates in ZIBO city, you can take train and reaching ZIBO station , or you can take flight reaching JINAN or Qingdao Airport. We will arrange the pickup.
4. How long is the delivery time?
Usually it depends on your products and the QTY,, the delivery time varies from 3days to 90 days.
5. How to pay ?
You can pay to our company account directly with the PI provided by us. We accept TT and L/C.
6.What is the delivery terms?
We can arrange the delivery by sea, by air and by express carrier, Such as DHL, TNT, UPS, Fedex etc. FOB, CFR and CIF are all OK for us. And the nearest port is Qingdao port.
