型号编号 | LD28 |
接口 | RS485/RS232/威根德26 |
类型 | 动物芯片 |
材料 | 防抱死制动系统 |
功能 | 付款,鉴定 |
结构 | EM4305/Hitag S256等 |
数据传输模式 | 串行 |
应用领域 | 动物识别 |
尺寸 | 260乘以260乘以35毫米 |
芯片 | 恩埃姆4305/希塔格S256等 |
协议 | ISO11784/11785,Fdx-B,Hdx |
频率 | 134.2千赫兹 |
持续时间 | 20小时 |
电源 | DC 12V |
读取距离 | 高达50厘米 |
操作温度 | 负20摄氏度至正85摄氏度 |
操作湿度 | 5%到95% |
装运 | 通过快递/空运/海运 |
交通包裹 | 一盒/件 |
规格 | 黑色 |
商标 | 佟贺 |
起源 | 福建 |
商品编码 | 8471900090 |
生产能力 | 每月1000件 |
包装尺寸 | 30.00cm * 30.00cm * 4.00cm |
包装总重量 | 4.000千克 |
包装尺寸 | 30 |
包装总重量 | 4.000千克 |
产品详情
Product Description
Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

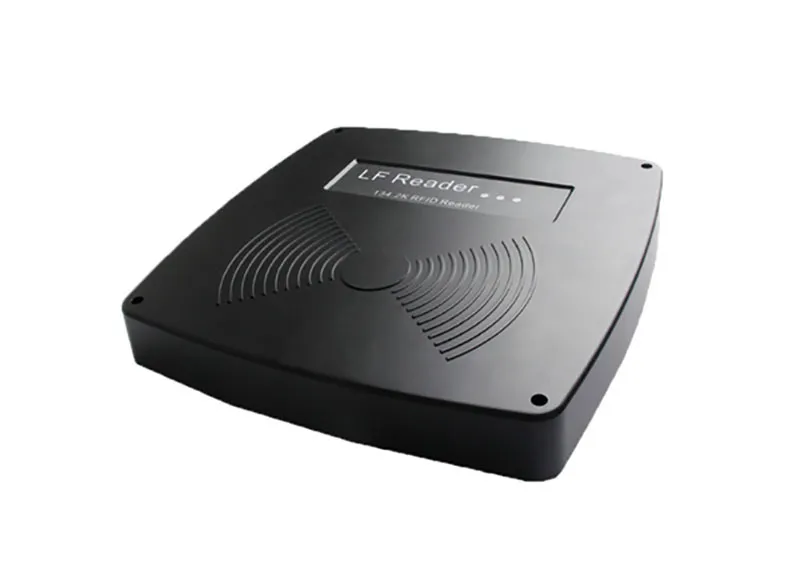

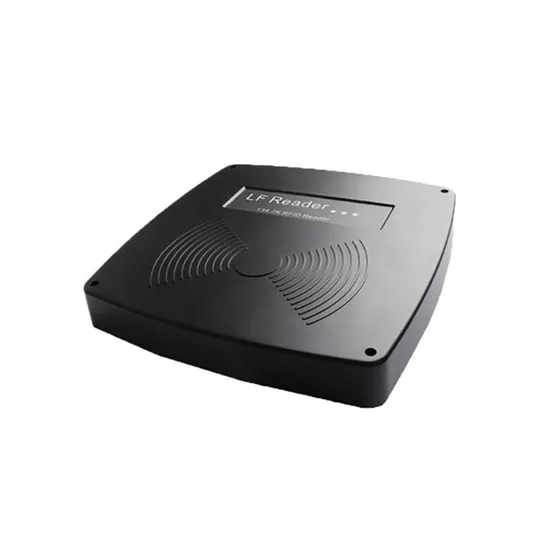

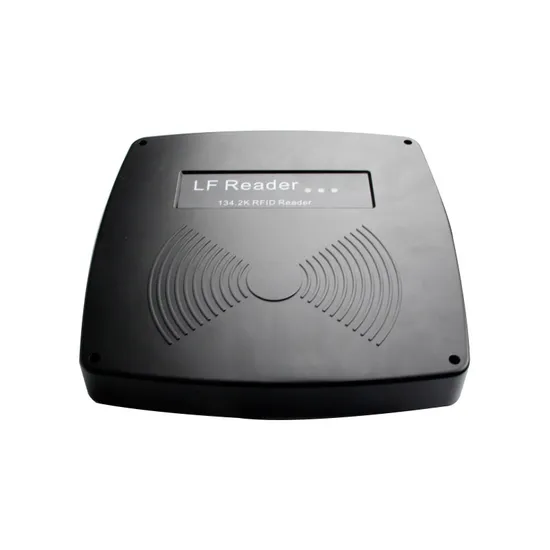

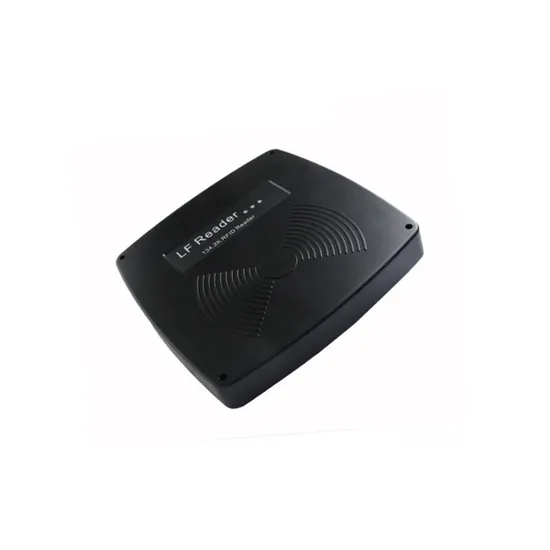

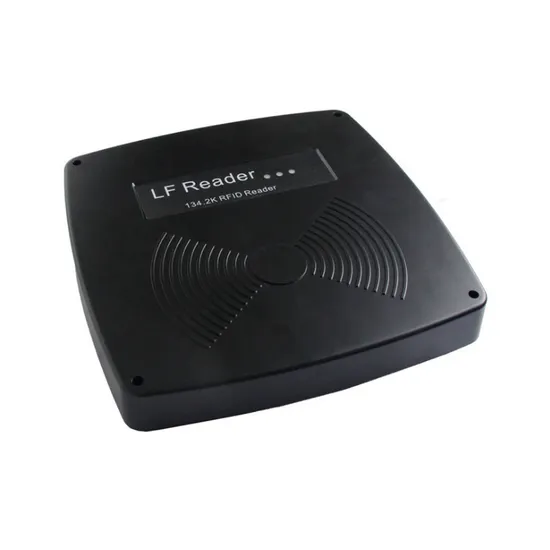

RS232 Animal Tag 134khz RFID Reader FDX-B HDX RFID Animal Reader
Features:
High stability, can automatically adapt to a variety of environments, long-term use will not drift;
High reliability, ESD protection, anti-surge protection;
Application areas: pig management, cattle management, sheep management, car park management.Test conditions Temperature = + 25 ° C.Table 3.1 Device DC Characteristics Table
Symbol Parameter Test Conditions Min Max Units
VCC Operating voltage 2.7 3.6 V
IDC1 current consumption normal mode 80 105 mA
IDC2 current consumption standby mode μA
VIL input low level VSS VSS + 0.6 V
VIH input high level 0.8VCC VCC V
VOL output low level I (OLMAX) = - 6mA VSS VSS + 0.6 V
VOH output high level I (OHMAX) = 6mA VCC-0.6 VCC V
Wire Instruction:
Red DC12V ~ 18V
Black
Yellow RS485 A (R +)
Green RS485 B (R-)
Brown reserved
White Reserved
Communication Protorol:
Using a string transfer format. The default RS485 address is 0x01, the baud rate is 19200, 8 data bits, 1 stop bit, no parity bit;1.1 Read Read command
1.1.1 PC -> RPD-A04
Send data: [R0108]
'' Data header;
'R' command type code, 'R' for read data command;
"01" is the address, range 0 ~ FF;
"BCC = 0x5B ^ 0x52 ^ 0x30 ^ 0x31 = 0x08 (the result is represented by hexadecimal characters);" BCC = 0x5 " ']' End character.1.1.2 RPD-A04 -> PC
The reader has read the tag data and returns
The reader data is not read in the card reader or the data has been read and returns:
'<' Data frame header;
'R' command type code;
"01" address, range 00 ~ FF;
"00" return status, "00" card reader successful, "01" card failure;
"84031ECD07D908" tag data;
"61" BCC check code, BCC code before the characters of the ASCII code value XOR operation;
'>' End character.1.2 Setting Set the RS485 address command
1.2.1 PC -> Send data: [S010F7F]
'' Data header;
'S' command type code;
"01" is the RS485 slave address, range 0 ~ FF; (* Note: The address from the device address in the address setting command will be ignored, so the slave address can only be connected to a single device to operate, This command will set the slave devices on the entire bus to the same address)
"0F" is the address to be modified, range 0 ~ FF;
BCC = 0x5B ^ 0x53 ^ 0x30 ^ 0x31 ^ 0x30 ^ 0x46 = 0x7F (the result is represented by hexadecimal characters); BCC = 0x5 ^
']' End character.1.2.2 RPD-A04 -> PC
Set successful, return: Setup failed, return:
'<' Data frame header;
'S' command type code;
"01" address, range 00 ~ FF; "00" return status,
"00" set successfully, "01" setting failed;
"6E" BCC check code, BCC code before the characters of the ASCII code value XOR operation;
'>' End character.1.3 Beep buzzer setting command
1.3.1 PC ->
Turn off the buzzer and send data: [B010018]
Open the buzzer, send data: [B010119] ''
Data header;
'B' command type code;
"01" is the address, range 0 ~ FF;
"00" to set the buzzer working state, "00" to close the buzzer, "01" to open the buzzer;
"18" BCC check code, BCC code before the characters of the ASCII value of the XOR operation, the results of the characters to represent hexadecimal;
']' End character.1.3.2 -> PC
Set successful, return:
Setup failed, return:
'<' Data frame header;
'B' command type code;
"01" address, range 00 ~ FF;
"00" return status, "00" card reader successful, "01" card failure;
"7F" BCC check code, BCC code before the characters of the ASCII code value XOR operation;
'>' End character.1.4 Adjust Ant Adjust the antenna
1.4.1 PC ->
Automatically adjust the antenna, send data: [A01001B] ''
Data header;
'A' command type code;
"01" is the address, range 0 ~ FF;
"00" antenna adjustment value, "00" automatically adjust, "01 ~ 10" minus 1 for the mandatory adjustment value 00 ~ 0F;
"1B" BCC check code, BCC code before the characters of the ASCII code value XOR operation, the results of the characters to represent hexadecimal;
']' End character.1.4.2 -> PC
Set successful, return:
'<' Data frame header;
'A' command type code;
"01" address, range 00 ~ FF;
"00"
"7F" BCC check code, BCC code before the characters of the ASCII code value XOR operation;
'>' End character.1.5 Default Restores the default settings command
1.5.1 PC ->
Send data: [D011E]
'' Data header;
'D' command type code;
"01" for the address, the range 0 ~ FF; (This command with the address in the 2 set the command, the same address ignored, so the operation can only connect a single device operation)
"1E" BCC verification code, BCC code before the characters of the ASCII code value XOR operation;
']' End character.1.5.2 ->
PC Set successful, return:
Setup failed, return:
'<' Data frame header;
'D' command type code;
"01" address, range 00 ~ FF;
"00" return status, "00" card reader successful, "01" card failure;
"79" BCC check code, BCC code before the characters of the ASCII code value XOR operation;
'>' End character.Quanzhou Hecere Electronic Co.,Ltd.is a marker leader for RFID/NFC products supplying in china since 2008.We have 3 factories and 300 workers, mainly supplying RFID card, RFID wristband and RFID device. We worked
