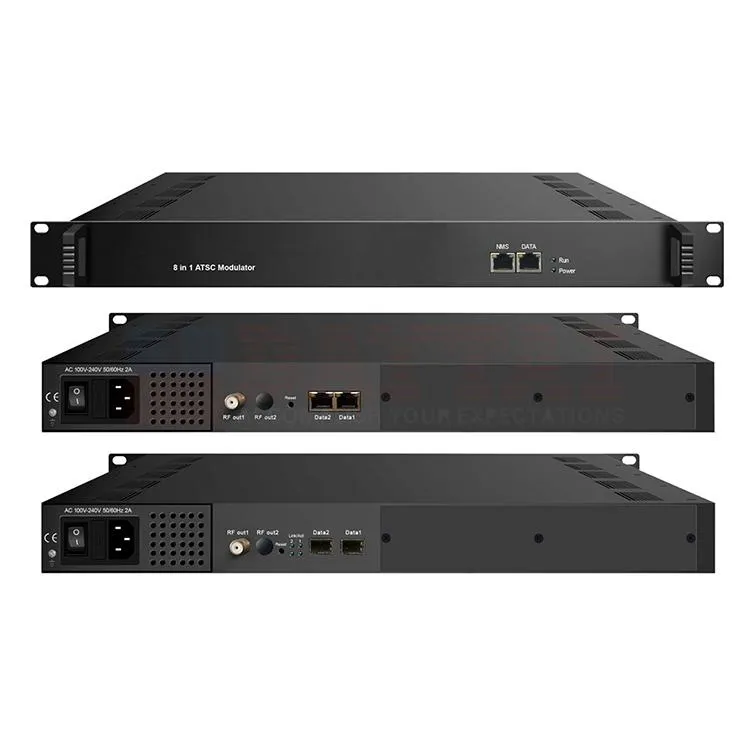

Digital TV Headend 8 in 1 ATSC Modulator,(DT-ATSC-TM-8) is DAYTAI's newly designed product supporting IP input. It has
8 multiplexing channels and 8 ATSC modulating channels, and supports maximum 256 IP input through the GE port.DT-ATSC-TM-8 has a powerful output capacity with 8 non-adjacent carriers (50MHz~960MHz) output through the RF
output interface. The system of this device can be on line controlled and upgraded through network, which can be
widely used in ATSC digital broadcasting network setup and the testing for ATSC set top box design.Power Supply:AC
100V±10%, 50/60Hz or AC 220V±10%,50/60Hz,Power Plug:European standard Plug or American standard Plug is optional.

Feature
⊙Max 840Mbps for each input
⊙Supports RS (208,188) encoding
⊙Supports accurate PCR adjusting
⊙Support Web-based Network management
⊙Supports PID remapping and PSI/SI editing
⊙Supports up to 180 PIDs remapping per channel
⊙Support 8 multiplexed TS over UDP/RTP/RTSP output
⊙8 ATSC non-adjacent carriers output, compliant to ATSC A/53 standard
⊙3 GE ports (max 256 IP in):Data1 & Data2 bi-directional ports, max 256 IP in, 8 IP out Data port (located on front panel), max 128 IP in
