1880 Liters
Portable Tank
T21 Portable Tank to contain TMA(Trimethyl aluminium), TEA(Triethyl aluminium), TMG(Trimethyl gallium) ,TEG(Triethyl gallium)(TMGa ,TEGa,TMIn, TMAl Cylinders)
1880 Liters Cylinder, UN3394 Portable Tank, T21 Teal Portable Tank Triethylaluminum
Organometallic substance, liquid, water-reactive, flammable
High
Purity
Metalorganic
cylinders
Model:
T21
Dielectric triethyl aluminum UN3394+UN3399 Triethyl aluminium
Volume:
1880 L
External dimensions mm :
2128*1148*1388
16. Tank size mm :
1148*2128
Design pressure: 14
Bar
Test pressure:
21 Bar
Design temperature range :- 40 ºC ~
65 ºC
Tank material :SA516
Nominal shell thickness:
12 mm
Nominal head thickness:
14 mm
Container net weight: 1070 KG
Maximum working weight:
4000 KG

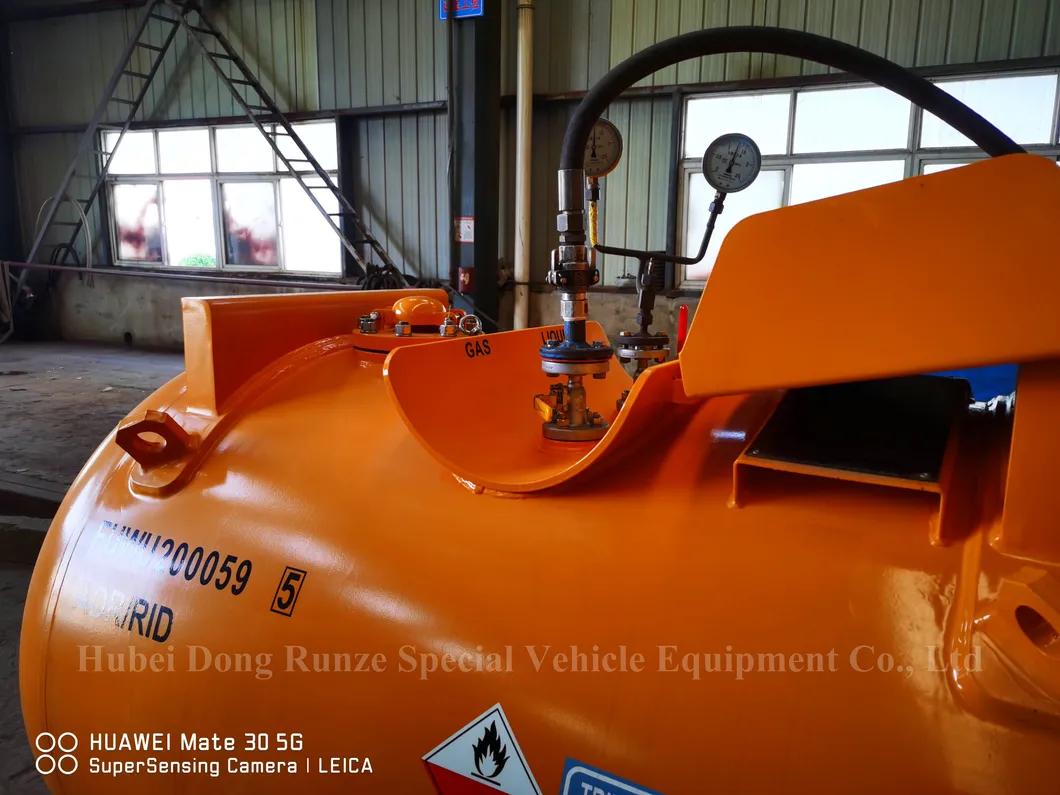

Attached:
"safety valve *1,
Gas phase valve :
DN20 *1
PN40
Liquid valve :
DN15*1 PN40"
Design/manufacturing standards :
IMDG CODE 2016,ADR/RID,49CFR,TIR,
USDOT, T21 UN Portable Tank, ASME BPVC Sec. Div. 1-2017"
Third party inspection :
BV ASME TS

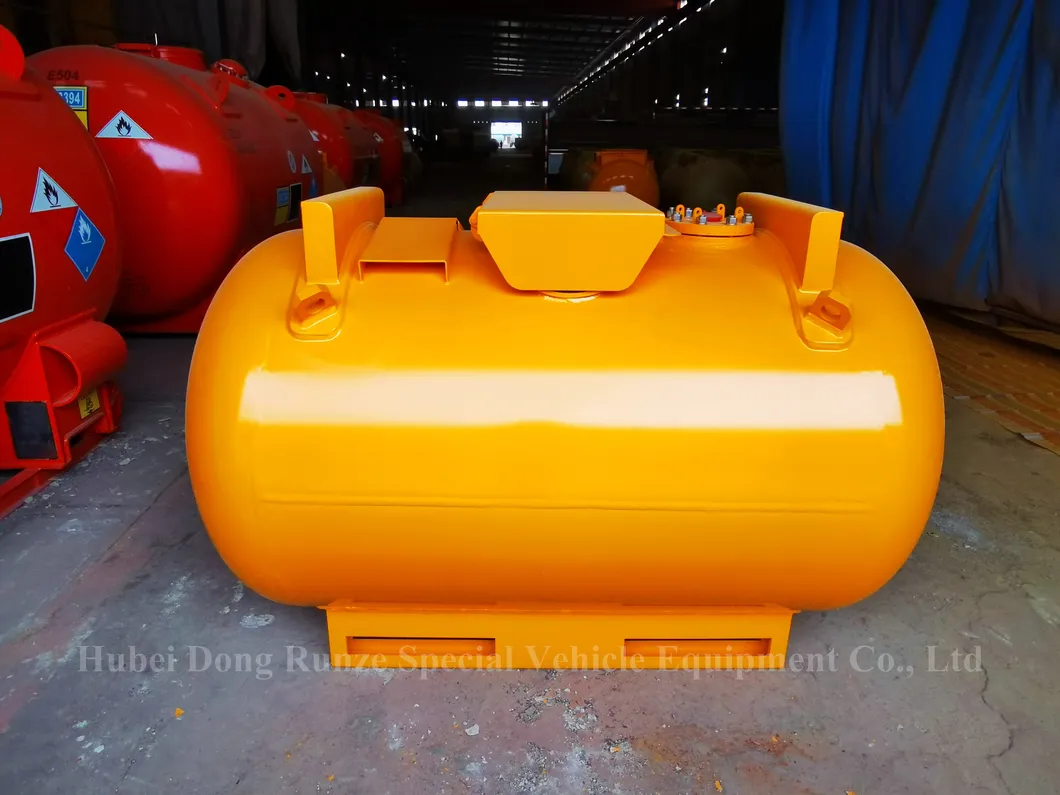

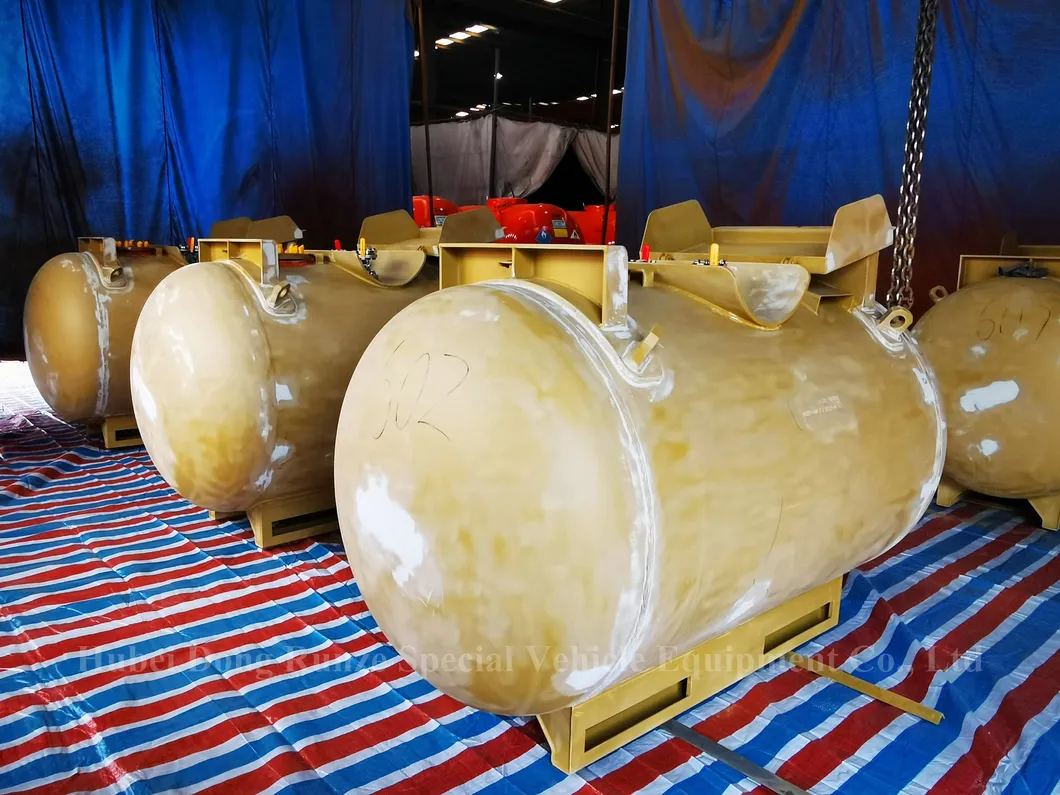

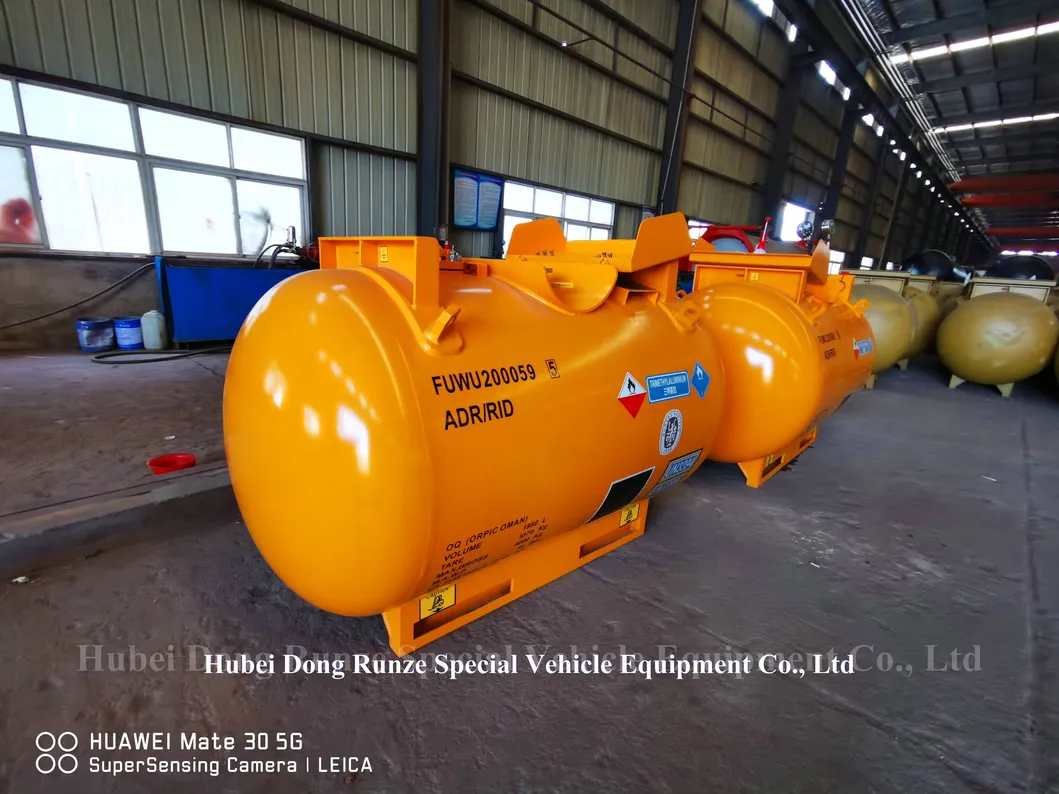

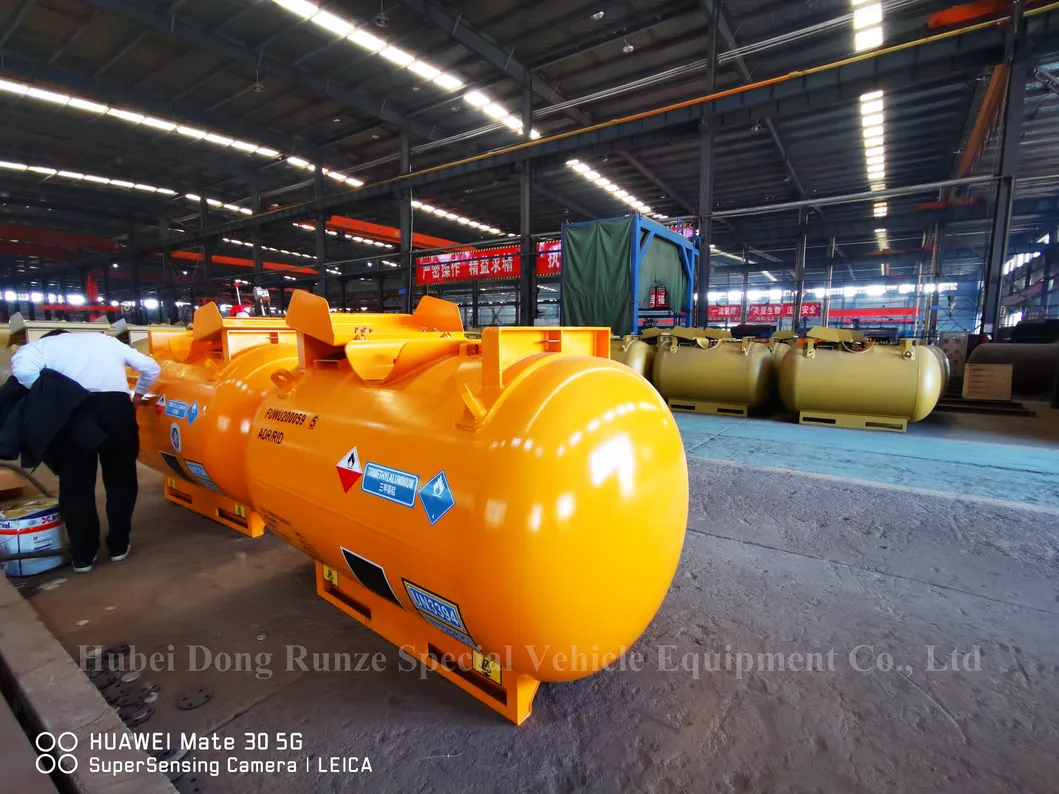

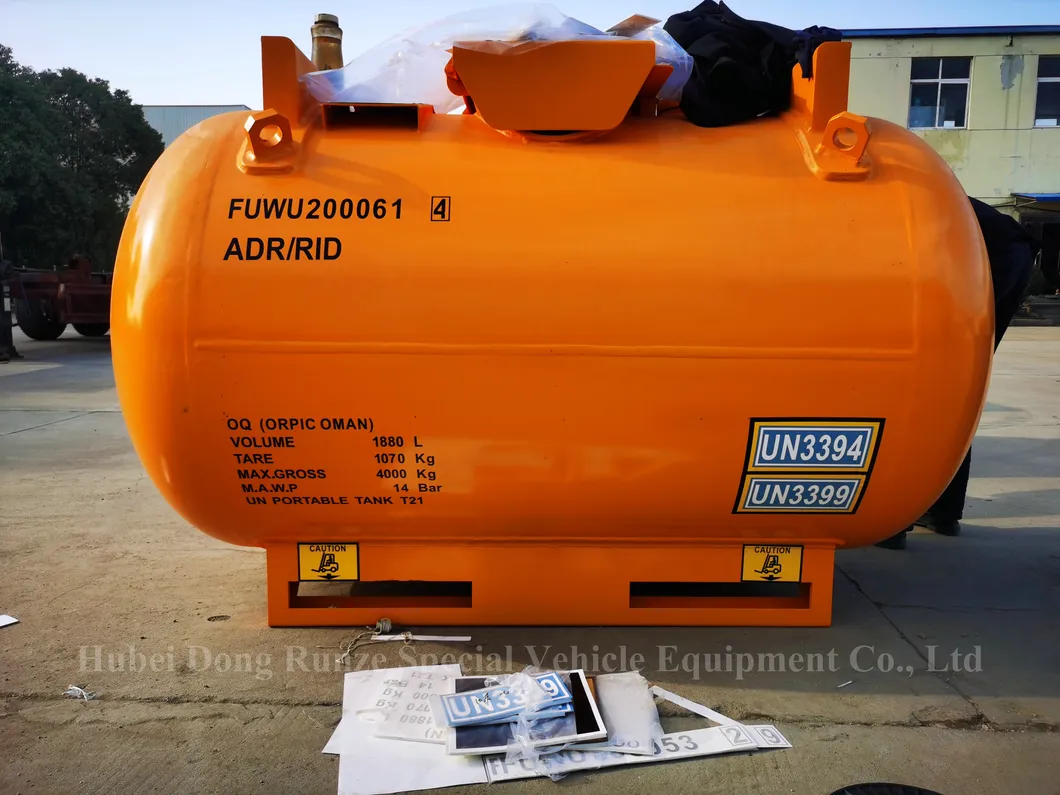

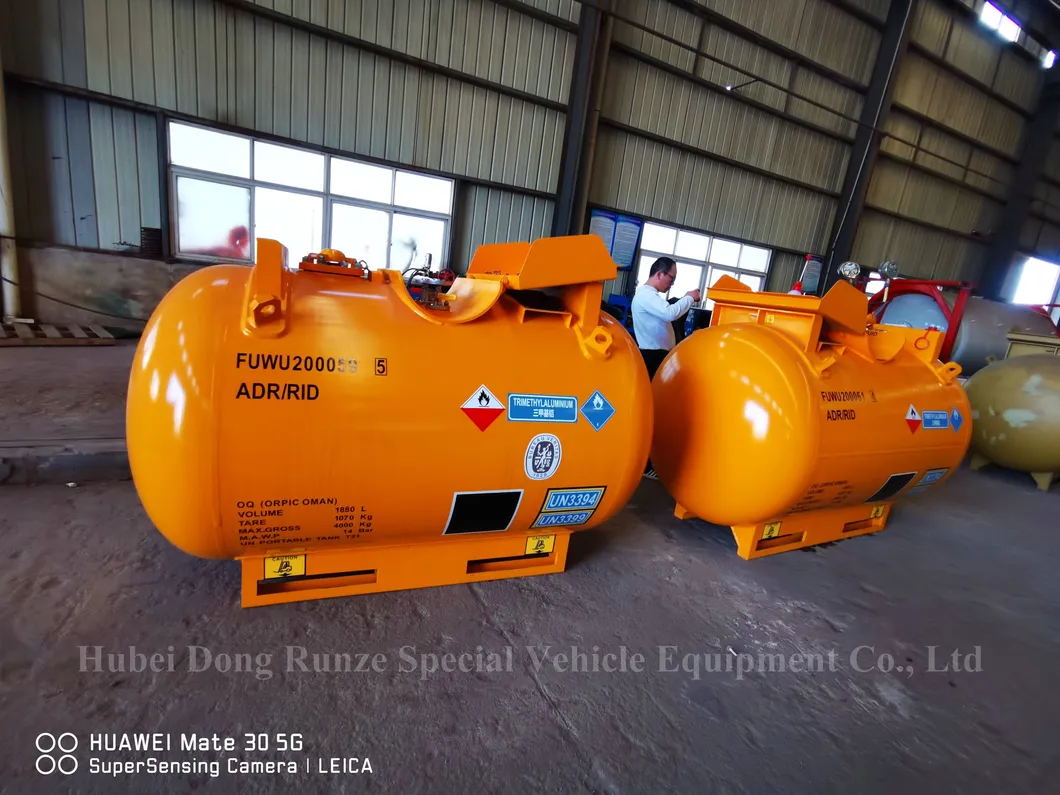

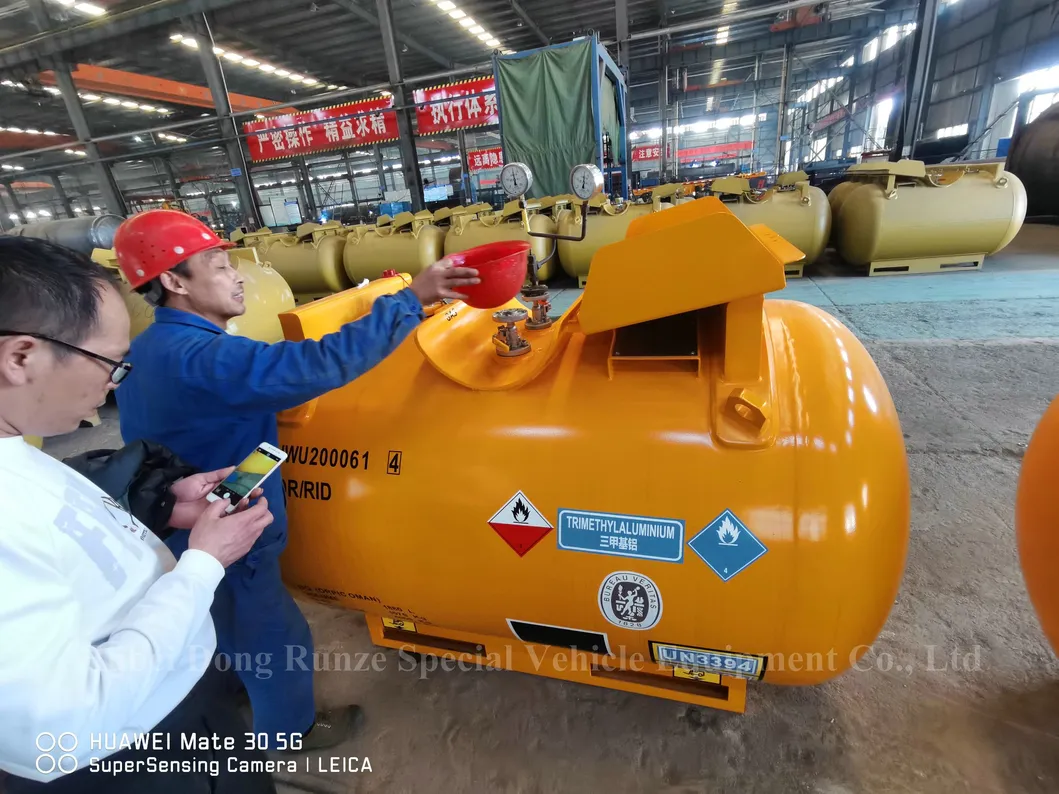

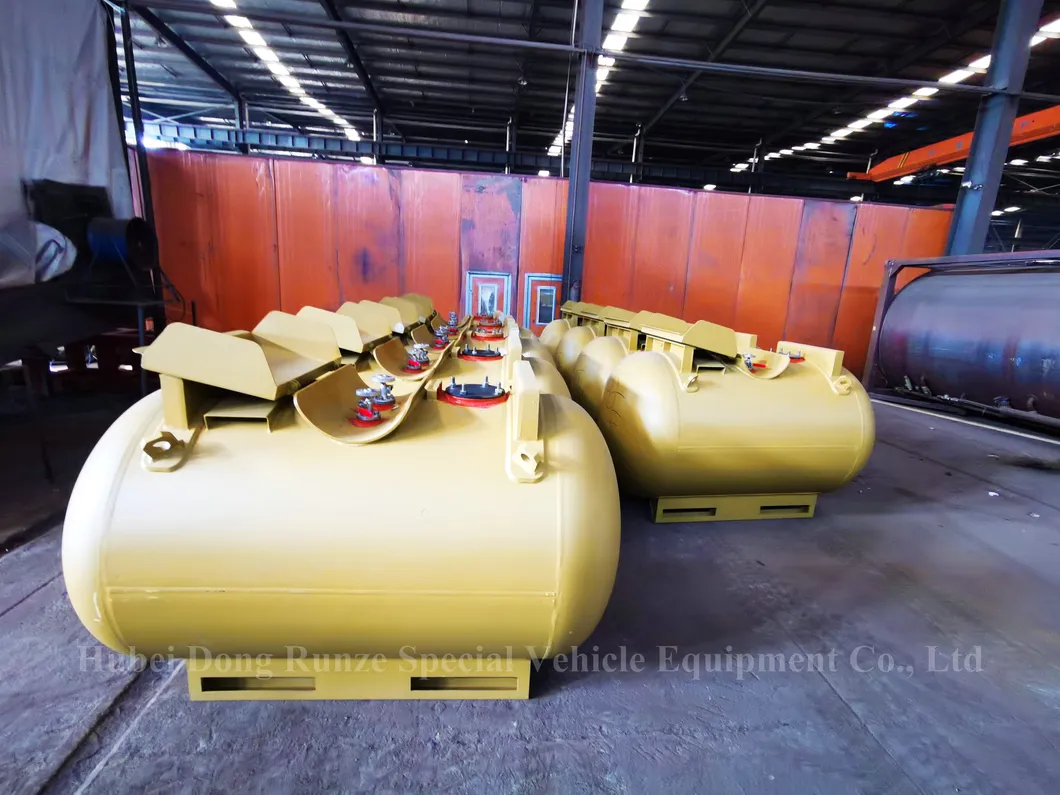

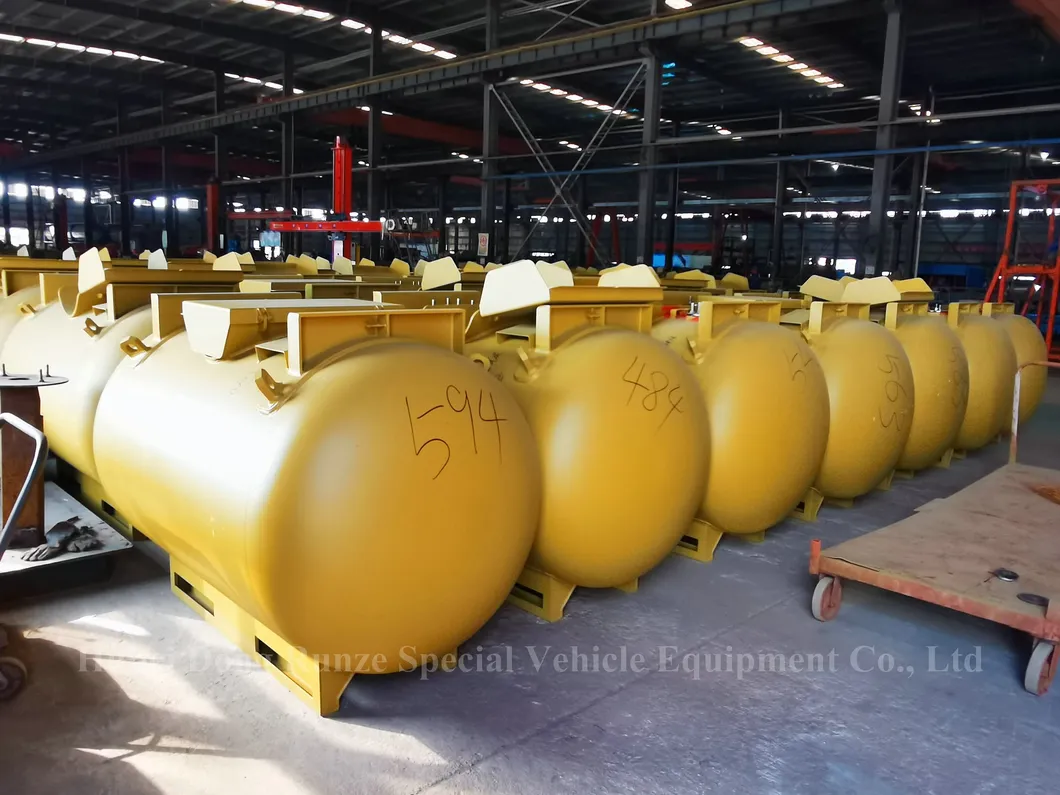

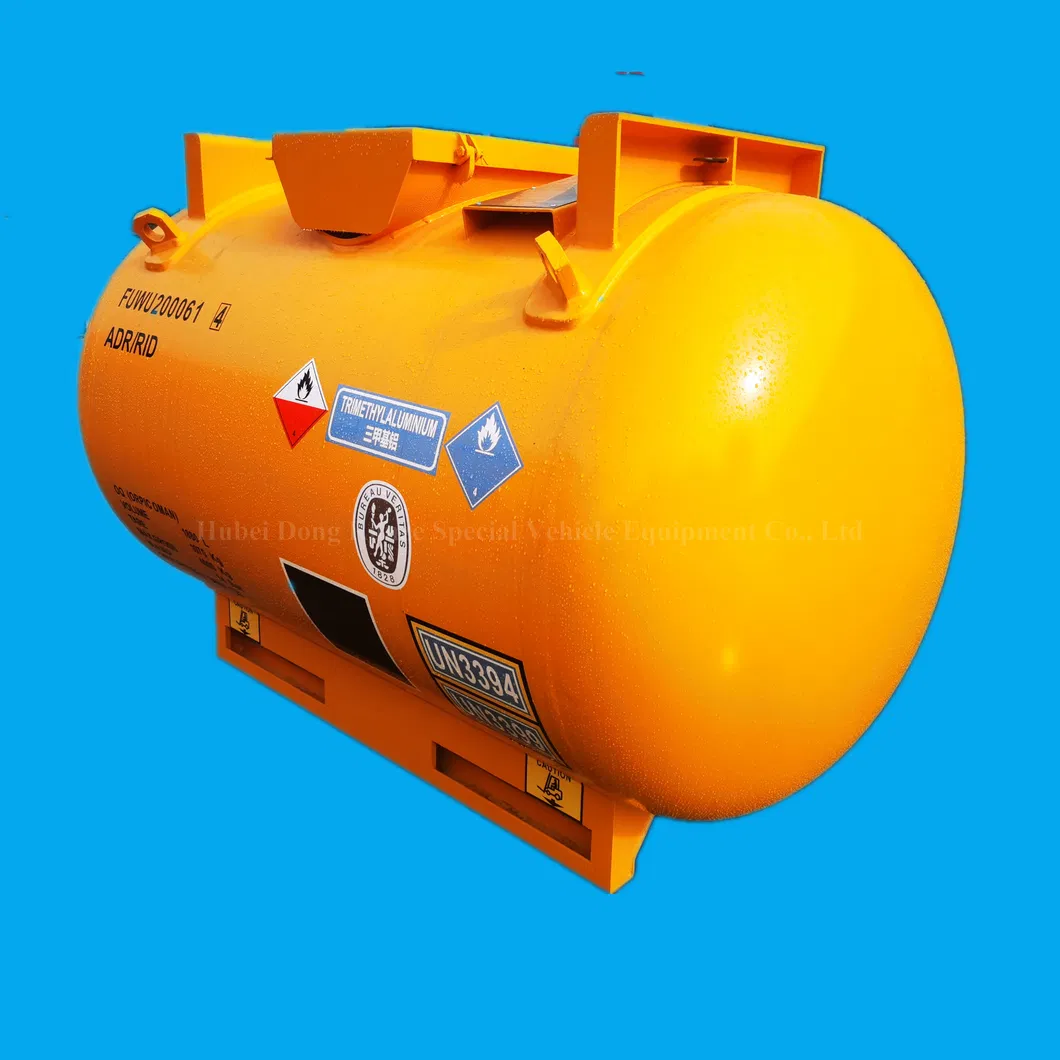

The pictures are for your reference only.Images
of
Alky
Portable
Tank
UN3394

Specifications
Product: UN T21 Portable Tank
Product: UNT22 Portable Tank
portable tank was suitale for Organometallic Substance, Liquid, Pyrophoric,
Water-Reactive, Ethylaluminum Sesquichloride, Diethylaluminum Chloride,
Triethyl aluminum only UN3394
The specification as below:
Trimethylaluminum(TMA), Trimethylgallium(TMG), Triethylgallium(TEG), and Trimethylindium(TMI) are used as key materials in the manufacture of these LED chips, as well as other semiconductor applications such as power devices.Emerging technologies hold the potential to supplement the world's energy mix with options that convert solar energy into electricity. Vital is a leading supplier of technology including Trimethylaluminum(TMA) used in Chemical Vapor Deposition(CVD) and Atomic Layer Deposition(ALD) applications for increasing the efficiency of photovoltaic modules.
↵
Designed
for
the
shipment
of
metal
alkyls
and
organometallic
specialties.Our
shipping containers
are
designed
and
constructed
to
meet
all
national
and
international
transport regulations
and
are
tested
periodically,
in
accordance
with
the
appropriate
regulations.ISOTANK List
20ft T50 LPG ISO Tank Container LPG Propane Isobutane Gas Tank Container 24K
1. DRZ Cryogenic Storage Tank include the following ISO cryogenic tank:10ft, 12ft, 20ft, 40ft
2. Used for: liquid oxygen tank container, liquid nitrogen tank container, liquid argon tank container, liquid Nitrous Oxide tank container, liquid carbon dioxide tank container, LNG tank container, LPG tank container, AHF tank container, Liquid Chlorine tank container, liquid ammonia tank container.3. Tank capacity: 7.7m3~60m3.4. Tank pressure: 8bar, 16bar ,24Bar or based on user requirement.5.certificate: RID/ADR, CFR49, IMDG, T75 UN PORTABLE, TIR ,
UIC, CSC, TC, US DOT, UK-DFT, FRA
Hydrogen Peroxide Iso Containers, Stainless Steel Iso Tank Containers
Sulphuric Acid Iso Containers, Stainless Steel Iso Tank Containers
Nitric Acid Iso Containers, Stainless Steel Iso Tank Containers
Mining Chemicals Iso Containers, Stainless Steel Iso Tank Containers
Food Products Iso Containers, Stainless Steel Iso Tank Containers
Solvents Iso Containers, Stainless Steel Iso Tank Containers
Oils Iso Containers, Stainless Steel Iso Tank Containers
Resins Iso Containers, Stainless Steel Iso Tank Containers
Alcoholic Beverages Iso Containers, Stainless Steel Iso Tank Containers
Mo 1
Iso Containers, Stainless Steel Iso Tank Containers
Imo Iso Containers, Stainless Steel Iso Tank Containers
Imo 5
Iso Containers, Stainless Steel Iso Tank Containers
Imo 7
Iso Containers, Stainless Steel Iso Tank Containers
Food Tank Containers And Iso Containers, Stainless Steel Iso Tank Containers
Tank Containers Containers And Iso Containers, Stainless Steel Iso Tank Containers
Iso Containers, Stainless Steel Iso Tank Containers Hazardous.
Iso Containers, Stainless Steel Iso Tank Containers Non-Hazardous Liquid Materials.
Horizontal Iso Tanks And Containers, Stainless Steel Iso Tank Containers
Vertical Iso Containers, Stainless Steel Iso Tank Containers
The Aim Of Iso Is To Create a
Standardised Process Of Manufacture So That Things Can Be Interchangeable No Matter Where You Are. Having Products With An Iso Label Enables People To Know Exactly How The Product Will Work And Know Everything About It.
There Are Plenty Of Advantages For Using An Iso Tank. They Are a
Highly Reliable, Cost Effective And Safe Way Of Transporting Bulk Liquids From Place To Place.
T9, T10,T11,T14,T50 portable tank Standard ISO tank 10.9K-26K cement tank,PTFE/PE Lined tanks
for
hydrofluoric acid liquid ,hydrochloric acid ,sodium hypochlorite HCl,NaOH,NaClO liquid etc.Insulation Tank for bitumen Liquid Asphalt,crude oil etc.Portable Tank Container
Tank Containers can be used to carry the following products:Portable Tank ContainerProducts
ISO Tank
-
Ammonium Nitrate
ISO Tank
-
Bio-diesel
ISO Tank
-
Molasses
ISO Tank
-
Caster Oil
ISO Tank
-
Hexane
ISO Tank
-
Ethanol
ISO Tank
-
Ethylene
ISO Tank
-
Methanol
ISO Tank
-
IMO 1ISO Tank
-
IMO 2ISO Tank
-
IMO5ISO Tank
-
Capacities ranging from 10,000 litres to 25,000 litresISO Tank
-
Swap Bodies with capacities ranging from 26,000 litres to 32,000 litresISO Tank
-
Bitumen tank containers 21,000 litresISO Tank
-
Off-shore tanks with capacities of 1,000 litres to 10,000 litresIMO 1ISO Tank
-
Shell made from 316 Stainless SteelISO Tank
-
Capacity of 12,000 -
26,500 litres nominalISO Tank
-
MAWP of 4
barISO Tank
-
For transport of:ISO Tank
-
Hazardous liquidsISO Tank
-
Available in 7.65, 10, 20, or 30 foot sizesISO Tank
-
Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)ISO Tank
-
Heating by steam or electric heating (optional)ISO Tank
-
Cooling by Glycol (optional)Please contact us if you require further information and/or a
quotation.(Contact Details above)
IMO 2ISO Tank
-
Shell made from 316 Stainless SteelISO Tank
-
Capacity of 12,000 -
26,500 litres nominalISO Tank
-
MAWP of 1.75 barISO Tank
-
For transport of:ISO Tank
-
Low Hazardous liquidsISO Tank
-
Available in 7.65, 10, 20, or 30 foot sizesISO Tank
-
Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)ISO Tank
-
Heating by steam or electric heatingISO Tank
-
Cooling by GlycolPlease contact us if you require further information and/or a
quotation.(Contact Details above)IMO 0ISO Tank
-
Shell made from 316 Stainless SteelISO Tank
-
Capacity of 12000 -
26500 litres nominalISO Tank
-
MAWP of 4
barISO Tank
-
For transport ofISO Tank
-
WineISO Tank
-
Fruit JuicesISO Tank
-
Vegetable OilsISO Tank
-
Mineral OilsISO Tank
-
Non-hazardous OilsISO Tank
-
Available in 20 foot /
6 metresISO Tank
-
Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)ISO Tank
-
Heating by steam or electric heating (optional)ISO Tank
-
Cooling by Glycol (optional)Please contact us if you require further information and/or a
quotation.(Contact Details above)
IMO 5ISO Tank
-
Shell made from 316 Stainless SteelISO Tank
-
Capacity of 15,000 -
25,500 litres nominalISO Tank
-
MAWP of 1.75 barISO Tank
-
For transport of gases, including:ISO Tank
-
PropaneISO Tank
-
ButaneISO Tank
-
RefrigerantsISO Tank
-
Available in 20, 30 or 40 foot sizesISO Tank
-
Cooling by sun-shieldPlease contact us if you require further information and/or a
quotation.(Contact Details above)IMO 7ISO Tank
-
Shell made from 316 Stainless Steel or Carbon SteelISO Tank
-
Capacity of 20,000 -
24,000 litres nominalISO Tank
-
MAWP of 8
barISO Tank
-
For transport of cryogenic gases, including:ISO Tank
-
LNGISO Tank
-
Available in 10, 20, 30 or 40 foot sizesISO Tank
-
Cooling by glycolPlease contact us if you require further information and/or a
quotation.(Contact Details above)
Bitumen Tank ContainersISO Tank
-
Shell made from Carbon SteelISO Tank
-
Capacity of 20,000-25,000 litres nominalISO Tank
-
MAWP of 1.75 barISO Tank
-
Low Hazardous liquidsISO Tank
-
Available in 20 or 30 foot sizesISO Tank
-
Also Swap-bodies 7.15m (30,000 litres) and 7.82 (35,000 litres)ISO Tank
-
Heating by direct flame, hot oil or electric heatingPlease contact us if you require further information and/or a
quotation.(Contact Details above)Cement ContainersISO Tank
-
Capacity of 17.5 -
25 cubic metresISO Tank
-
Pressure dischargeOffshoreISO Tank
-
Shell made from 316 Stainless SteelISO Tank
-
Capacity of 2,000 -
10,000 litresISO Tank
-
MAWP of 5
barISO Tank
-
For transport of gases, including:ISO Tank
-
Hazardous chemicalsISO Tank
-
AcidISO Tank
-
PetroleumISO Tank
-
Available in 8
x 8
x 10 sizesISO Tank
-
Heated by steam or electric (optional)
The highly hazardous tank container is an IMO 1, T11, T14, T20 or T22 stainless steel container with a
capacity range between 14.600 and 24.000 liters. The tank containers we offer are suitable to transport highly hazardous and often corrosive cargoes. The tanks comply to all international regulations including ASME-U Stamp (T20 and T22). We have a
variety of tank containers with either a
rubber, resign or plastic lining. Other types and modifications include tank containers with baffle plates, bolted manlids, valve actuators, coated valves, coated spill boxes, gauges and different top discharge connections. Other safety related fittings or connections improving the operational flexibility can also be attached.
Beside the options shown, a
wide range of other modifications and fittings is available. Please share your enquiry and we will specify the most suitable tank container for your business. During this process we will take into account the product(s) to be loaded, the area of operation and any loading or discharge preferences. Our goal is to provide you with the most optimal tank taking both income and costs into consideration.
ISO Tank, ISO Tank Containers
Manufacturers &
Exporters
ISO Containers, stainless steel ISO tank containers, IMO tank containers for All types of Water ,
Hydrogen Peroxide ,
Sulphuric Acid ,
Nitric Acid ,
Mining chemicals ,
Food Products ,Solvents, Oils ,
Resins ,
Alcoholic Beverages ,
MO 1
,IMO 2
IMO 2
,IMO 5
IMO 5
,IMO 7
IMO 7,Food Tank Containers and UN portable tanks that can be used to ship a
hazardous and non-hazardous liquid materials. Our ISO tanks is versatile tanks and ISO standards tanks, many different kind of can be equipped with insulation ISO tanks, steam heating ISO tank, electric heating ISO tank or refrigeration for products that require temperature control, top and/or bottom discharge valve and pipeline systems ,
protective linings if required and other modifications we will provide as per customer requirement. Products stored or transported by these containers vary from non-hazardous and hazardous chemicals ISO tanks. These specially ISO tanks units are specially designed for transportation of bulk liquid product to, from and between fixed and/or mobile consumption points and where house delivery.
The bulk liquids that can be transported in an ISO tank include :
Swap body tank ISO tank ,
ISO Tank Containers- a
swap body has a
bigger tank which is larger than the frame, usually 23 or 25 feet (7.01 or 7.62 meters) long
Food-grade tank -
ISO tank ,
ISO Tank Containers- a
standard tank container which can only be loaded with foodgrade products
ISO tank ,
ISO Tank Containers Reefer tank -
a tank with the ability to cool the product to be transported
ISO tank ,
ISO Tank ContainersGas tank -
a tank that is suitable for the transport of gases
Silo tank ISO tank ,
ISO Tank Containers- a
tank for the transport of grains and powders
T1 ISO tank container for wine and light liquids (ISO tank ,
ISO Tank Containers)
T4 ISO tank container for non-hazardous edible and non-edible oils (ISO tank ,
ISO Tank Containers)
T11 ISO tank container for non-hazardous chemicals -
ISO tank ,
ISO Tank Containers
T14 ISO tank container for hazardous chemicals and acids like HCl and zinc chloride -
ISO tank ,
ISO Tank Containers
T50 ISO tank container for LPG and ammonia gas -
ISO tank ,
ISO Tank Containers
