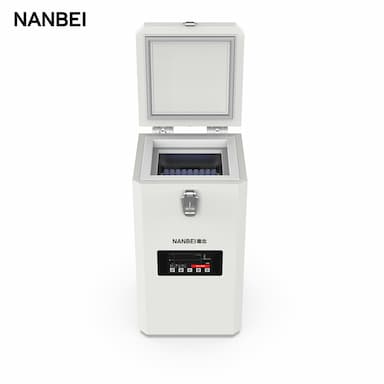

Small Capacity -86 Medical Refrigerator Freezer with Intelligent Temperature Control
Small ULT Portable Medical Vaccine Freezer for Car Storage and Transportation

Application & Usage

When turning on the power, put in a small 1.5ml test tube (filled with water)
Ambient temperature: 25ºC
Use container: 1.5ml micro test tube * 48
Cooling time: 25ºC to -80ºC 120min

-80°C is running, put in a small 1.5ml test tube (water injection)
Cooling time: 25ºC to -80ºC 3min
Features
*1. Style: vertical, with handle.
2. Box material: high-quality structural steel plate.
3. Liner material: EVA liner.
*4. Insulation material: using soft EVA closed-cell foam material, six-sided high-performance vacuum insulation material, greatly improving the insulation effect, and has a strong ability to eliminate high-frequency noise.
*5. Adopt brand-new Stirling refrigeration technology, equipped with various specifications of refrigeration blocks inside, ultra-fast refrigeration speed, high efficiency and energy saving, and no fluorine-containing refrigerants are used.
*6. Display: High-definition capacitive touch screen control system, clear display, friendly interface, LCD screen displays real-time target operating temperature, voltage, power, current, alarm status and management and other parameter information, and the temperature can be set by touch on the screen Operations such as lifting, mute, password unlocking, and power switch.
*7. Temperature control: a high-precision microcomputer temperature control system to ensure that the temperature in the box is maintained within the range of -40°C to -80°C. The temperature adjustment step can be set by touch on the screen to 1°C, 5°C, 10°C, 20 ºC, it is convenient to quickly set the target temperature, and the temperature display accuracy is 0.1ºC.
*8. Safe storage: complete sound and light alarm system (high and low temperature alarm, high current alarm, sensor failure alarm, high/low ambient temperature alarm, poor heat dissipation alarm, communication failure alarm, etc.), and the storage of items is safer.
*10. It can store 48 2ml standard cryopreservation tubes, which are portable and convenient for transportation.
*When the ambient temperature is 11.25ºC, the load is connected to the power supply, and the temperature is reduced from 25ºC to -80ºC, and the cooling time is ≤120min.
*12. At 25°C ambient temperature, during normal operation at -80°C, load the load and cool down to -80°C for ≤3min.
Structure

Product Parameters

Related Product

2~8ºC
medical refrigerator
Professional refrigeration equipment for refrigerated drugs in the medical industry, but also for storage of biological products such as biological products, vaccines, drugs, reagents, etc. Suitable for pharmacies, pharmaceutical factories, hospitals, disease control centers, health centers, various laboratories, etc.

-10ºC
~ -40ºC
Freezer
It can be used to freeze ice, store plasma, reagents and various items that need to be stored frozen. Applicable to hospitals, community health service centers, disease prevention and control centers, blood stations, university laboratories, cold food and catering industries.
