SOFTEL high quality rf modulator 8/16/32 channels

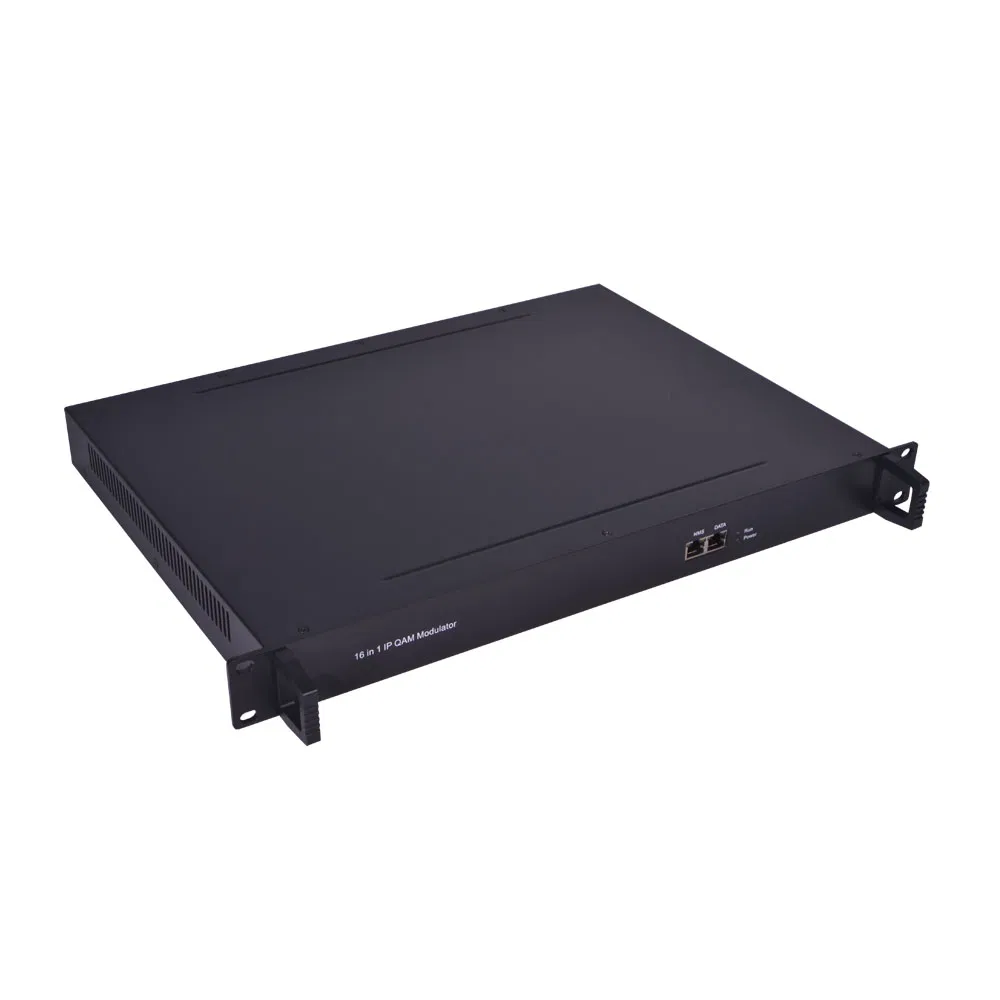

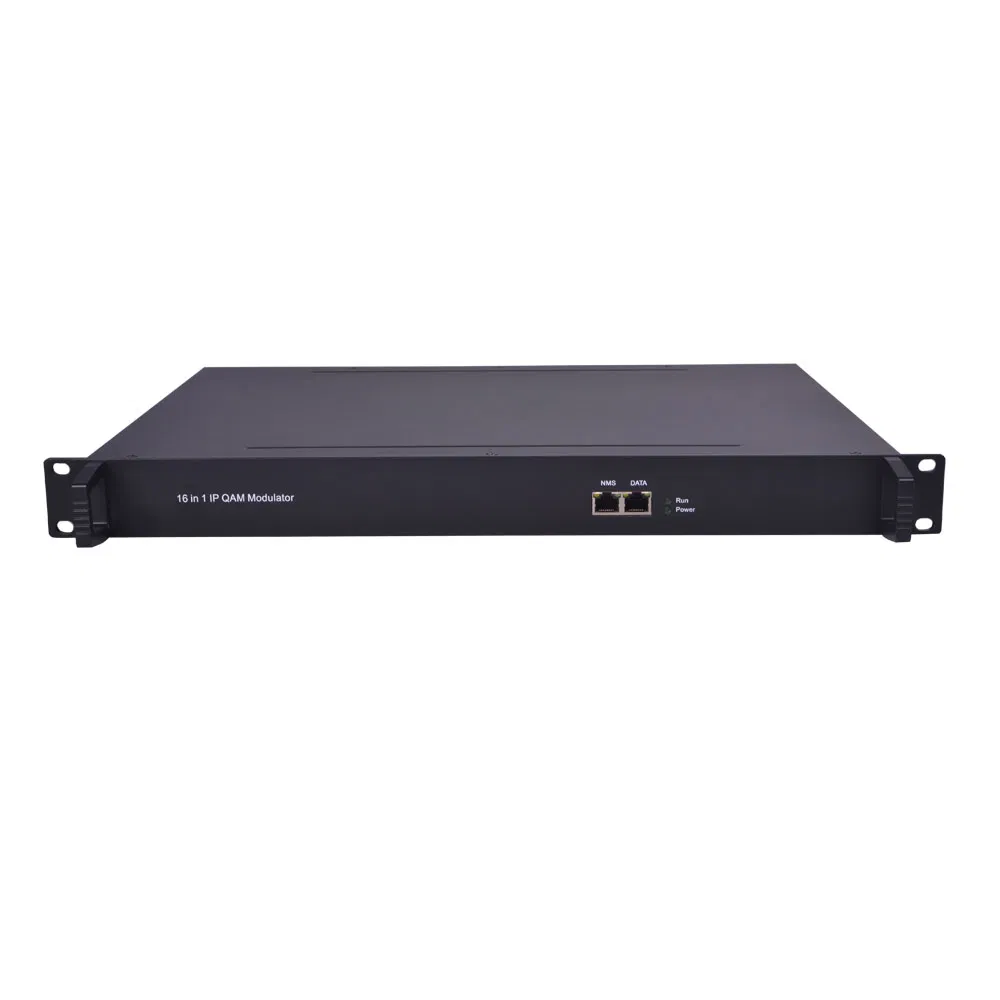

SFT3316 16 in 1 IP QAM modulator is the latest generational Mux-scrambling-modulating all-in-one device . It has 16 multiplexing channels,
16 scrambling channels and 16 QAM (DVB-C) modulating channels, and supports maximum 512 IP input through the 3 GE ports and
16 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. The device is also characterized with high integrated level,
high performance and low cost. This is very adaptable to newly generation CATV broadcasting system.*
3 GE ports (max 512 IP in):
Data1 & Data2 bi-directional ports, max 512 IP in, 16 IP out
Data port (located on front panel), max 128 IP in
*
Max 840Mbps for each GE input
*
Support accurate PCR adjusting
*
Support CA filtering, PID remapping and PSI/SI editing
*
Supports up to 180 PIDS remapping per channel
*
Support DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and
ETSI 103 197
*
Support 16 IP output through Data1 & Data2 over UDP/RTP/RTSP
*
16 non-adjacent QAM carriers output, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B
*
Support RS (204,188) encoding
*
Support Web-based Network management
