基本信息产品详情证书
基本信息
型号 | ZHC358-04 |
RF Out | FM |
编码 | Dds |
调制方法 | Dds |
类型 | 无线电信号调制 |
交通政策包 | 纸 |
规格 | 四通道 |
商标 | ZHC |
起源 | 中国 |
商品编码 | 8525500000 |
生产能力 | 每月10万套 |
产品详情
Product Description
Preview

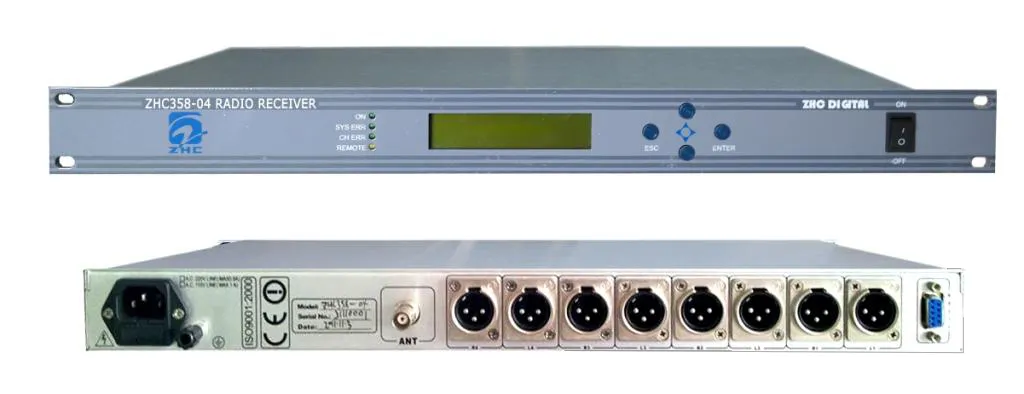

4-Channel FM Broadcast Demodulator
Preview

Preview
Introduction:
The 4-Channel FM radio demodulator can demodulate 4-channel FM radio programs at same time in high-quality. It can be used for radio broadcast transposer , multi-channel FM signal monitoring and any other occasions
where multi-channel and high-quality is required.
overview
ZHC358-04 FM demodulator is a 4-Channel broadcasting radio receiver. It has high sensitivity for receiving. The LCD
will display the level of output audio signal. It has standard communication interface for telemetry.It can be used for radio broadcast transposer , multi-channel FM signal monitoring and any other occasions where multi-channel and high-quality is required.
This product uses the latest DSP processing receiver
IC, while high-quality FM demodulation, it can detect and display each receiving channel's field strength values, the RF signal SNR, stereo status, output audio level etc. at the same time. These parameters can be read by other hosts through the communication interface.
Features
Built-in receiver amplifier circuit improves the receiving sensitivity.
It can receive well in serious RF noise
Output audio quality can reach professional broadcast-level
Output volume can be adjusted electronically or can be mute
LCD display of reception field strength, SNR, stereo audio signal histogram etc.
RS232 telemetry interface
SPECIFICATIPONS
1. Receiving frequency range
87MHz~108MHz
2. Receiving sensitivity
<1uV (0dBuV)
3. Receiver SNR
>3dB
4. De-emphasis
50uS
5. Audio output impedance (balanced, XLR)
600Ω
6. Volume Gain
-20dB~+6dB
7. Stereo Separation
≥40dB(type.45dB)
8. Audio SNR
≥60dB
9. Audio frequency response
≤0.5dB
10. Distortion(stereo)
≤0.3%
11. Field Strength, SNR, the Volume level can be displayed on LCD

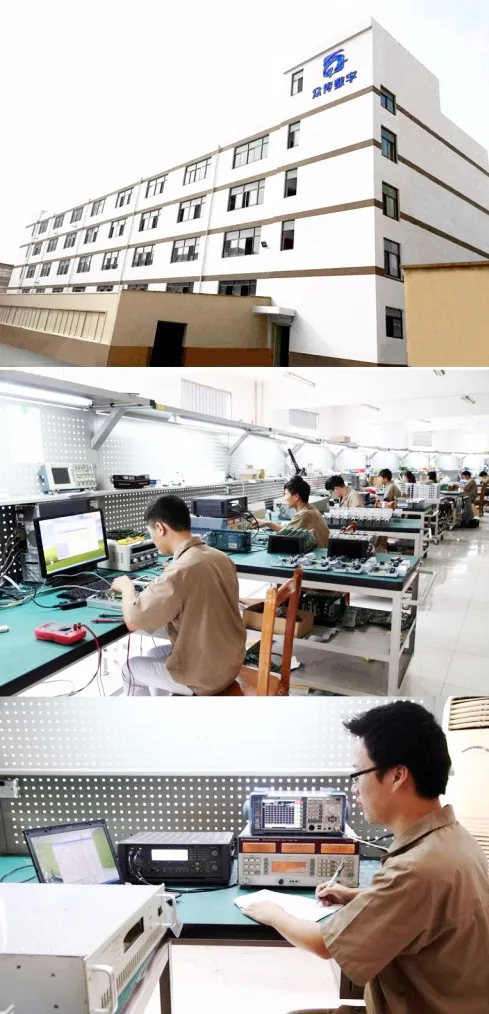

Company Show:
Common Problems:
The 4-Channel FM radio demodulator can demodulate 4-channel FM radio programs at same time in high-quality. It can be used for radio broadcast transposer , multi-channel FM signal monitoring and any other occasions
where multi-channel and high-quality is required.
overview
ZHC358-04 FM demodulator is a 4-Channel broadcasting radio receiver. It has high sensitivity for receiving. The LCD
will display the level of output audio signal. It has standard communication interface for telemetry.It can be used for radio broadcast transposer , multi-channel FM signal monitoring and any other occasions where multi-channel and high-quality is required.
This product uses the latest DSP processing receiver
IC, while high-quality FM demodulation, it can detect and display each receiving channel's field strength values, the RF signal SNR, stereo status, output audio level etc. at the same time. These parameters can be read by other hosts through the communication interface.
Features
Built-in receiver amplifier circuit improves the receiving sensitivity.
It can receive well in serious RF noise
Output audio quality can reach professional broadcast-level
Output volume can be adjusted electronically or can be mute
LCD display of reception field strength, SNR, stereo audio signal histogram etc.
RS232 telemetry interface
SPECIFICATIPONS
1. Receiving frequency range
87MHz~108MHz
2. Receiving sensitivity
<1uV (0dBuV)
3. Receiver SNR
>3dB
4. De-emphasis
50uS
5. Audio output impedance (balanced, XLR)
600Ω
6. Volume Gain
-20dB~+6dB
7. Stereo Separation
≥40dB(type.45dB)
8. Audio SNR
≥60dB
9. Audio frequency response
≤0.5dB
10. Distortion(stereo)
≤0.3%
11. Field Strength, SNR, the Volume level can be displayed on LCD
Company Show:
Common Problems:
Preview

Preview

Preview

Preview
Q1. What these equipments used for?
A1. We are original manufacturer in FM Radio &
TV Broadcasting equipments; they are professional used for FM Radio &
TV Broadcasting Station (Transmitting equipment.)
Q2. What equipment &
solution your company can provide?

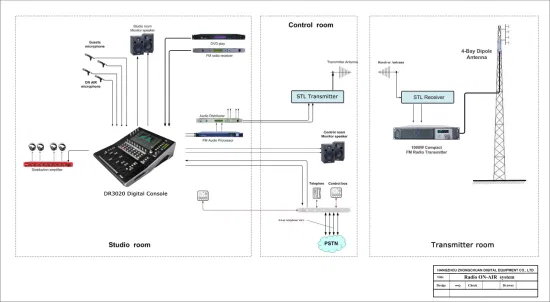

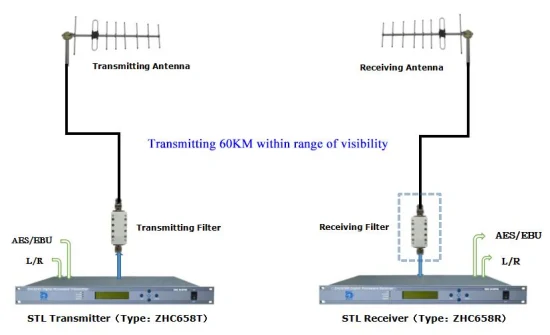

A2. We can do complete solution for FM Radio Station System. It includes:Studio--Link--Transmitter--Cables--Antenna.
We also can provide complete Transmitting part of TV Station. It includes:Link-Transmitter-Cables-Antenna.
Q3. How large areas can One Station cover?
A3. One FM or TV Station can cover one city or one town.
The Maximum cover ranges of one station can not over 100KM Radius because the Earth is Curve.
You can use Multiple Stations &
Different Frequency to cover larger area.
Q4. How do I
choose suitable equipments for my station?
A4. The most import factors are Power and Frequency.
We need to know the Power and Frequency you need exactly.
How long the distances do you want to cover in Radius?
How height your Antenna can be installed?
Q5. How to calculate Broadcasting equipment Cover Range?
A5. The Cover Range depends on 4
factors:1. Power from Transmitter; 2. Height of Antenna; 3. Gain from Antenna; 4. Around Environment.
Then we can know the cover range of your station.
Q6. Is the Frequency Adjustable?
A6. FM Radio Band Frequency is 87~108MHz, TV Band Frequency includes UHF/VHF band.
For FM Radio Transmitter; Power Below 2KW is all adjustable. Above 2KW would be narrow.
For TV Transmitter; all Frequency Band is very Narrow, only can contain around 3
Channels; so it's not adjustable.
Q7. Is your Analog TV Transmitter can be upgraded to Digital?
A7. Yes, we can. But the Frequency Band should be the same.
The only difference between Analog &
Digital TV Transmitter is its TV Modulator.
After upgrade to Digital, the Power from TV Transmitter reduced 5
times.
For example: 1KW analog TV Transmitter can be upgraded to 200W Digital TV Transmitter.
Q8. How to do installation of these equipments?
A8. For small power station, the equipments are very easy for installation.
For large power station, we can send our engineer to your country to help you do the installation, but you should pay the cost.
We also can do training for your engineer here in our company.
Q9. How to operate these broadcasting equipments?
A9. We provide All-English user manual; All-English operation software in our equipment.
Q10. What about after sales?
A10. The warranty time is one year after goods leaving factory.
We can provide technical support from internet or in our company.
We can send spare parts to you directly when the equipment damaged.
