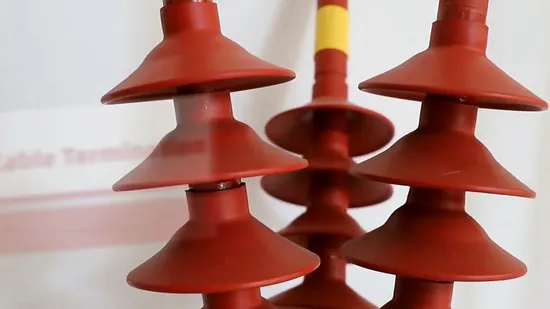

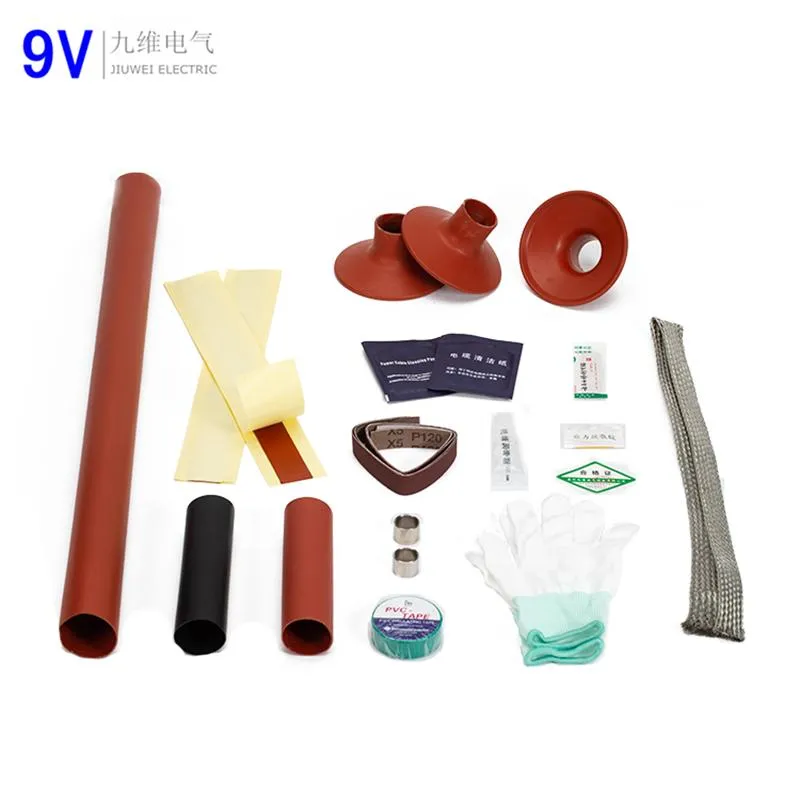

Heat-shrinkable cable terminalsIt commonly known as heat-shrinkable cable heads, are widely used on the terminals of cross-linked cables or oil-immersed cables with voltage levels of 35KV and below. Compared with the traditional cable accessories, the intermediate connection of the cable has the characteristics of small size, light weight, safety and reliability, and convenient installation.

Name
Item No.
Suit cables' sectional area (sqmm)
0.6/1kV Single Core Heat Shrinkable Termination Kits
VSZ-1/1.0
10~16
0.6/1kV Single Core Heat Shrinkable Joint
VSJ-1/1.0
VSZ-1/1.1
25~50
VSJ-1/1.1
VSZ-1/1.2
70~120
VSJ-1/1.2
VSZ-1/1.3
150~240
VSJ-1/1.3
VSZ-1/1.4
300~400
VSJ-1/1.4

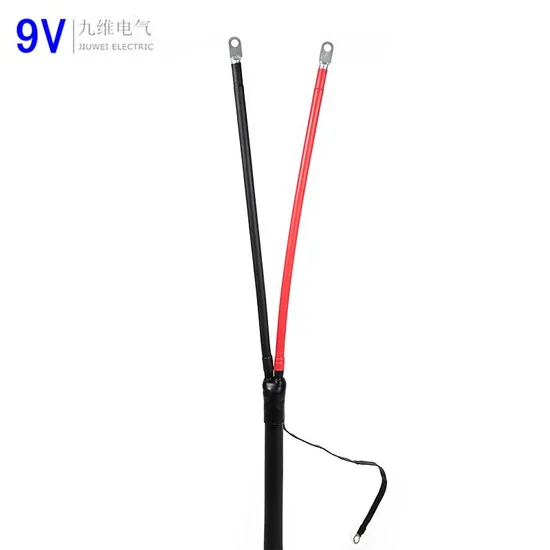

0.6/1kV 2-cores Heat Shrinkable Termination Kits
VSZ-1/2.0
0.6/1kV 2-cores Heat Shrinkable Joint
VSJ-1/2.0
VSZ-1/2.1
VSJ-1/2.1
VSZ-1/2.2
VSJ-1/2.2
VSZ-1/2.3
VSJ-1/2.3
VSZ-1/2.4
VSJ-1/2.4
0.6/1kV 3-cores Heat Shrinkable Termination Kits
VSZ-1/3.0
0.6/1kV 3-cores Heat Shrinkable Joint
VSJ-1/3.0
VSZ-1/3.1
VSJ-1/3.1
VSZ-1/3.2
VSJ-1/3.2
VSZ-1/3.3
VSJ-1/3.3
VSZ-1/3.4
VSJ-1/3.4
0.6/1kV 4-cores Heat Shrinkable Termination Kits
VSZ-1/4.0
0.6/1kV 4-cores Heat Shrinkable Joint
VSJ-1/4.0
VSZ-1/4.1
VSJ-1/4.1
VSZ-1/4.2
VSJ-1/4.2
VSZ-1/4.3
VSJ-1/4.3
VSZ-1/4.4
VSJ-1/4.4

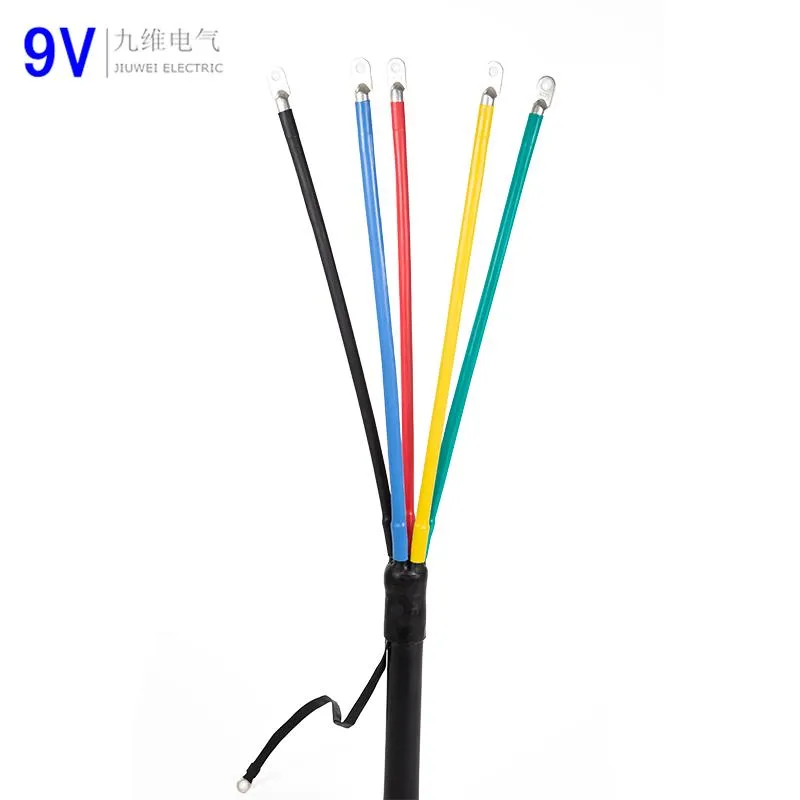

0.6/1kV 5-cores Heat Shrinkable Termination Kits
VSZ-1/5.0
0.6/1kV 5-cores Heat Shrinkable Joint
VSJ-1/5.0
VSZ-1/5.1
VSJ-1/5.1
VSZ-1/5.2
VSJ-1/5.2
VSZ-1/5.3
VSJ-1/5.3
VSZ-1/5.4
VSJ-1/5.4
Test Project
Test Method
Test Result/Conclusion
1min Power Frequency Voltage (wet state)
4kV, No breakdown no flashover
No flashover and breakdown of the combined sample under 4kV, 1min wet state
Heating Cycles Voltage Test
Conductor heating to 90-95 ºC, each cycle for 8h, including heating 5h, cooling 3h, a total of three cycles
Complete three load cycle tests as required by the standard
4H Power Frequency Voltage Test
2.4kV, No breakdown no flashover
No flashover and breakdown of combined specimens
8.7/15KV-Heat Shrinkable Cable Accessories
8.7/15kV Single Core Heat Shrinkable Indoor Termination Kits
VRSN-10/1.1

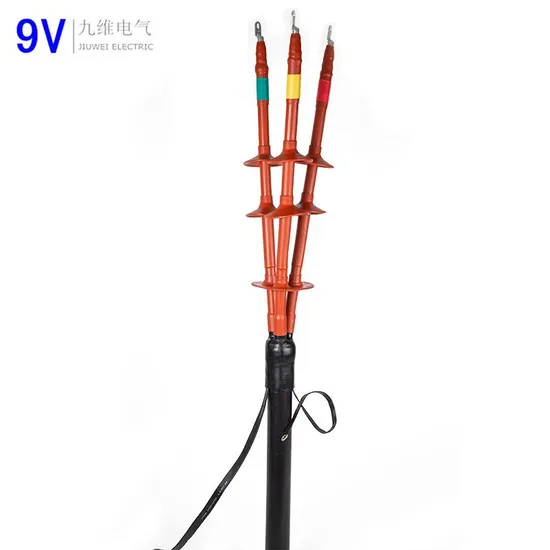

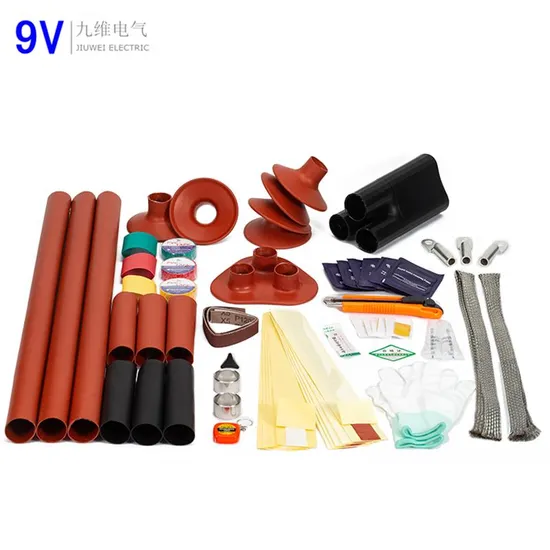

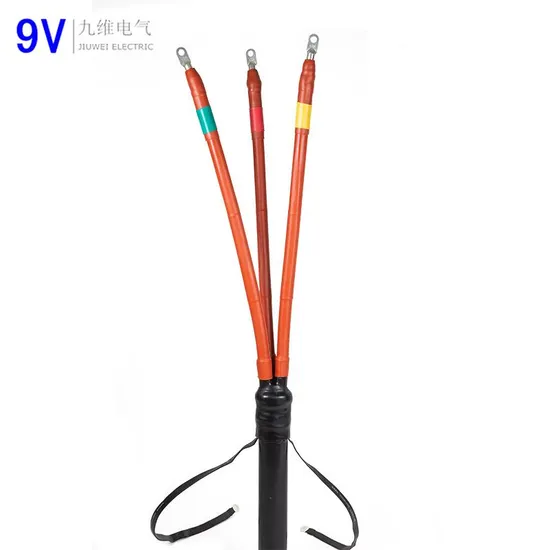

8.7/15kV 3-cores Heat Shrinkable Indoor Termination Kits
VRSN-10/3.1
VRSN-10/1.2
VRSN-10/3.2
VRSN-10/1.3
VRSN-10/3.3
VRSN-10/1.4
VRSN-10/3.4
VRSN-10/1.5
500~630
VRSN-10/3.5

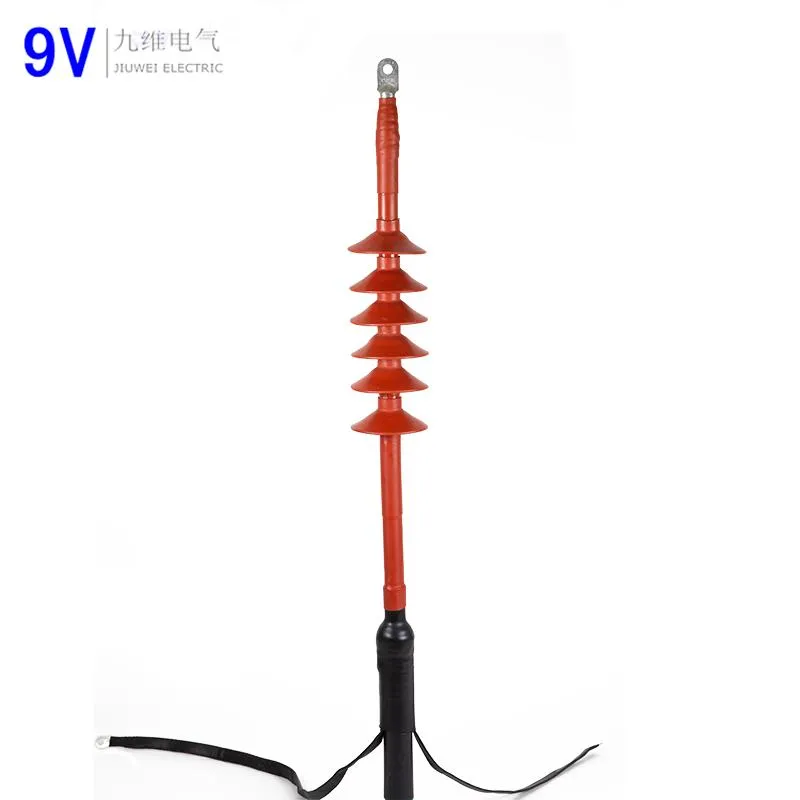

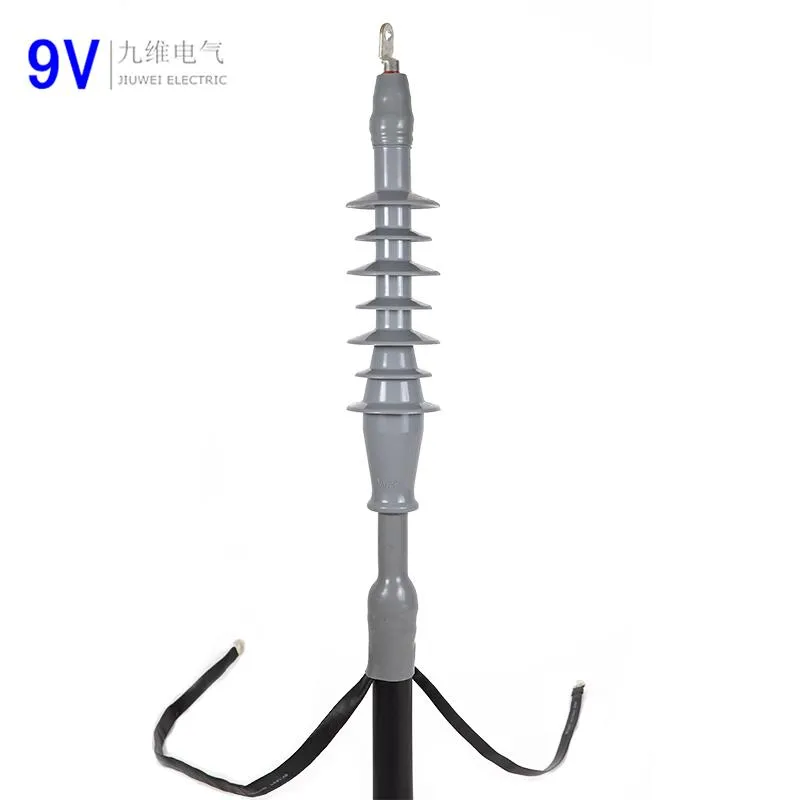

8.7/15kV Single Core Heat Shrinkable Outdoor Termination Kits
VRSW-10/1.1

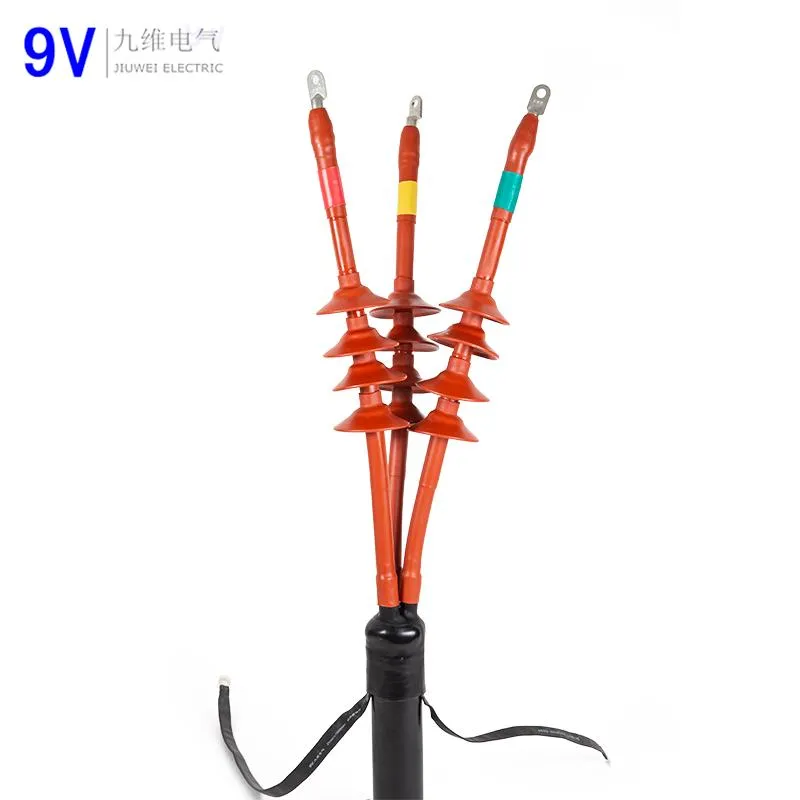

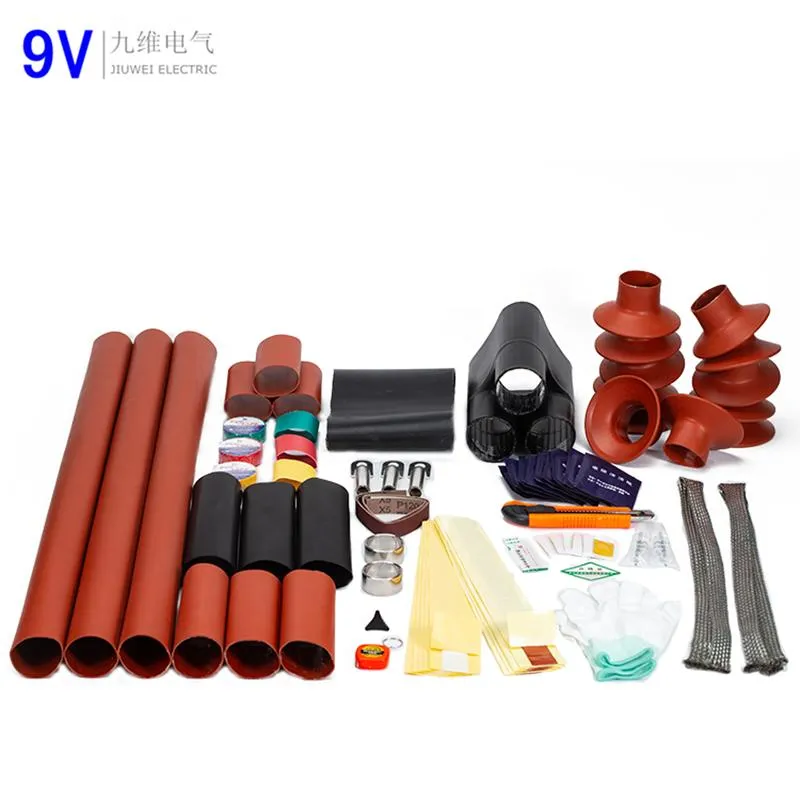

8.7/15kV 3-cores Heat Shrinkable Outdoor Termination Kits
VRSW-10/3.1
VRSW-10/1.2
VRSW-10/3.2
VRSW-10/1.3
VRSW-10/3.3
VRSW-10/1.4
VRSW-10/3.4
VRSW-10/1.5
VRSW-10/3.5
8.7/15kV Single Core Heat Shrinkable Joint
VRSJ-10/1.1

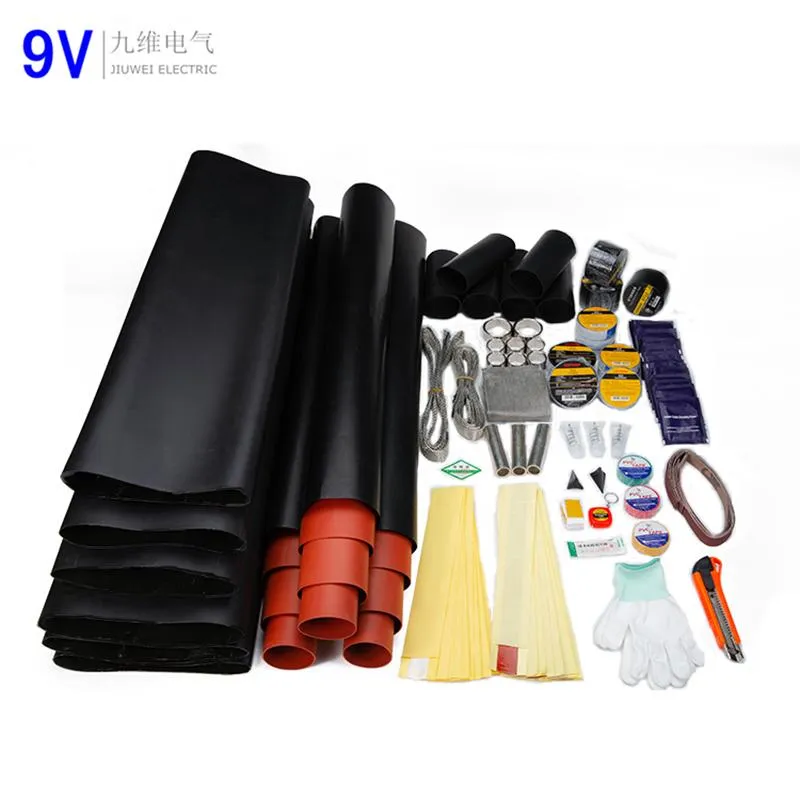

8.7/15kV 3-cores Heat Shrinkable Joint
VRSJ-10/3.1
VRSJ-10/1.2
VRSJ-10/3.2
VRSJ-10/1.3
VRSJ-10/3.3
VRSJ-10/1.4
VRSJ-10/3.4
VRSJ-10/1.5
VRSJ-10/3.5
Standard Requirements
45kV, No breakdown no flashover
No flashover and breakdown of the combined sample under 45kV, 1min wet state
Partial discharge test 13kV devolution power not more than 20PC
13kV≤20PC
A, B, C three-phase discharge capacity is 2PC under 13kV
Impulse Voltage Test
105kV positive and negative polarity 10 times each, no flashover and breakdown of the combined specimen
105kV positive and negative polarity 10 times each, no flashover and breakdown
Negative Polarity DC Voltage Test
52kV, No breakdown no flashover
52kV, 15min, No flashover and breakdown of combined specimens
35kV, No breakdown no flashover
35kV, 4h, No flashover and breakdown of combined specimens
12/20KV 18/20KV-Heat Shrinkable Cable Accessories
Spec. (Single Core)
Spec. (3-cores)
12/20kV
18/20kV
12/20kV Single Core / 3-cores Heat Shrinkable Indoor Termination Kits
VRSN-20/1.1
VRSN-20/3.1
35~70
------
VRSN-20/1.2
VRSN-20/3.2
95~185
VRSN-20/1.3
VRSN-20/3.3
240~400
VRSN-20/1.4
VRSN-20/3.4
12/20kV Single Core / 3-cores Heat Shrinkable Outdoor Termination Kits
VRSW-20/1.1
VRSW-20/3.1
VRSW-20/1.2
VRSW-20/3.2
VRSW-20/1.3
VRSW-20/3.3
VRSW-20/1.4
VRSW-20/3.4
12/20kV Single Core / 3-cores
Heat Shrinkable Joint
VRSJ-20/1.1
VRSJ-20/3.1
VRSJ-20/1.2
VRSJ-20/3.2
VRSJ-20/1.3
VRSJ-20/3.3
VRSJ-20/1.4
VRSJ-20/3.4
54kV, No breakdown no flashover
No flashover and breakdown of the combined sample under 54kV, 1min wet state
20kV≤20PC
A, B, C three-phase discharge capacity is 1pc under 20kV
125kV positive and negative polarity 10 times each, no flashover and breakdown of the combined specimen
125kV positive and negative polarity 10 times each, no flashover and breakdown
156kV, No breakdown no flashover
156kV, 15min, No flashover and breakdown of combined specimens
104kV, No breakdown no flashover
104kV, 4h, No flashover and breakdown of combined specimens
26/35KV-Heat Shrinkable Cable Accessories
26/35kV Single Core Heat Shrinkable Indoor Termination Kits
VRLN-35/1.1
50~95
26/35kV 3-cores Heat Shrinkable Indoor Termination Kits
VRLN-35/3.1
VRLN-35/1.2
120~185
VRLN-35/3.2
VRLN-35/1.3
VRLN-35/3.3
VRLN-35/1.4
VRLN-35/3.4
26/35kV Single Core Heat Shrinkable Outdoor Termination Kits
VRLW-35/1.1
26/35kV 3-cores Heat Shrinkable Outdoor Termination Kits
VRLW-35/3.1
VRLW-35/1.2
VRLW-35/3.2
VRLW-35/1.3
VRLW-35/3.3
VRLW-35/1.4
VRLW-35/3.4
26/35kV Single Core Heat Shrinkable Joint
VRLJ-35/1.1
26/35kV 3-cores Heat Shrinkable Joint
VRLJ-35/3.1
VRLJ-35/1.2
VRLJ-35/3.2
VRLJ-35/1.3
VRLJ-35/3.3
VRLJ-35/1.4
VRLJ-35/3.4
105kV, No breakdown no flashover
No flashover and breakdown of the combined sample under 105kV, 1min wet state
Partial discharge test 13kV devolution power not more than 10PC
39kV≤10PC
A, B, C three-phase discharge capacity is 4pc under 39kV
250kV positive and negative polarity 10 times each, no flashover and breakdown of the combined specimen
250kV positive and negative polarity 10 times each, no flashover and breakdown
