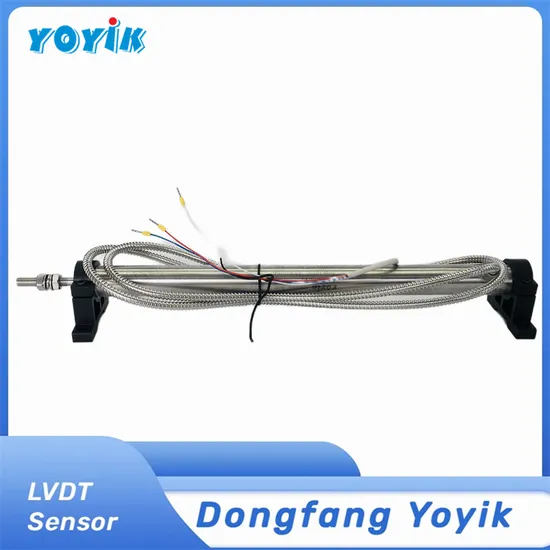

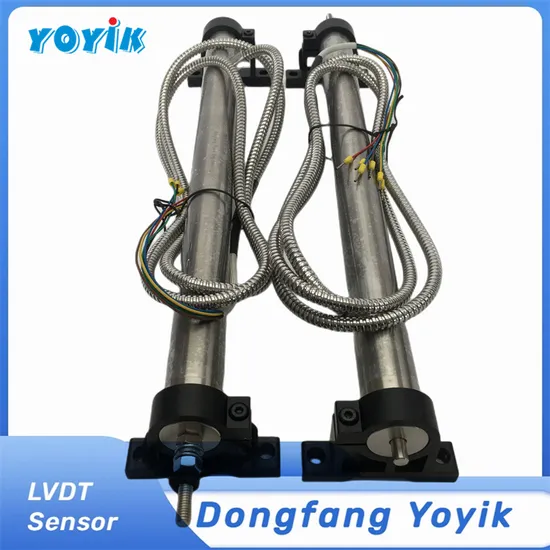

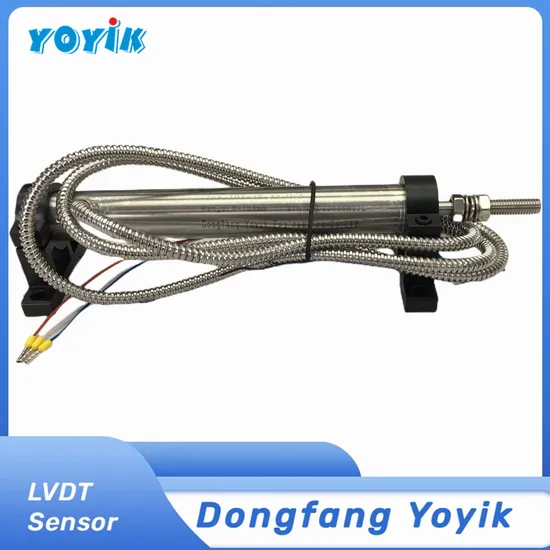

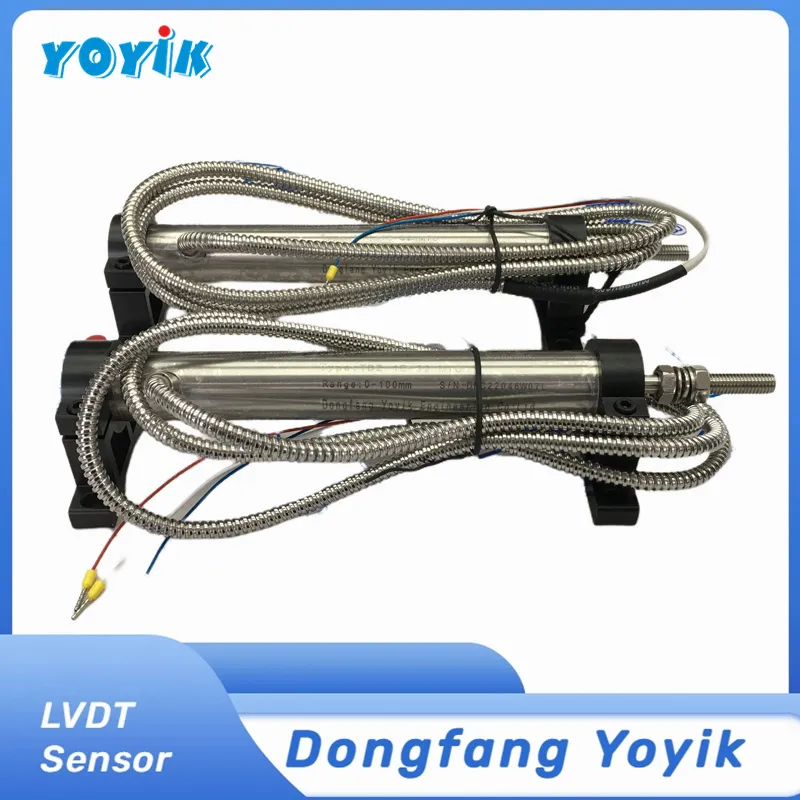

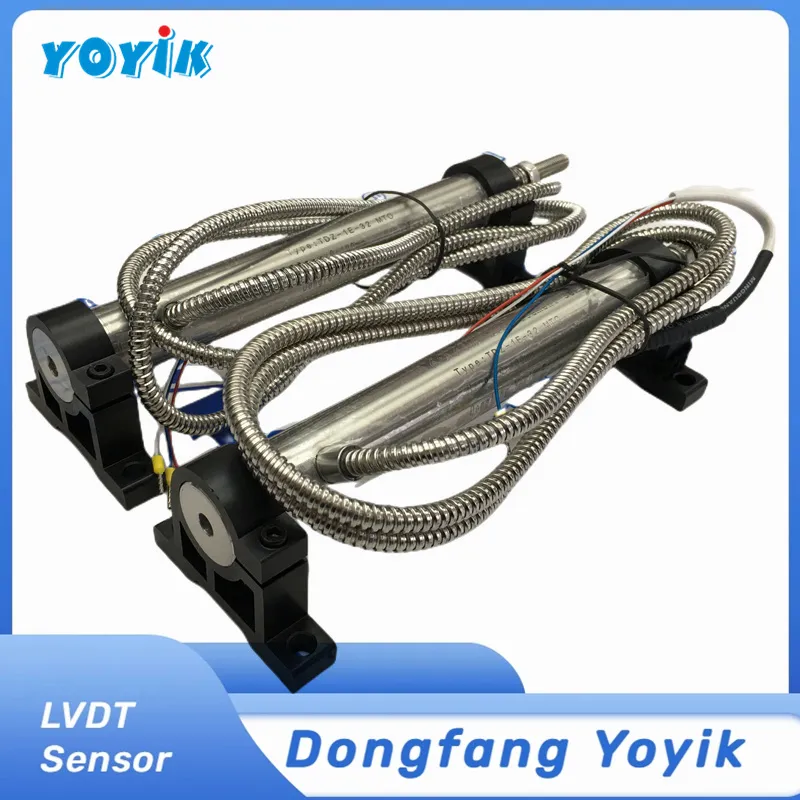

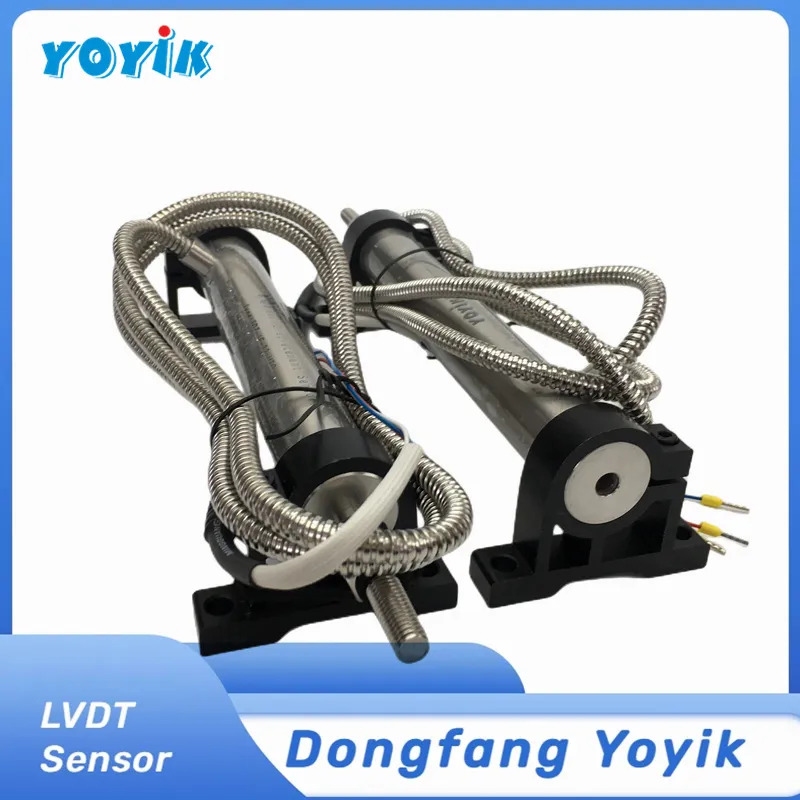

The LVDT displacement sensor 1000TD is a high-performance six wire sensor that uses a differential transformer type working principle to achieve high-precision displacement measurement. The sensor consists of three sets of coils, one set of primary coils, and the outgoing wires are brown and yellow; There are two sets of secondary coils, one with black and green outgoing wires, and the other with blue and red outgoing wires. Connecting the green and blue lines as differential outputs can achieve higher sensitivity and lower noise.The LVDT displacement sensor 1000TD has the advantages of small size, high accuracy, stable performance, good reliability, and long service life. Its linear range is 0-50mm, with a linearity of ± 0.3% of the full stroke, and the operating temperature range is -40-150 ºC (conventional) and -40-210 ºC (high temperature). In addition, the sensor also has a sensitivity coefficient of ± 0.03% FSO./ºC, which can achieve high-precision temperature compensation and measurement. The lead wire adopts six polytetrafluoroethylene insulated sheathed cables, and is equipped with stainless steel sheathed hoses externally, which can meet the installation and usage requirements in various complex environments.The LVDT displacement sensor 1000TD is suitable for various occasions that require high-precision displacement measurement, such as mechanical processing, precision measurement, automation control, and other fields. Its excellent performance and reliability can meet the needs of various industrial applications, improve production efficiency and product quality. In addition, the sensor also has advantages such as strong anti-interference ability and long service life, which can achieve long-term stable operation.In summary, the LVDT displacement sensor 1000TD is a high-performance and high-precision six wire sensor with advantages such as small size, high accuracy, stable performance, good reliability, and long service life. It is suitable for various occasions that require high-precision displacement measurement.
Product Parameters

Product Features:
small size, high accuracy,
stable performance,
good reliability
long service life.

Applications of LVDT Sensor:
Suitable for various industrial occasions that require high-precision displacement measurement

Related Products
Yoyik offers different types of
LVDT sensorsr or industrial users:
SENSOR; POSITION LVDT
3000TD 0-150 MM
SENSOR; POSITION LVDT
1000TD 0-50 MM
SENSOR; POSITION LVDT
2000TD 0-100 MM
Sensor
12000TD 0-600mm
Sensor
14000TD 0-700mm
Sensor
20000TD 0-1000mm
Sensor
3000TD 0-150mm
Sensor
5000TDG-15-01-01 0-250mm
Sensor
6000TDG-15-01-01 0-300mm
Sensor
4000TDG-15-01-01 0-200mm
LINEAR VARIABLE DIFFERENTIAL
2000TD
LVDT
4000TD
LVDT displacement sensor
4000TD

Standard & solid packaging ensures your goods safety.

Various professional packages at your choice

Multiple choice of reliable and
cost-effective
shipping methods available.

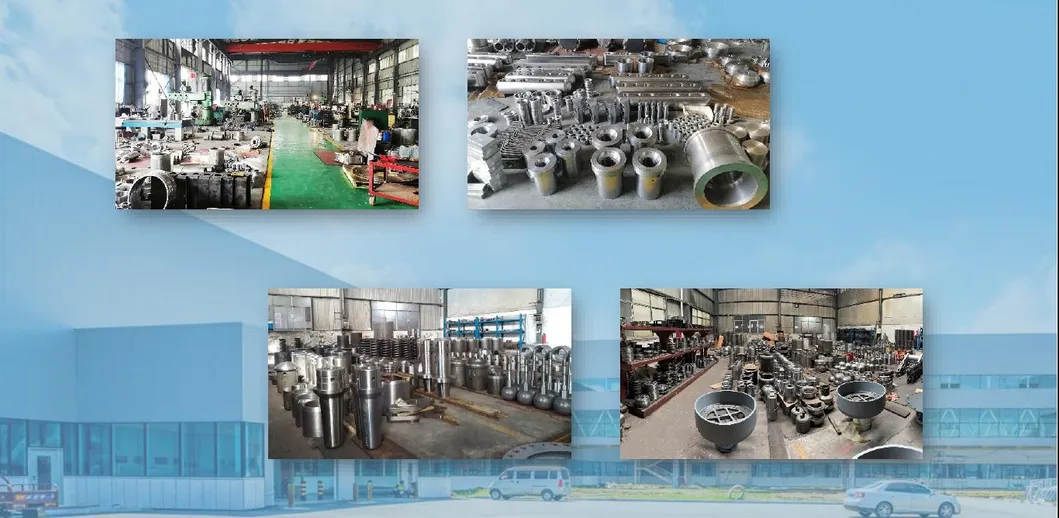

Dongfang Yoyik Engineering Co., Ltd
