Basic Info.
Model NO. | 42BYGH1101-B-265L, 42BYGH1102-B-20 |
Excitation Mode | HB-Hybrid |
Function | Driving |
Number of Poles | 8 |
Operate Mode | 2 Phase-8 Parts |
Type | Magnetic-Electric |
Certification | ISO9001, RoHS, CE |
Brand | Shengyang |
Motor Series | 42 Bygh |
Step Angle | 1.8 Degree |
Shaft End Length | 265 mm (10.43 in), 20 mm (0.79 in) |
Shaft | Screw Shaft, Round Shaft |
Connectors | Connectors, Lead Wires |
Motor Length | 34.3 mm (1.35 in) Max |
Holding Torque | 240mnm (33.98 Oz-in), 280mnm (39.6 Oz-in) |
Rated Current | 0.4 a DC, 0.84 a DC |
Payment Term | 30% Deposit, 70% Balance Before Shipment. |
Usage | 3D printer |
Transport Package | Green Packaging |
Specification | RoHS, ISO9001: 2015 |
Trademark | SY |
Origin | Zhongshan |
HS Code | 8501109990 |
Production Capacity | 350000 PCS/Month |
Product Description
Product Description
Preview

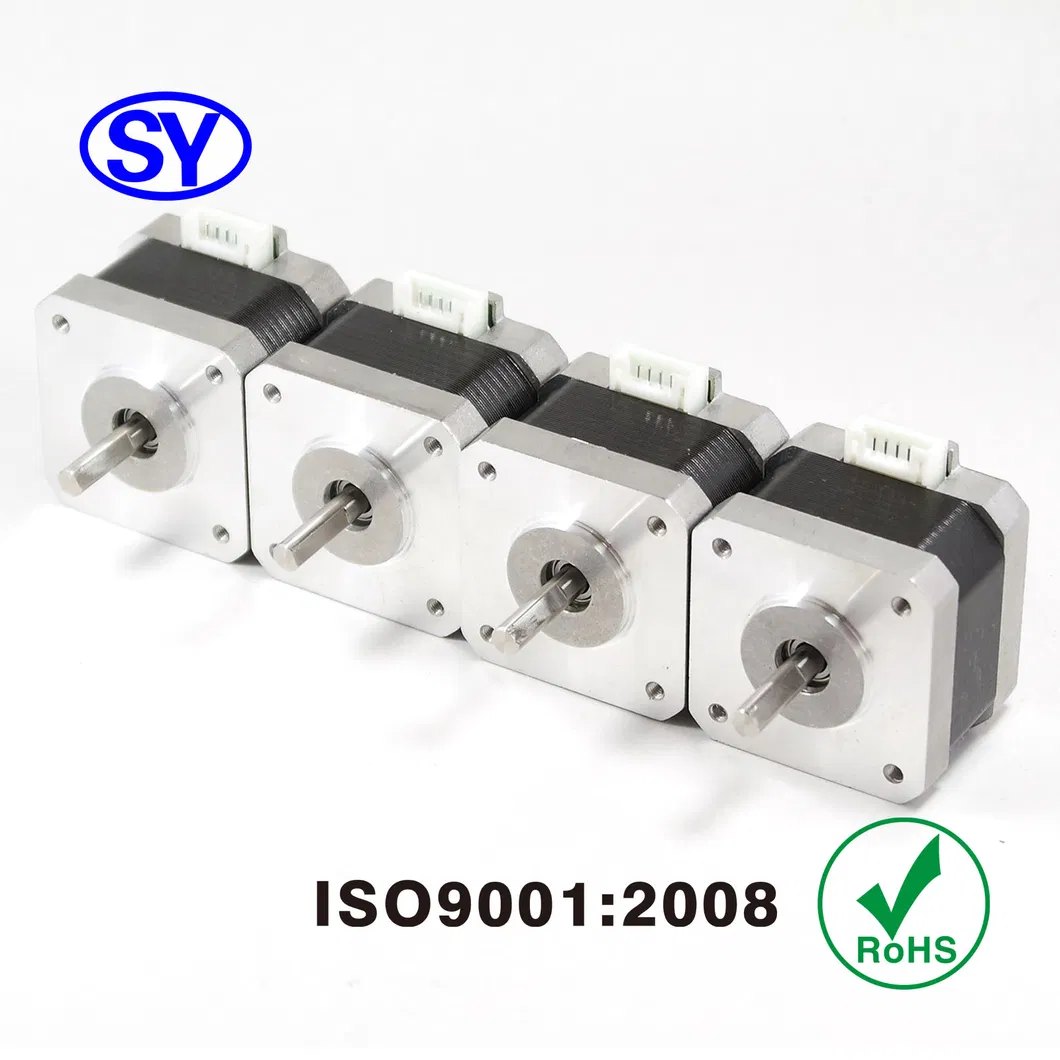

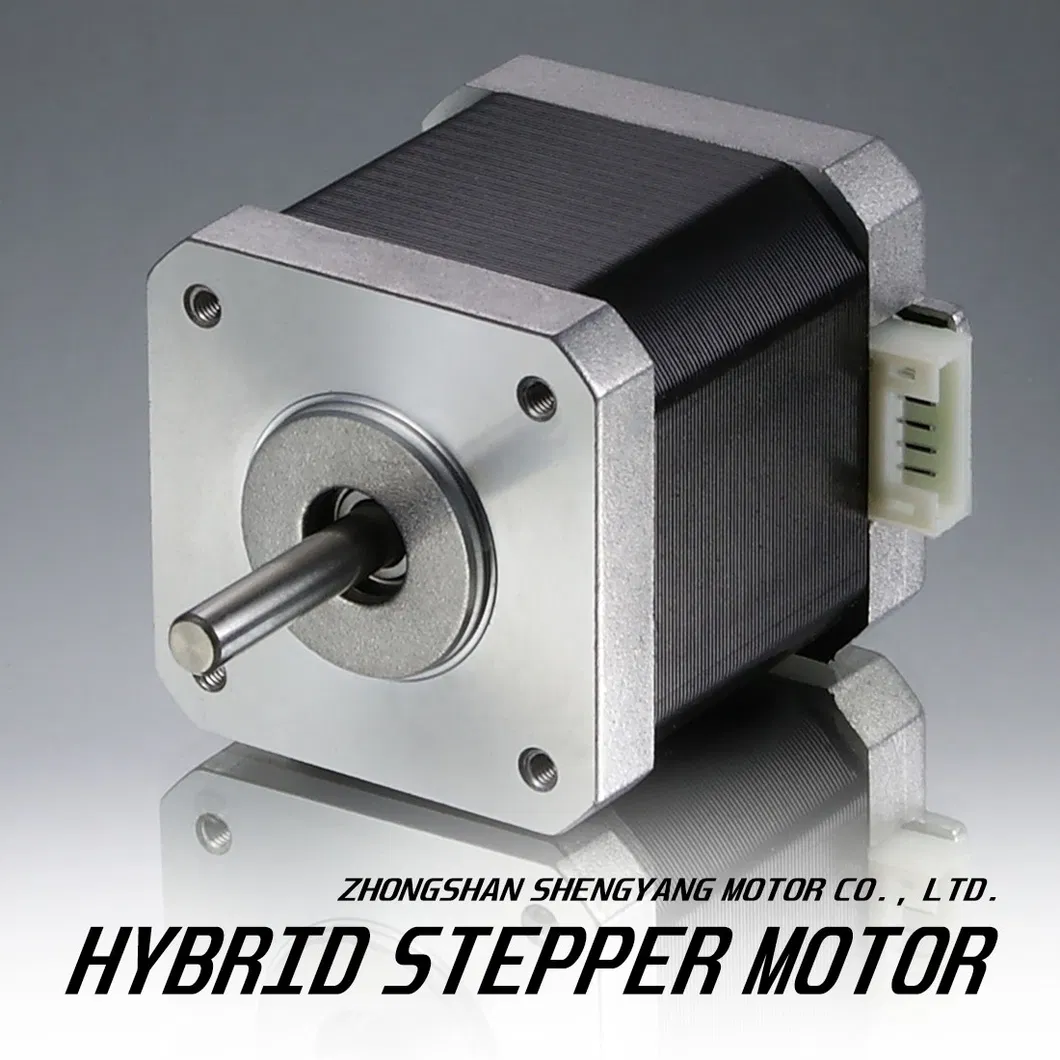

42 MM (NEMA 17) Electrical Motor for 3D Printer
Stepper motors, AC servo motors and brushless dc motors are avaiable to customized for the world, NEMA 11, 14, 16, 17, 23, 24, 34 stepper motor, 50W, 100W, 200W, 400W, 500W, 750W, 1000W, 1200W AC servo motor, and brushless dc motor are all included.The derived products are widely used in
ATM machines, digital
scanners, stylus
printers,
plotters,
slot machines,
CD-ROM
drivers, stage
lighting,
camera lenses,
CNC machines, medical machines,
3D printers for industry and our life.All the derived products of us can be customized for your requirement.Features:
High torque
Low noise
Smallsize
1. Specifications:
Motor Model: 42BYGH1101-B-265L, 42BYGH1102-B-20
Step Angle: 1.8° ±
5% full step, no load
Holding Torque: 240 mNm (33.98 oz-in), 280mNm (39.6oz-in)
Rated Current: 0.4 A
DC, 0.84 A
DC
Motor Length: 34.3 mm (1.35 in) Max
Shaft End Length: 265mm (10.43 in), 20mm (0.79 in)

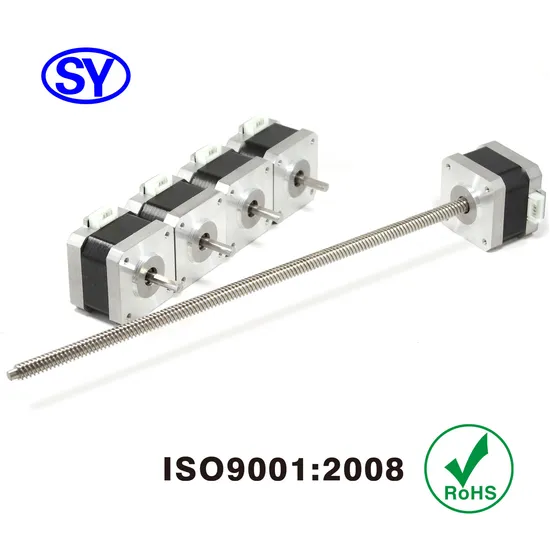

Shaft: Screw Shaft, Round Shaft
Connectors: Plug-in, Lead Wires
Ambient Temperature: -24 ºC -
+60 ºC
Relative humidity: 90% MAX
Resistance Accuracy: ±
10%
Insulation Resistance: Larger than 100 mΩ 500 V
DC
Dielectric Strength: 600 V
AC for 1S, leakage current less than 1mA
2.Note:
Performance and parameters can be customized, just simply send your motor diagram or samples to us, the best price will be sent to you soon for your reference
Pricing is decided by the motor's performace and parameters, most importantly decided by your requirment, contact us and get the latest the price list.
3.Payment term:
Stepper motors, AC servo motors and brushless dc motors are avaiable to customized for the world, NEMA 11, 14, 16, 17, 23, 24, 34 stepper motor, 50W, 100W, 200W, 400W, 500W, 750W, 1000W, 1200W AC servo motor, and brushless dc motor are all included.The derived products are widely used in
ATM machines, digital
scanners, stylus
printers,
plotters,
slot machines,
CD-ROM
drivers, stage
lighting,
camera lenses,
CNC machines, medical machines,
3D printers for industry and our life.All the derived products of us can be customized for your requirement.Features:
High torque
Low noise
Smallsize
1. Specifications:
Motor Model: 42BYGH1101-B-265L, 42BYGH1102-B-20
Step Angle: 1.8° ±
5% full step, no load
Holding Torque: 240 mNm (33.98 oz-in), 280mNm (39.6oz-in)
Rated Current: 0.4 A
DC, 0.84 A
DC
Motor Length: 34.3 mm (1.35 in) Max
Shaft End Length: 265mm (10.43 in), 20mm (0.79 in)
Shaft: Screw Shaft, Round Shaft
Connectors: Plug-in, Lead Wires
Ambient Temperature: -24 ºC -
+60 ºC
Relative humidity: 90% MAX
Resistance Accuracy: ±
10%
Insulation Resistance: Larger than 100 mΩ 500 V
DC
Dielectric Strength: 600 V
AC for 1S, leakage current less than 1mA
2.Note:
Performance and parameters can be customized, just simply send your motor diagram or samples to us, the best price will be sent to you soon for your reference
Pricing is decided by the motor's performace and parameters, most importantly decided by your requirment, contact us and get the latest the price list.
3.Payment term:
Preview

Preview
T/T in advance, 30% deposit, 70% balance before shipment.
Preview

Preview

Preview
About Zhongshan Shengyang Motor Co., Ltd.:
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3
million pieces for stepper motor and micro motor. We passed ISO9001:2008 quality system, all of raw materials comply with RoHS, welcome to contact us for more detail.
Contacts: Ms. Rita Law
Mobile/(+86) 13631101993
shengyangmotor.en.made-in-china.com
Zhongshan Shengyang Motor Co., Ltd., established in 2011, has anual production capability of more than 3
million pieces for stepper motor and micro motor. We passed ISO9001:2008 quality system, all of raw materials comply with RoHS, welcome to contact us for more detail.
Contacts: Ms. Rita Law
Mobile/(+86) 13631101993
shengyangmotor.en.made-in-china.com
