基本信息
| 型号编号 | SFT3508B |
| 输入 | 调谐器+亚西 |
| 输出 1 | 512 Spts IP |
| Biss解扰 | 支持 |
| Diseqc功能 | 是的 |
| 调谐器部分 | DVB-S/S2：数字卫星传输标准； DVB-C/T/T2：数字有线电视传输标准、数字地面电视传输标准、先进的地面电视传输系统； ISDB-T：数字地面广播传输系统； ATSC：美国先进电视制式委员会标准 |
| 输出 2 | 16兆符号率IP输出 |
| 电源供应 | 交流电压在100到240伏特之间，频率为50/60赫兹 |
| 运输包 | 标准出口包装 |
| 规格 | 40x40x25厘米 |
| 商标 | 索夫特尔 |
| 起源 | 中国浙江省杭州市 |
| 商品编码 | 8517623400 |
| 生产能力 | 每月 1000 套 |
| 包装大小 | 40.00cm * 40.00cm * 25.00cm |
| 包装总重量 | 12.000公斤 |
| 包装尺寸 | 40.00cm×40.00cm×25.00cm |
| 包装总重量 | 12千克 |
产品详情
Product Description
Preview
DVB- S/S2, DVB-C/T/T2, ISDB-T, ATSC turner CATV to IP Converter, IP Gateway
SFT3508B Tuner to IP Gateway is a head-end interface conversion device which supports MPTS and SPTS output switchable. It supports 16 MPTS or 512 SPTS output over UDP and RTP/RTSP protocol. It is integrated with tuner demodulation (or ASI input) and gateway function, which can demodulate the signal from 16 tuners into IP package, or directly convert the TS from ASI input and tuner into IP package, then output the IP package through different IP address and ports. BISS function is also embedded for tuner input to descramble your tuner input programs.
1.2 Features
Support 16 FTA DVB- S/S2
(DVB-C/T/T2 /ISDB-T/ATSC optional
)input, 2 ASI input
Support BISS descrambling
Support DisEqc function
16 MPTS or 512 SPTS output (MPTS and SPTS output switchable)
2 GE mirrored output
(IP address and port number of GE1 and GE2 are different), up to 850Mbps---SPTS
2 independent GE output port, GE1 + GE2---MPTS
Support PID filtering, re-mapping (Only for SPTS output)
Support "Null PKT Filter" function (Only for
MPTS
output)
Support Web operation

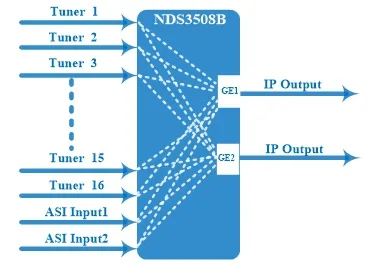

1.3 Inner Principle
SFT3508B Tuner to IP Gateway is a head-end interface conversion device which supports MPTS and SPTS output switchable. It supports 16 MPTS or 512 SPTS output over UDP and RTP/RTSP protocol. It is integrated with tuner demodulation (or ASI input) and gateway function, which can demodulate the signal from 16 tuners into IP package, or directly convert the TS from ASI input and tuner into IP package, then output the IP package through different IP address and ports. BISS function is also embedded for tuner input to descramble your tuner input programs.
1.2 Features
Support 16 FTA DVB- S/S2
(DVB-C/T/T2 /ISDB-T/ATSC optional
)input, 2 ASI input
Support BISS descrambling
Support DisEqc function
16 MPTS or 512 SPTS output (MPTS and SPTS output switchable)
2 GE mirrored output
(IP address and port number of GE1 and GE2 are different), up to 850Mbps---SPTS
2 independent GE output port, GE1 + GE2---MPTS
Support PID filtering, re-mapping (Only for SPTS output)
Support "Null PKT Filter" function (Only for
MPTS
output)
Support Web operation
1.3 Inner Principle
Preview
Preview
1.4 Specifications
Preview
Preview
证书
标题：EMC 同轴电缆证书
Preview
DVB-S/S2、DVB-C/T/T2、ISDB-T、ATSC Turner CATV至IP转换器、IP网关
￥3612.76 ~ ￥6226.4
