Support 8/16/24 HDMI Inputs and ASI Input Digital Encoder Modulator for CATV Headend System

Product Overview

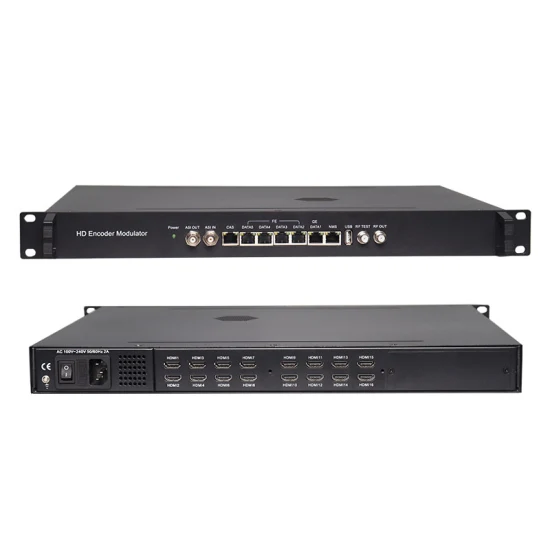

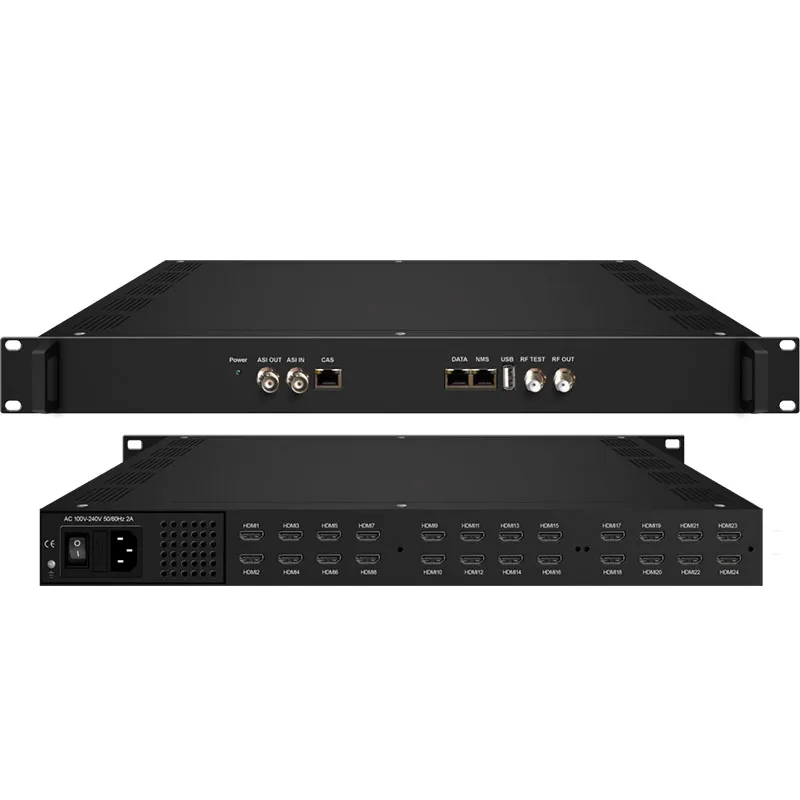

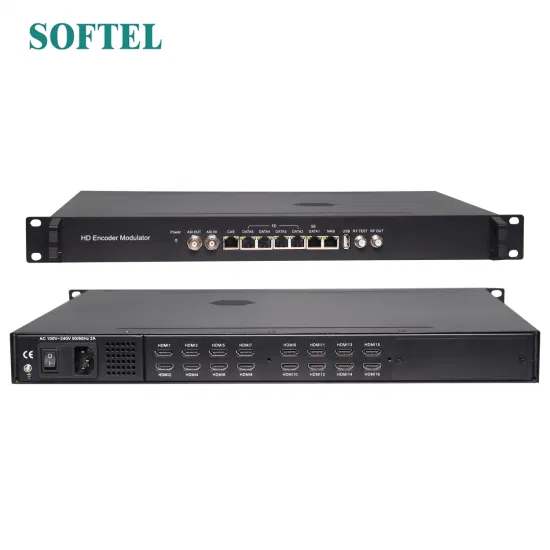

SFT3536S is a professional high integration device which includes encoding, multiplexing, and modulation. It supports 8/16/24 HDMI inputs, 1 ASI input, 1 USB payer input and 128 IP inputs via the GE port. It also supports DVB-C RF out with 12 non-adjacent carries or DVB-T/ATSC RF out with 8 non-adjacent carriers, or ISDB-T RF out with 6/16 non-adjacent carriers, and supports 12/8/6/16 MPTS as mirror of 12/8/6/16 carriers through the GE port and 1 ASI out as mirror of one of the carriers. This full function device makes it ideal for small CATV head end system, and it's a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…
Key Features
* 8/16/24 HDMI inputs, MPEG-4 AVC/H.264 Video encoding
* 1 ASI input for re-mux
* 1 USB Player (Insert the USB Flash drive with "xxx.ts" videos in SFT3536S and play back the content in an easy way; file system FAT32. )
* 128 IP input over UDP and RTPvia GE port
* Each carrier out channel process maximum 32 IP from the GE port(UDP&RTP protocol)
* MPEG1 Layer II, LC-AAC and HE-AAC Audio encoding, AC3 Pass Through and audio gain adjustment
* Support 12 groups multiplexing/DVB-C modulating
* Support 8 groups multiplexing/DVB-T/ATSC modulating---Optional
* Support 6 (or 16) groups multiplexing/ISDB-T modulating---Optional
* Support 1 ASI out as mirror of one of RF outputcarriers---Optional
* Support 12 MPTS IP output over UDP, RTP/RTSP -DVB-C RFout
* Support 8 MPTS IP output over UDP, RTP/RTSP-- DVB-T/ATSC RFout
* Support 6 (or 16) MPTS IP output over UDP, RTP/RTSP-- ISDB-T RFout
* Support LOGO, Caption and QR code insertion(Support multi language)
* Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
* Control via web management, and easy updates via web

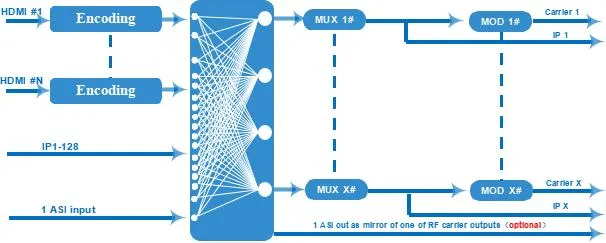

Principle Chart
Technical Specification
Ordering Information
Company Profile\ShippingCustomer feedbackFAQ1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, Western Union, and ****** Trade Assurance. You can select the terms of payment which is more convenient for you.2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.4. How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.(2) The Proforma invoice will be sent for confirmation.(3) After the agreement on the proforma invoice, the customer makes the deposit.(4) Manufacturing will be started as soon as the payment is confirmed by our bank.(5) Ship out the goods within the agreed delivery deadline.5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.6. How about the Warranty?
There are 12 months for the warranty.While the warranty is not responsible for those broken by violence or updated with other brands.
