24 channels H.264 HD to IP andio video IPTV streaming encoder

Product description

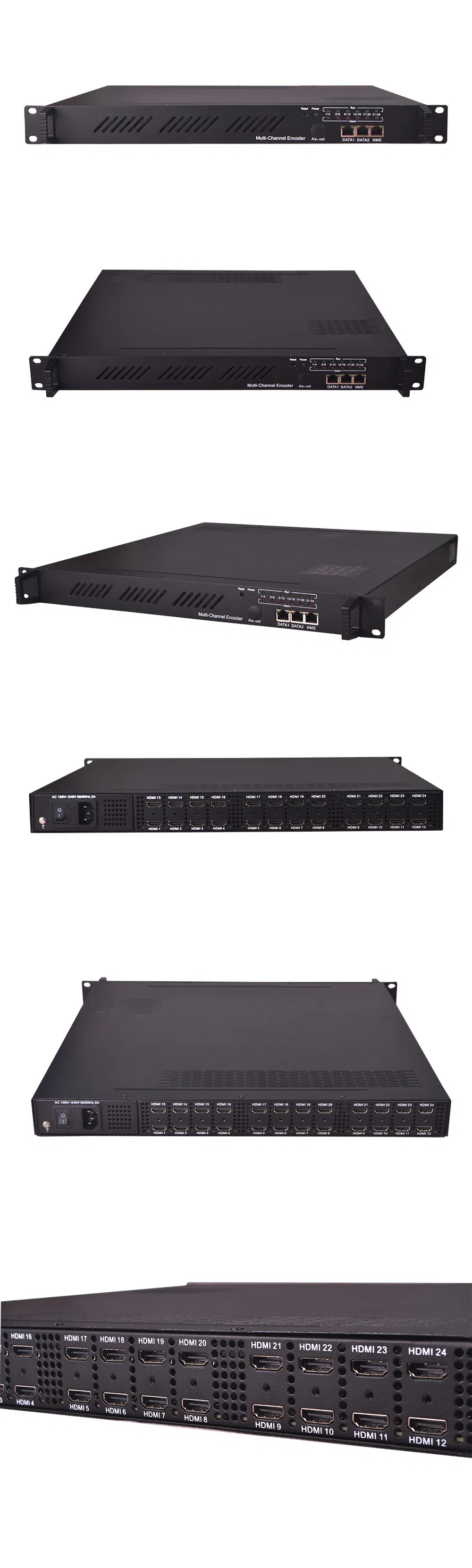

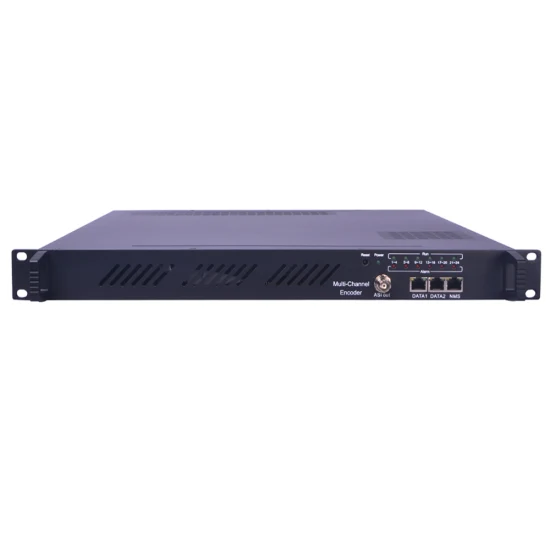

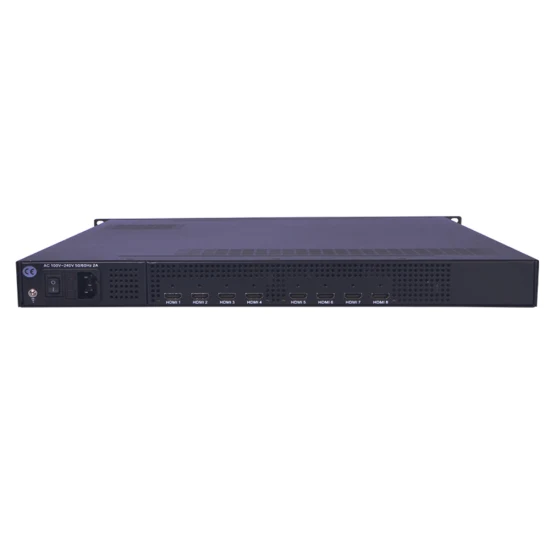

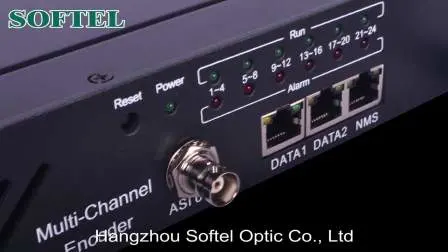

SFT3542L Multi-Channel encoder
is a professional
HD audio & video encoding and multiplexing device. It has
8/12/16/20/24
HDMI
video input interfaces, and
supports
MPEG-4
AVC/H.264
video encoding and MPEG 1 Layer 2 audio encoding. This device can simultaneously encode
8/12/16/20/24
channels
HD audio & video; moreover,
the
IP
output
can support 1MPTS and 8/12SPTS (8/12 HDMI inputs)
IP output from Data1 or Data2, and support 1 MPTS or 16/20/24 SPTS (16/20/24
HDMI inputs).In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.
·

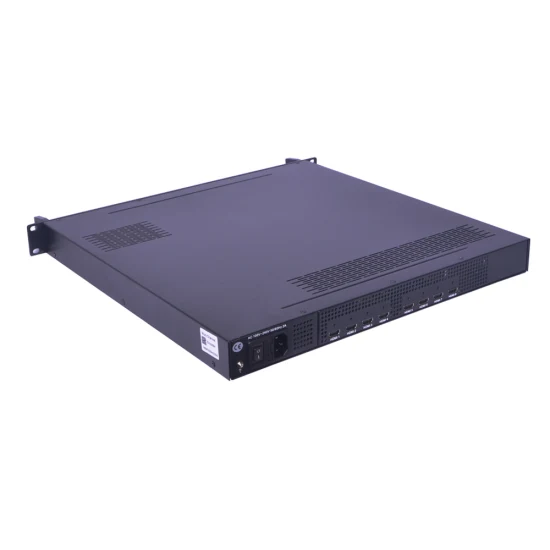

8/12×
HDMI inputs
with 8/12 SPTS and 1 MPTS output
through Data 1 or Data 2
·
16 /20/24×
HDMI inputs
with 16 /20/24 SPTS or 1 MPTS output
through Data 1 or Data 2
·
MPEG4 AVC/H.264 video encoding format
·
MPEG1 Layer II audio encoding format, and audio gain adjustment
·

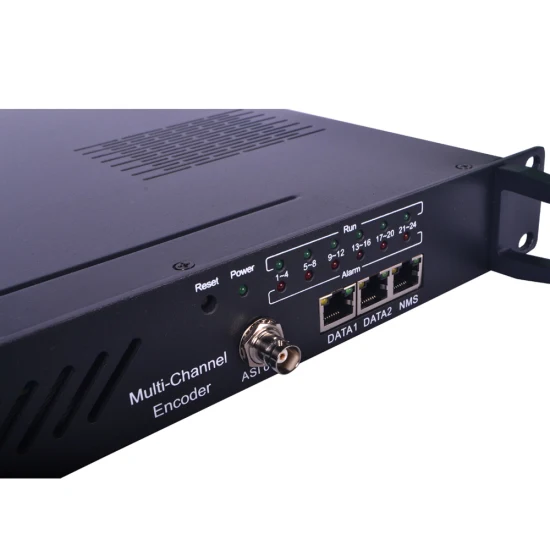

1 ASI output (optional) as copy of MPTS
·
IP output over UDP and RTP protocol
·
Support QR code, LOGO,
caption
insertion
·
Support "Null PKT Filter" function
·
Support
PID Remapping/
PCR accurate adjusting
·
Control
via
web management, and
easy updates via webSpecification
