Softel Fixed 24 Channel CATV Modulator

Preview

Basic Info.Product DescriptionCertifications

Basic Info.

Model NO.	AH2401
Frequency Range	47~860MHz
C/N in-Band	60 dB
C/N out-Band	62 dB
Video Input Connector	RCA
Audio Input Connector	RCA (White)
Output Frequency	47-860MHz
Transport Package	Standard Export Package
Specification	532430cm
Trademark	SOFTEL
Origin	Zhejiang, China
HS Code	8517623400

Product Description

Preview

Softel fixed 24 channel catv modulator

Preview

Description

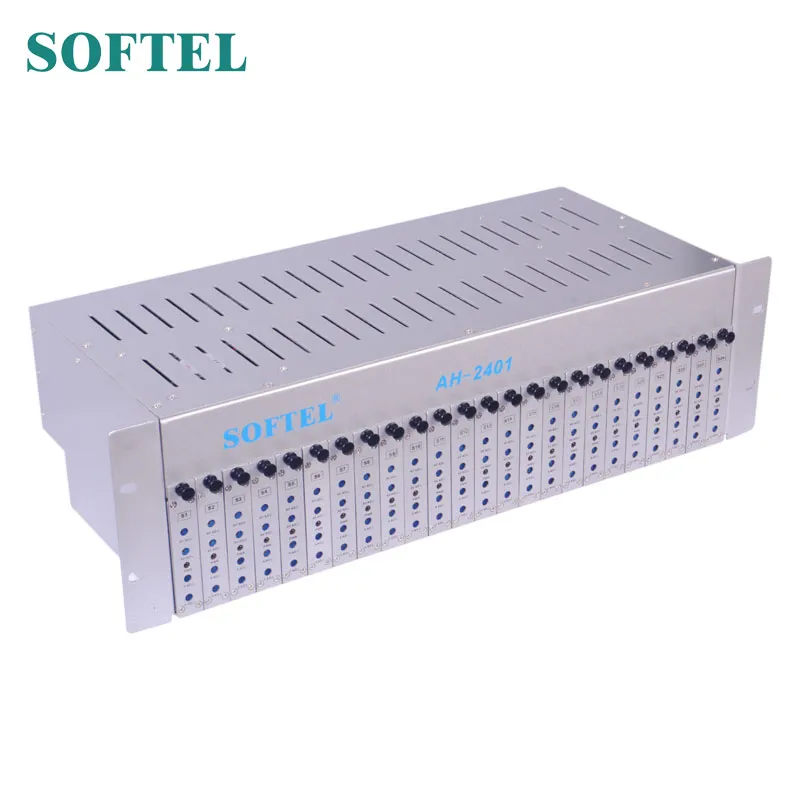

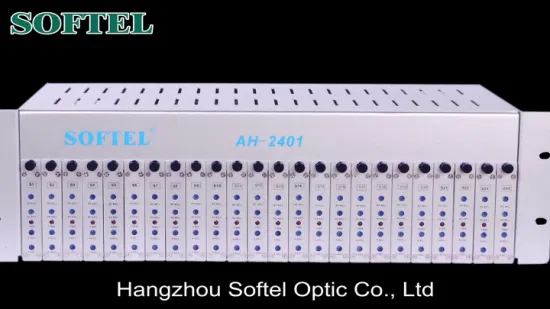

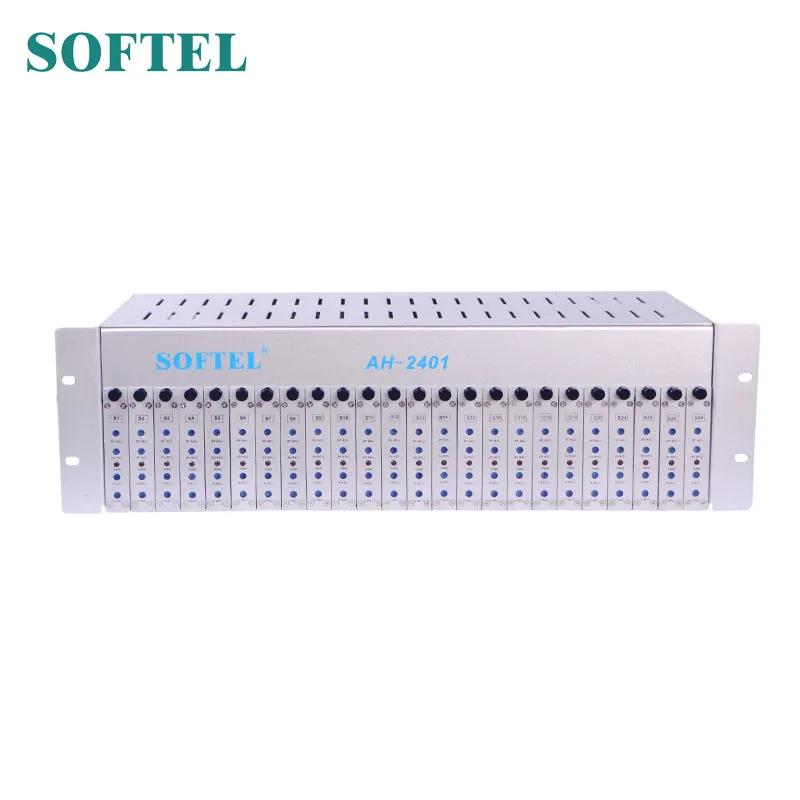

The AH2401is a 3RU rack-mounted chassis that allows for installation of up to 24 pieces
microprocessor-controlled fixed mini-modulators.Built-in active combiner eliminates unnecessary
cabling and potential connection problem and ensures high output level .All modulators are perfect factory set to the desired channel and proper offset.
Features1. Switching power supply for installation flexibility and precise voltage regulation
2. Two cooling fans for long life performance
3. 40dBmV chassis output level,no need extra combiner
4. SAW(surface acoustic wave) filtering on IF for superior in band C/N

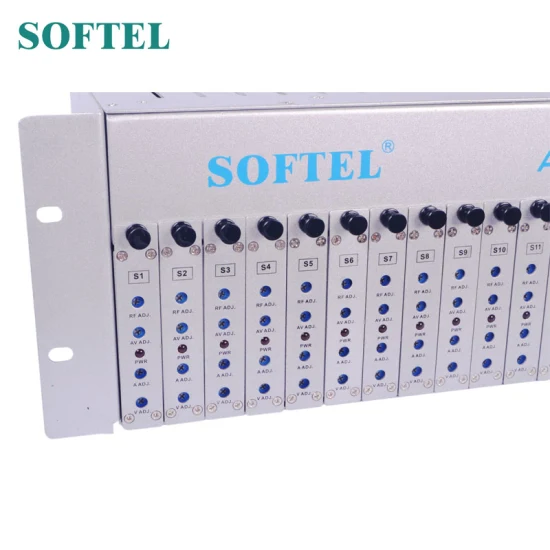

5. Front panel access controls enables easy setup

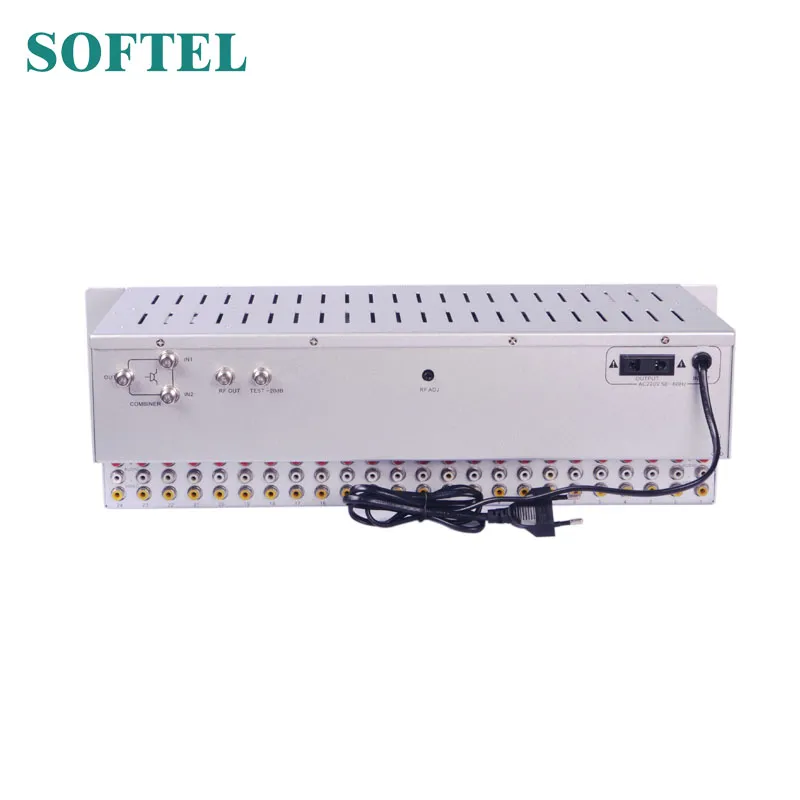

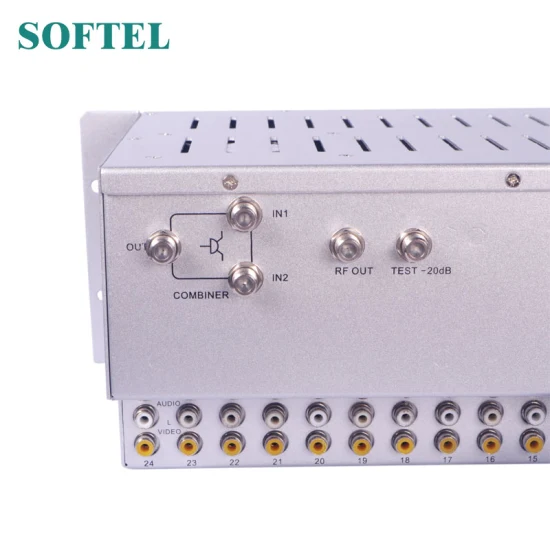

6. Rear panel has a combiner loop for easy connection
7. Stereo function optional
