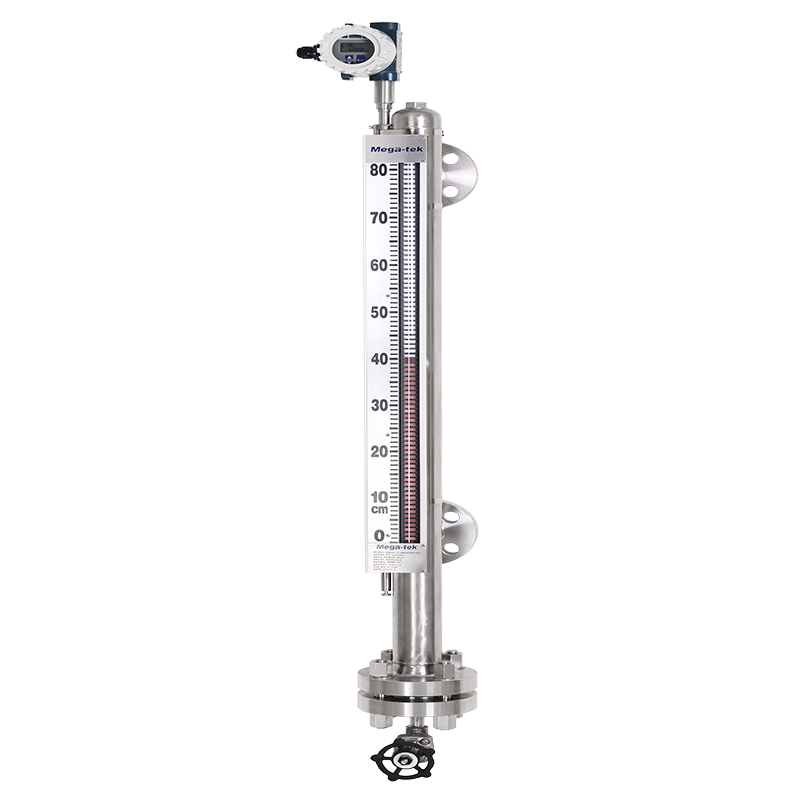

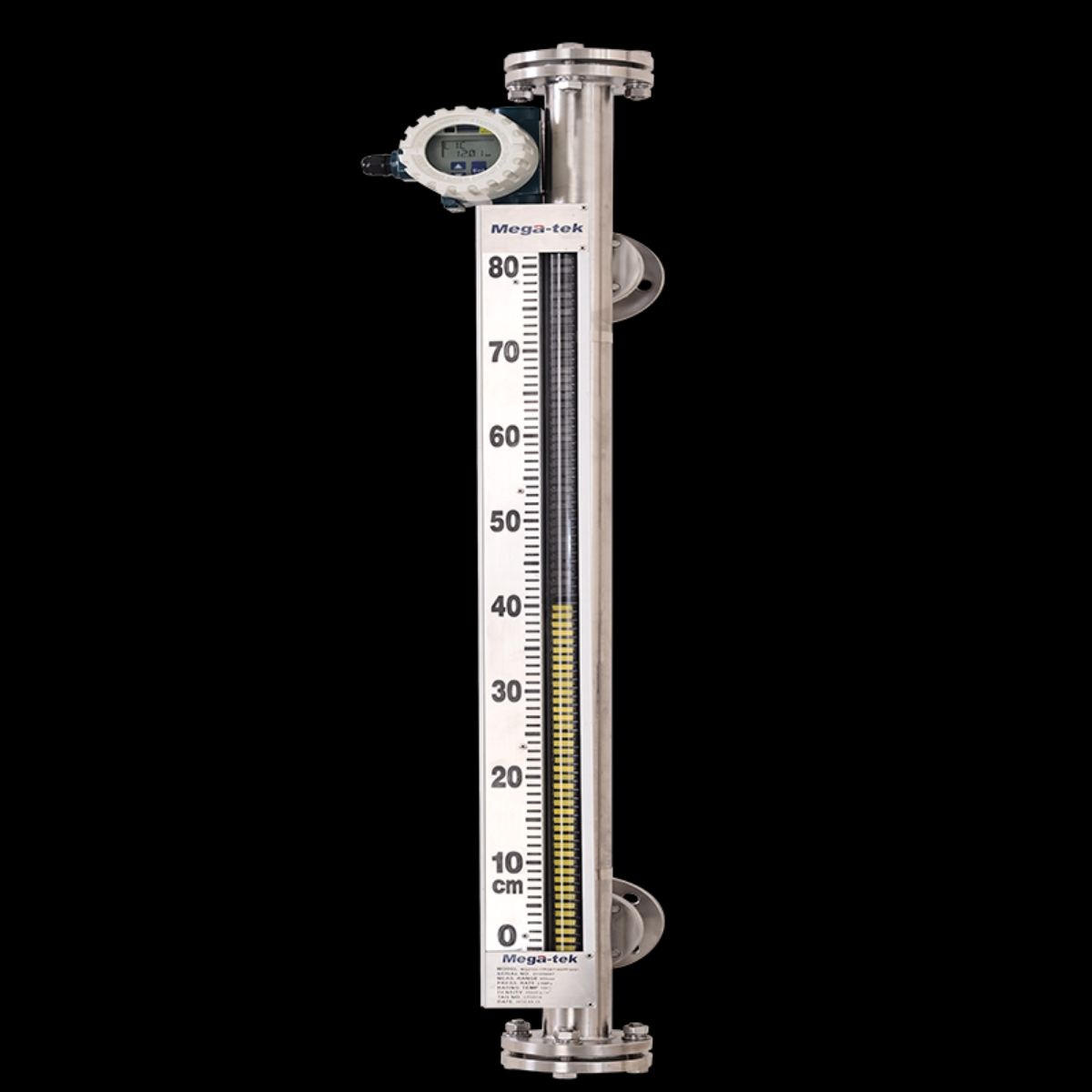

The initial pulse generated by the circuit module is transmitted along the waveguide line and generates a return pulse with the floating ball magnetic field. The circuit module calculates the time difference between the initial pulse and the return pulse. Since the floating ball changes synchronously with the liquid level, the liquid level height can be accurately measured.

1. Piezomagnetic sensing technology, the probe rod can detect the signal even if it is 50mm away from the magnetic steel;
2. The built-in airborne oscilloscope function is convenient for intelligent diagnosis;
3. Special automatic gain control and liquid level following functions process signals to solve the problem of signal loss under fluctuating and interference conditions;
4. The highest resolution exceeds 0.1mm metrology level accuracy, the highest temperature is 538 ° C, the maximum pressure is 42MPa, and the longest measurement range is 25 meters;
5. Customized design to meet various needs of users;
6. Dual-chamber housing integrates remote transmission, local and alarm. It is specially customized to output temperature and level signals at the same time (invention patent);
7. Large screen dot matrix display, simultaneously displaying bar chart, engineering unit, current value, and percentage.

1. Adopt "Maige Core" piezoelectric sensor;
2. High signal to noise ratio and sensitivity;
3. Excellent anti-transient interference function;
4. Automatic gain control and automatic liquid level following functions process signals to solve data jitter caused by liquid level fluctuations or interference;

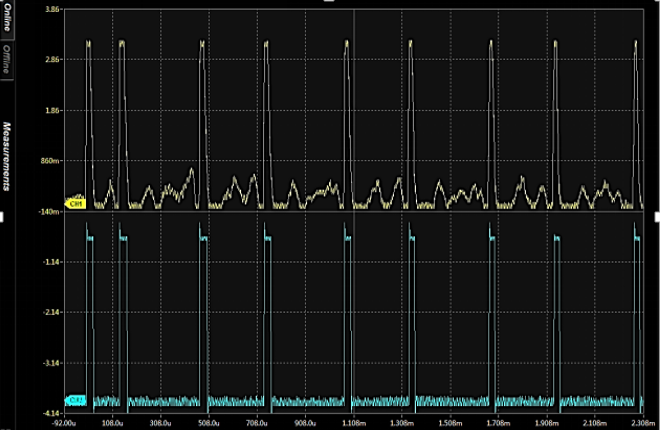

5. The oscilloscope displays the current liquid level height, model gain, threshold voltage and other parameters on the same screen;
6. The threshold voltage and signal gain can be viewed and adjusted under the same screen, and the setting parameters are displayed graphically, making maintenance more convenient.
